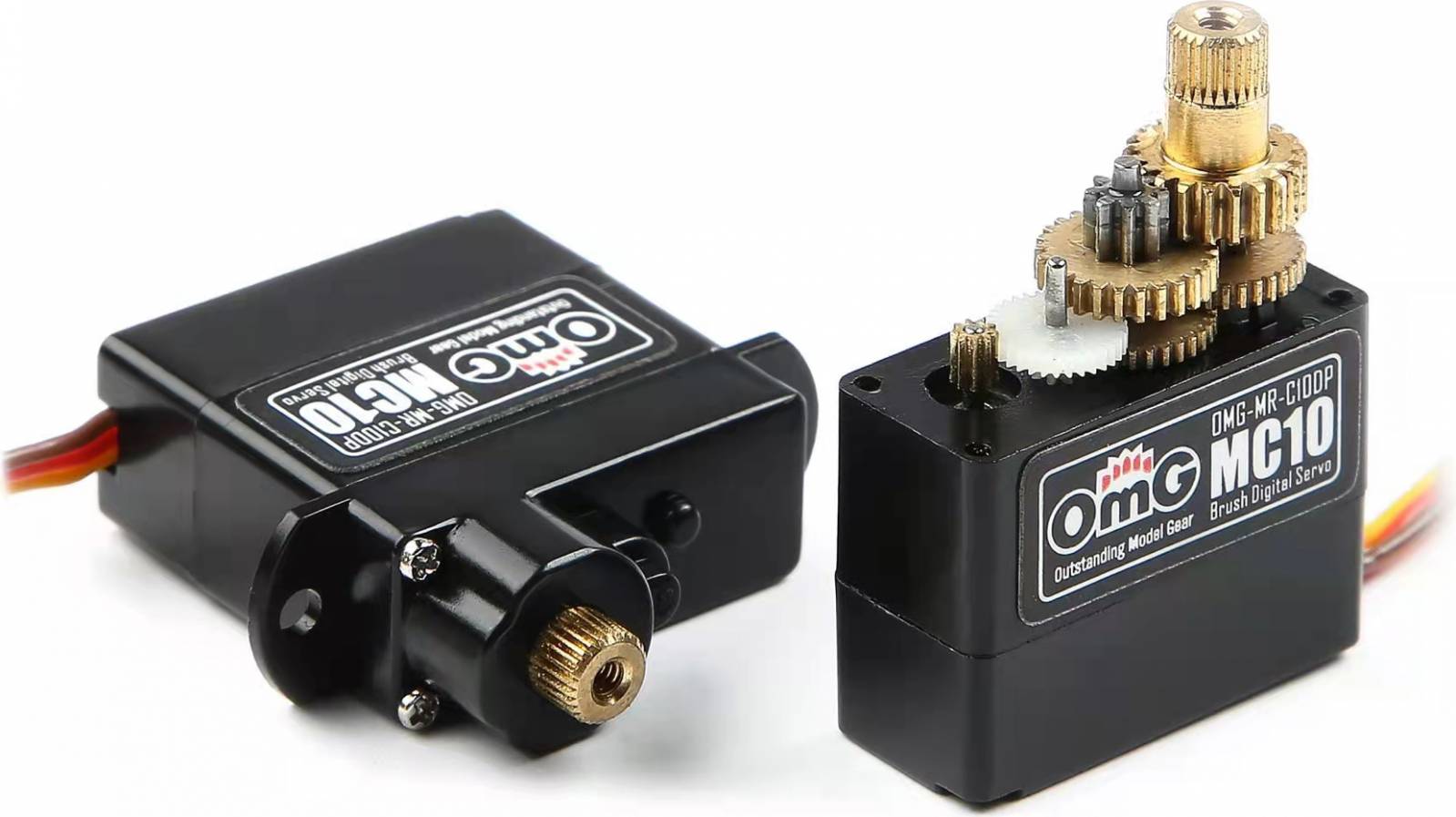

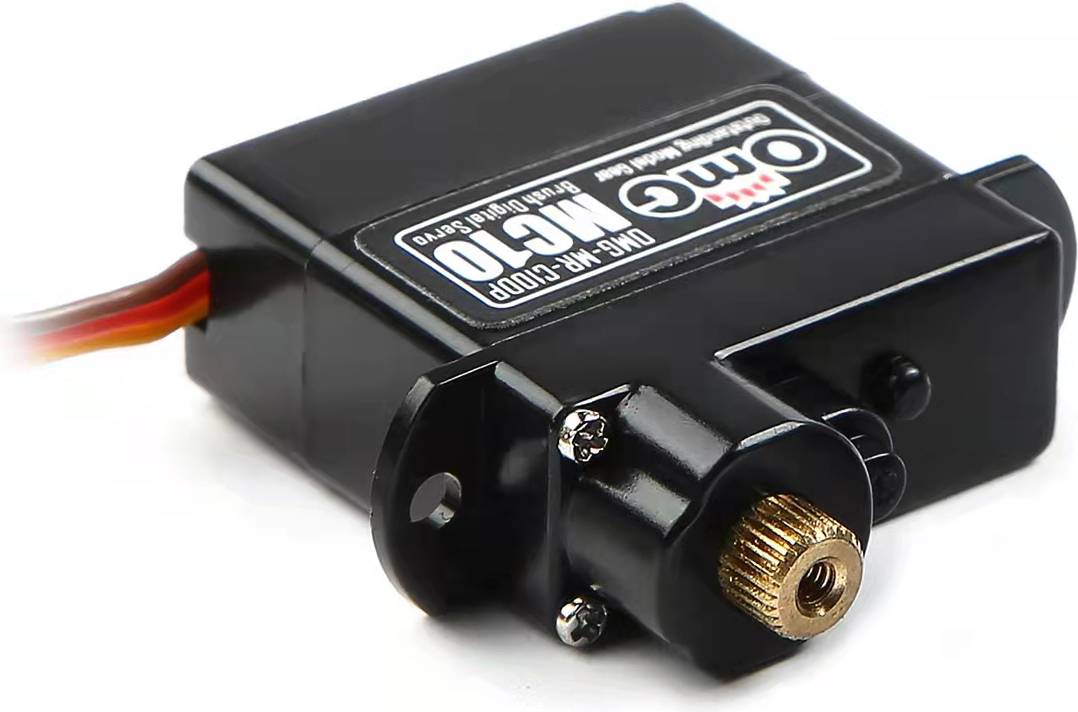

Servo Digital Coreless Micro CG Air/Car
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
Foam plane or Mini-Z Car
Application:
20 Tooth
Output Spline:
20.2 mm
Length:
8.5 mm
Width:
26 mm
Height:
5.8 g
Weight:
Copper
Geartrain:
4.8 - 6.0 v
Voltage Range:
0.6 kg-cm (44 oz-in)
Torque @ 4.8V:
0.07 sec/60°
Speed @ 4.8V:
0.8 kg-cm (53 oz-in)
Torque @ 6.0V:
0.05 sec/60°
Speed @ 6.0V:
FEATURES
Fit for foam plane or the rc car Mini-Z. Full plastic cover, micro copper gear, coreless digital servo, low voltage.
