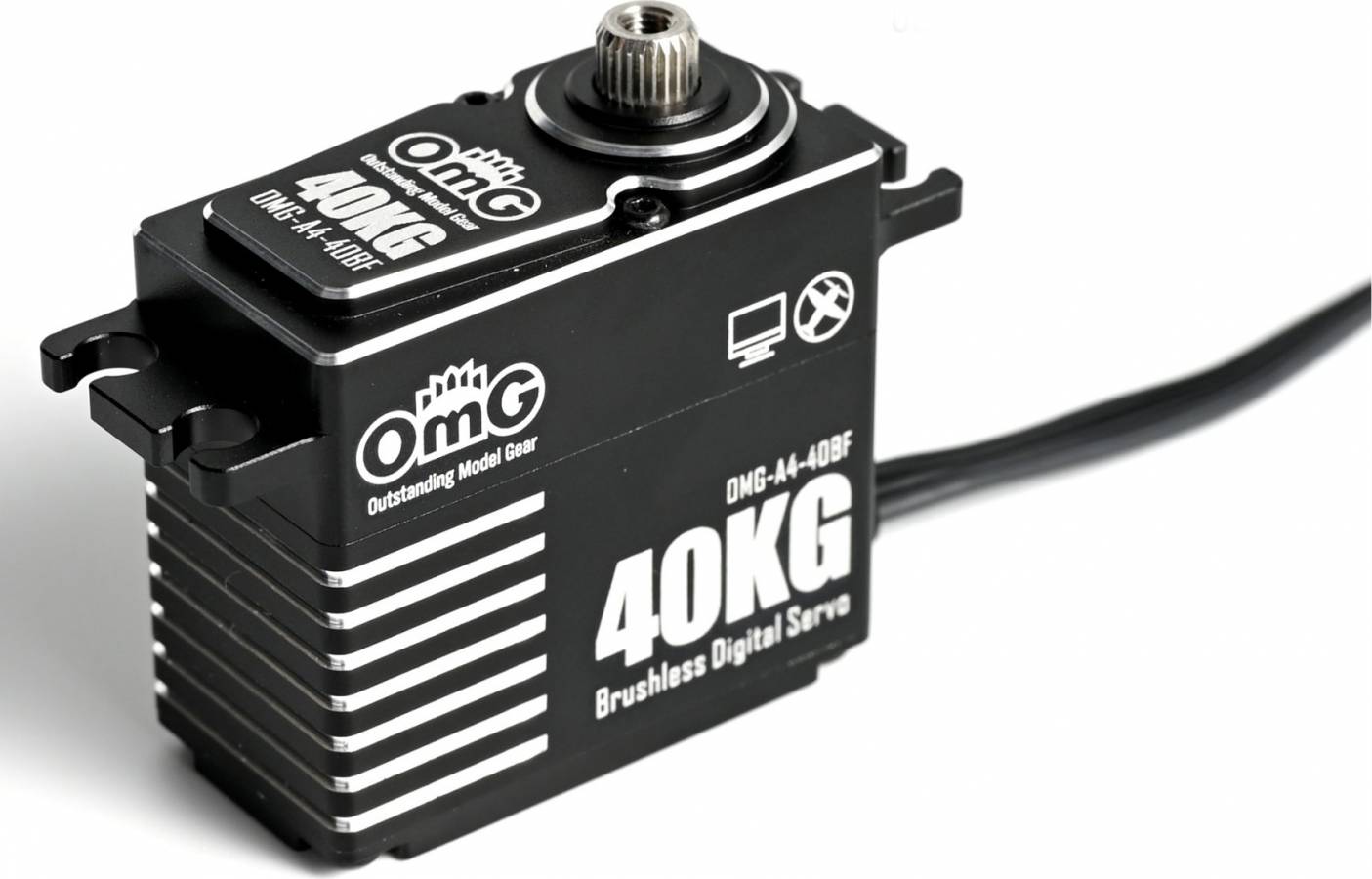

Servo Digital BL Standard SSG 40KG Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Air
Application:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38 mm
Height:
75 g
Weight:
Stainless Steel
Geartrain:
Brushless
Motor Type:
4.8-8.4 v
Voltage Range:
38 kg-cm (528 oz-in)
Torque @ 7.4V:
0.078 sec/60°
Speed @ 7.4V:
40 kg-cm (556oz-in)
Torque @ 8.4V:
0.065 sec/60°
Speed @ 8.4V:
FEATURES
Specially designed for large scale planes, standard size full metal brushless high voltage Digital Servo, full case is CNC for precise engraving, matte cover, full steel gear. Programmable, including sensitivity and angle.
