NGHGT35R

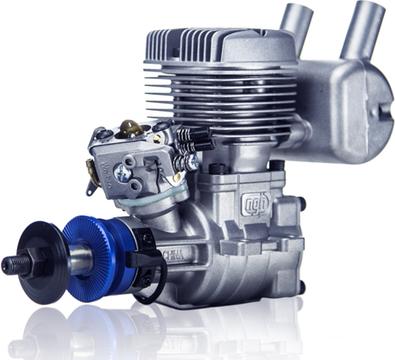

GT35R 2-Cycle 35cc Gasoline Engine

Product Info | Replacement Parts
NGHGT35R
GT35R 2-Cycle 35cc Gasoline Engine
By NGH ENGINES

ON SALE
$329.99 CAD   379.99
Save $50.00 (13%)

FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Gas Aircraft Motors
But only from... NGH ENGINES
All items from... NGH ENGINES


 Inventory Status Legend
StockStock availability for on-line ordering
4
$329.99
Warehouse ?
StockStock availability for pick up
4
$329.99
Warehouse ?
1
$329.99
Store - Stratford ?
1
$329.99
Store - Edmonton ?
1
$329.99
Store - Mississauga ?
1
$329.99
Store - Ottawa ?
1
$329.99
Store - Oshawa ?
1
$329.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Circlip GT35/GT35R/GTT70 (2)
$1.09

Engine Mount Rails Complete Set GF30
$36.99

Woodruff Key 3X5X13mm GT35/GT35R/GTT70/GF30/GF38
$0.99

Cylinder Body Gasket GT35/GT35R/GTT70
$2.99
Piston Ring GT35/GT35R/GTT70
$11.99

Carburetor Gasket GT17/GT25/GT35/GT35R/GTT70/GF30/...
$2.99

Carburetor Thermal Insulator GT17/GT25/GT35/GT35R/...
$2.99

Muffler Gasket GT35/GT35R/GTT70
$2.99
SPECIFICATIONS
34.96 cc
Engine Displacement:
37.3 mm
Bore:
32 mm
Stroke:
1500-8000 RPM
RPM Range:
1390 g
Overall Weight (incl Ign):
1150 g
Engine Weight:
140 g
Muffler Weight:
4.22HP @ 8800rpm
Claimed Power Output:
18x10, 19x8-10, 20x8
Prop Range:
4.8V - 8.4V 1000mAh
Ignition Power (req'd):
93 Octane
Fuel:
Synthetic Lubricant 35:1
Oil:

FEATURES
  • NGH patented double outlet exhaust muffler for smooth exhaust and low sound
  • Matched Walbro front mounted carburetor for reliable operation and simple tuning
  • CNC machined adjustable T-shaped engine mount provides more stable installation and less vibration
  • CNC machined connecting rod with double needle roller bearings
  • RCEXL automatic ignition system specifically made for NGH
  • RCEXL spark plug CM6
  • High-quality bearings

NGH are known for producing high-quality, professional grade 2 & 4-cycle gasoline engines built specifically for RC enthusiasts. Boasting a beautiful appearance, light weight, stable performance and plenty of power!

The GT35 is comparable in size and power to a 1.80 size glow engine and is suitable for RC aircraft with a take-off weight of 8-10kg. Well suited for 1.20-1.80 class aircraft and available in either side exhaust or rear exhaust version to fit your application

*uses a CM6 spark plug
