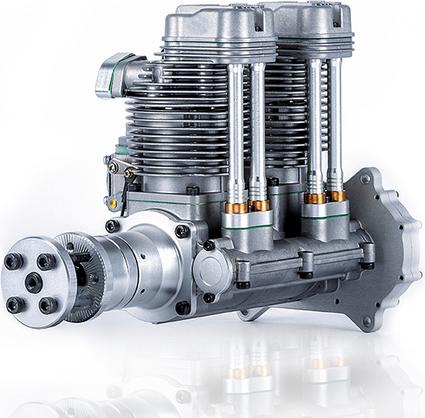

GF60I2 In-Line Twin 4-Cycle 60cc Gasoline Engine
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||
SPECIFICATIONS
59.82 cc
Engine Displacement:
36 mm
Bore:
29.4 mm
Stroke:
1200-7500 RPM
RPM Range:
2800 g
Engine Weight:
6.3HP @ 8000rpm
Claimed Power Output:
20x10 22x8-10 23×8
Prop Range:
93 Octane
Fuel:
Synthetic Lubricant 35:1
Oil:
4.8V - 8.4V 1000mAh
Ignition Power (req'd):
2940 g
Overall Weight (incl Ign):
FEATURES
- Ultra high stability, large torque output, ultra low vibration
- Low fuel consumption, low noise, high wear resistance, high power to weight ratio
- Suitable for long-endurance UAV and RC aircraft
- Universal exhaust silencer for NGH, smooth exhaust and low sound
- Matched Walbro carburetor for reliable running and convenient installation
- Precision forged connecting rod with needle bearing
- RCEXL Ignition with automatic advancing system, especially made for NGH
- RCEXL CM6 spark plugs
- High-quality bearings
NGH are known for producing high-quality, professional grade 2 & 4-cycle gasoline engines built specifically for RC enthusiasts. Boasting a beautiful appearance, light weight, stable performance and plenty of power!
The GF60i2 4-cycle engine features a unique in-line twin cylinder configuration. With a power output comparable to 50cc 2-cycle engines the GF60i2 powers model aircraft weighing 12-16kg.

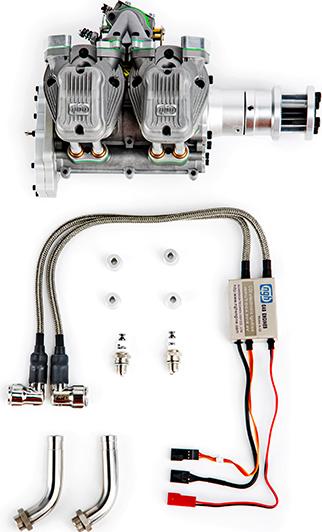

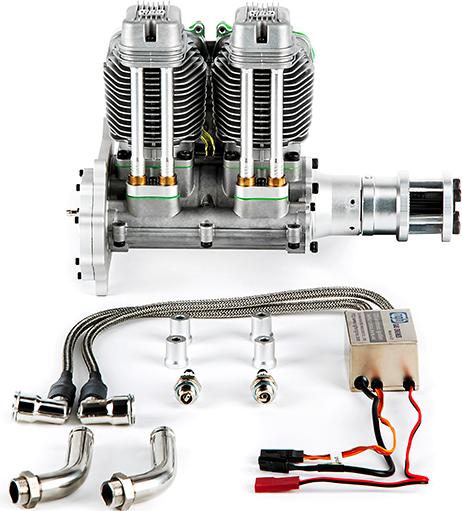

click image to enlarge
ADDITIONAL PHOTOS|
|
|
|
|
PRODUCT RESOURCES
GF60i2
