NGHGF30

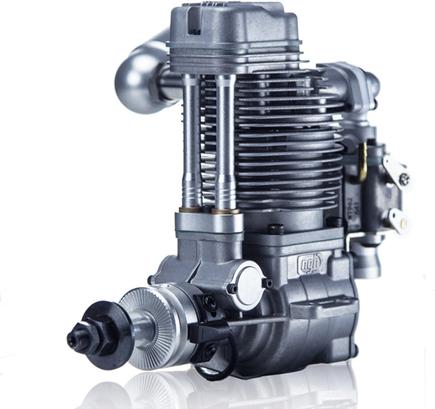

GF30 4-Cycle 30cc Gasoline Engine

Product Info | Replacement Parts
NGHGF30
GF30 4-Cycle 30cc Gasoline Engine
By NGH ENGINES
$559.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Gas Aircraft Motors
But only from... NGH ENGINES
All items from... NGH ENGINES


 Inventory Status Legend
StockStock availability for on-line ordering
1
$559.99
Warehouse ?
StockStock availability for pick up
1
$559.99
Warehouse ?
0
$559.99
Store - Stratford ?
1
$559.99
Store - Edmonton ?
1
$559.99
Store - Mississauga ?
1
$559.99
Store - Ottawa ?
1
$559.99
Store - Oshawa ?
1
$559.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Engine Mount Rails Complete Set GF30
$36.99

Woodruff Key 3X5X13mm GT35/GT35R/GTT70/GF30/GF38
$0.99

Ball Bearing 605 5x14x5mm GF30/GF38 (2)
$4.99

Carburetor Gasket GT17/GT25/GT35/GT35R/GTT70/GF30/...
$2.99
Carburetor Thermal Insulator GT17/GT25/GT35/GT35R/...
$2.99

Cylinder Gasket GF60i2/GF30 (2)
$1.09

Ignition Sensor GT9/GT17/GT25/GT35/GT35R/GF30/GF38
$15.99

Rocker Cover Gasket GF30
$1.69
SPECIFICATIONS
29.91 cc
Engine Displacement:
36 mm
Bore:
29.4 mm
Stroke:
1600-8500 RPM
RPM Range:
1365 g
Overall Weight (incl Ign):
1160 g
Engine Weight:
2.68HP @ 9000rpm
Claimed Power Output:
15x10, 16x8-10, 17x6-10
Prop Range:
4.8V - 8.4V 1000mAh
Ignition Power (req'd):
93 Octane
Fuel:
Synthetic Lubricant 35:1
oil:

FEATURES
  • NGH directional exhaust muffler for low noise
  • Walbro carburetor for reliable running and easy tuning
  • CNC machined adjustable T-shape engine mount for solid engine installation with less vibration
  • CNC machined connecting rod with double needle roller bearing
  • Double nut locking output shaft
  • RCEXL Ignition with automatic timing advance system, especially made for NGH
  • RCEXL spark plug CM6
  • High-quality bearings

NGH are known for producing high-quality, professional grade 2 & 4-cycle gasoline engines built specifically for RC enthusiasts.  Boasting a beautiful appearance, light weight, stable performance and plenty of power!

The GF30 4-stroke gasoline engine is a purpose built engine for model aircraft enthusiasts.  Offering high performance, low fuel consumption, high torque and low noise, the GF30 is well suited to 1.20-1.80 size 4-stroke glow engine powered aircraft weighing 6-10kg.

Uses a common CM6 spark plug and it is equipped with a universal muffler for a smooth, deeper exhaust note. The included CNC machined and anodized adjustable-length T-type engine mount makes installation more stable with less vibration.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
