QAV250 Fury Power Distribution Board
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
But only from... LUMENIER
All items from... LUMENIER
Special Blue Dot Clearance
Please note: This item is currently in our Blue Dot Clearance Sale and the special price shown is only valid for the quantity available in any given location, on a first come first serve basis. Returns are not accepted. Back orders will not be accepted at clearance pricing. The quantity shown is approximate only as it does not reflect any quantities that may be in process with other customer orders. We apologize to those customers who may miss out and thank you for your understanding.
- Built to reduce clutter and make setup easy
- Direct replacement of original QAV250 PDB
- Speed controllers connect directly to the board - power and control!
- Only two wire harnesses needed when using OpenPilot and two for FPV equipment
- Power configuration jumpers to setup on-board power routing
- Additional capacitors to stabilize ESC sync.
- Optional TBS CORE module for separate voltage regulation and OSD read-outs
- On-board 50A current sensor
- BEC power filtered and load-balanced - connect multiple BECs in parallel
- Filtered video transmitter and camera power, in addition to CORE filtering
- LED indicators shows status of BEC and battery power
- Multiple auxiliary pads for for VTx, camera, beepers, alarms, etc.
- Provides good RF shielding for noise isolation

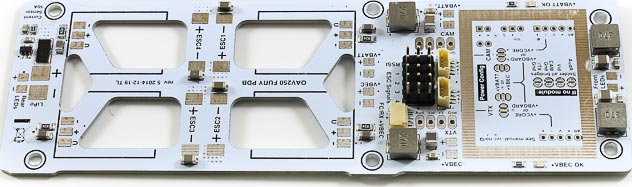

Looking for a QAV250 Power Distribution Board (PDB) to get an integrated FPV setup and simple R/C wiring? This board, nicknamed "FURY", provides upgraded power distribution with current sensing, filtered power to the A/V equipment and option to install a TBS CORE module, while also adding rigidity to the airframe.
The ESCs are soldered to the the board (all wires), making the board layout very tidy and modular. It is designed with the OpenPilot flight controller in mind, requiring only two cables to install the flight system and another two cables (included) to finish the FPV system.
In front of the board is a spot to install an optional TBS CORE module. This provides separation between the FPV system and R/C flight system - which is known to produce noise and cause video interference. It also provides a simple and very handy OSD (On-Screen Display) to read battery consumption, voltage and receiver signal strength. The board can also be set up to work stand-alone (without CORE).
The camera and video transmitter plugs easily into the sockets with the provided cables, there are also solder pads to connect wires directly. Several auxiliary power ports make it easy to hook-up alarms, beepers, video transmitters, etc.
It is made of the same high strength fiberglass-reinforced epoxy laminate as the stock PDB. All the components are protected inside the "cavity" on the QAV250 platform. Two additional mounting holes in the front gives extra rigidity.

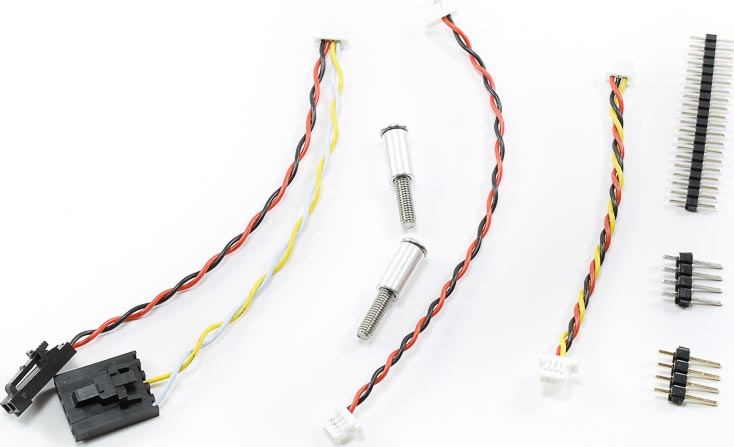

INCLUDES:
1x QAV250 "FURY" PDB Board
1x OpenPilot Power Cable
1x Sony Board Camera Cable
1x ImmersionRC VTX Cable
2x Pin Headers 2.54mm for VTX/CAM
1x Pin Header 2mm for TBS CORE
|
|
|
|
|
|||||||||||||||||||||||||||||||
