LUM1659

FXC2206-11 2350kv Brushless Motor QAV250

Product Info
LUMENIER

LUM1659
FXC2206-11 2350kv Brushless Motor QAV250
By LUMENIER
$54.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Mutlirotor Motors
But only from... LUMENIER
All items from... LUMENIER

Special Blue Dot Clearance

Please note: This item is currently in our Blue Dot Clearance Sale and the special price shown is only valid for the quantity available in any given location, on a first come first serve basis. Returns are not accepted. Back orders will not be accepted at clearance pricing. The quantity shown is approximate only as it does not reflect any quantities that may be in process with other customer orders. We apologize to those customers who may miss out and thank you for your understanding.
Click for more deals...

 Inventory Status Legend
StockStock availability for on-line ordering
2
$54.99
Warehouse ?
StockStock availability for pick up
2
$54.99
Warehouse ?
0
$54.99
Store - Stratford ?
0
$54.99
Store - Edmonton ?
0
$54.99
Store - Mississauga ?
0
$54.99
Store - Ottawa ?
0
$54.99
Store - Oshawa ?
0
$54.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
FEATURES

This Lumenier multi-rotor motor produces silky smooth performance with strong thrust at a great value. Perfect for spinning a 5" prop on the QAV250 and similar mini quads, giving you very high performance on 3s.

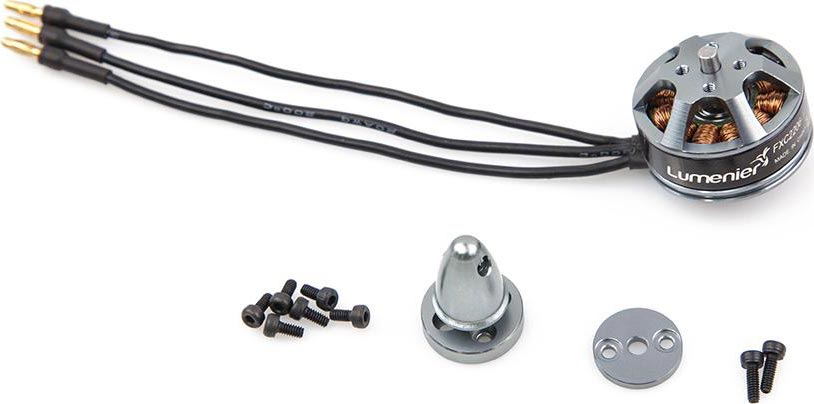

The motor comes with a detachable 5mm diameter prop adapter with a spinner and mounting screws as well as mounting hardware for carbon fiber props.

Rated for use with 2-3S LiPo. Comes with 100mm long motor wires and male 2mm bullet connectors. This motor uses the high quality parts and bearings.

KV: 2350
Configuration: 12N14P
Stator Diameter: 22mm
Stator Length: 6m
Shaft Diameter: 3mm

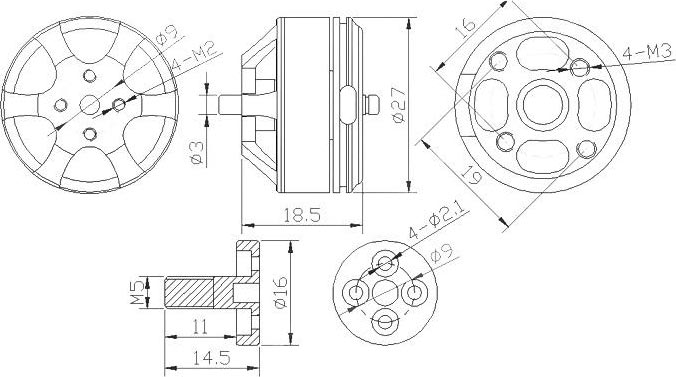

Motor Dimension (Diameter x Length): Φ27×18.5mm
Weight(g): 30g (without prop adapter)
ldle current(10)@10v(A): 0.3
No.of Cells(Lipo): 2-3S
Max Continuous current(A)180S: 18A (tested on 7" prop) ~8A on a 5x3" prop
Max Continuous Power(W)180S: 180W
Max. efficiency current: (2-5A)>80%
Internal resistance: 82mΩ

click image to enlarge
