DSMP/X/2 DIY Module for Legacy Transmitter
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Radio System Accessories, Aircraft Receivers
But only from... LEMON RX
All items from... LEMON RX
But only from... LEMON RX
All items from... LEMON RX
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
FEATURES

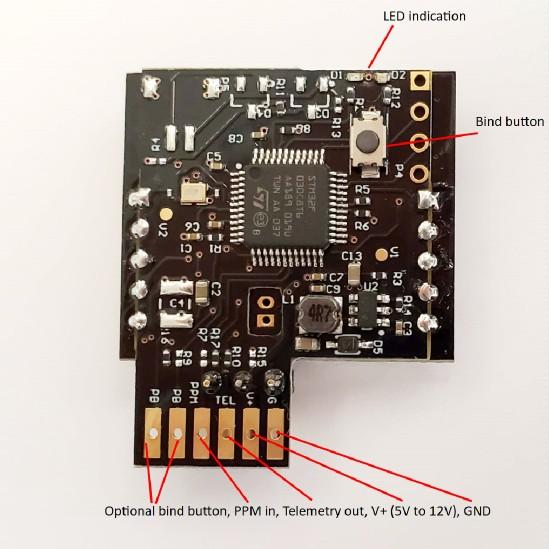

The Lemon Rx DIY module is an electronic kit that addresses the need for RC modeler in legacy transmitter conversion. The module is designed to work with Lemon Rx or Spektrum-compataible aircraft receiver (not compatible with Spektrum surface receiver). The firmware is specifically designed to restore the original PPM waveform on Lemon Rx or Spektrum™ receiver. The module accepts 5V to 12V as supply input while accepting PPM signal from 3V to 12V with auto detection on PPM signal polarity. The module accepts high tolerance of PPM signal found in some legacy transmitter while accepting a minimum of 2 channels and up.
click image to enlarge
ADDITIONAL PHOTOS
|
|
