SPECIFICATIONS
55 mm
Length:
15 mm
Width:
23 mm
Height:
7 Channels
Channels:
DSMP
Modulation:
3.9 to 8.5 (2S LiPo capable) V
Voltage Range:
FEATURES
DSMX / DSM2 compatible, 7-channel full-range telemetry stabilizer with full telemetry features including a built-in barometer, altimeter, energy meter (Current, Voltage, mAh), and internal temperature sensor
High sensitivity gyro with proprietary stabilization algorithm ensures responsive airplane control for both electric and gasoline engine application
BEC1 and BEC2 dual inputs allow high-reliability operation while improving setup for high current drain performance servo
Built-in Detla, V-tail and Normal Wing mixer
Supports stabilization with separated channel dual aileron operation
Stabilization always-on feature
Real-time variable stabilization gain control on channel 8
All-channel failsafe
Firmware health monitoring software stack and ultra-low operational voltage (3.6V) ensure the highest hardware reliability
Generation 2 SDR stack ensures the fastest channel searching and advanced algorithm for signal recovery with ultra-low-latency experience
Antenna diversity improves the reliability of the wireless link
Satellite port for additional signal diversity
Gyro stabilization activation with either AUX2 or Gear channel
3 potentiometers for individual gain tuning

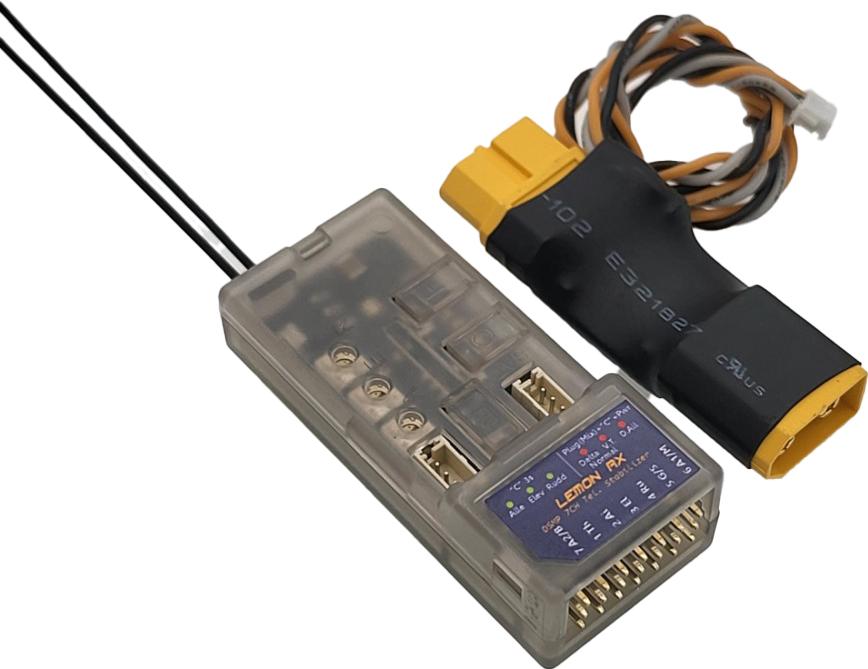

The generation 2 DSMP 7-channel telemetry stabilizer is a complete redesign that provides the ultimate reliability, features and performance.
