DSMP/X DSMX Compatible 7-Ch FR Tele/Div Rx w/DEAN Current Package
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Radio System Accessories, Aircraft Receivers
But only from... LEMON RX
All items from... LEMON RX
But only from... LEMON RX
All items from... LEMON RX
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Lemon Rx DSMP (DSMX compatible) 7-Channel Full-Range Telemetry with diversity receiver (Energy Meter
Type:
44 in
Length:
24 in
Width:
15 in
Height:
9.56 g
Weight:
7 Channels
Channels:
DSMX
Modulation:
2.4 GHz
Band:
4.5-8.5 V
Voltage Range:
FEATURES
- Function and performance are identicial to LM0052 except with the absent of barometric sensor (altitude and vario information is not available on LM0051)
- True full-range diversity telemetry provides plane information in real-time as far as you can fly your plane with any DSMX or DSM2 compatible transmitter

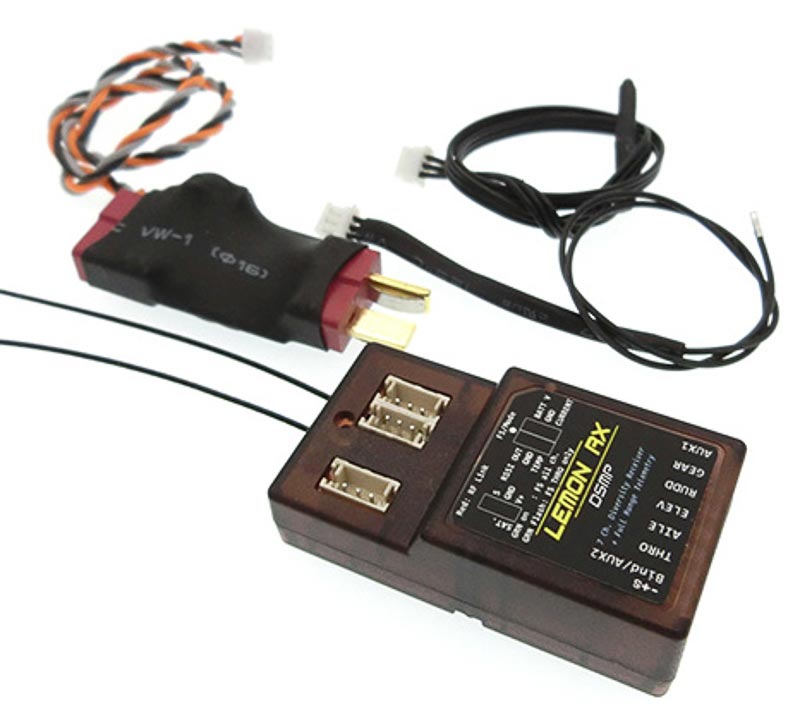

- Energy metering system (mAh, V, Current) are included with the provided V/I sensing unit
- 2-stage failsafe best suited for gasoline / electric application (Selectable failsafe for pre-defined position as throttle only or all channel failafe in the event of signal absence)
- Diveristy extended antenna receiver with state-of-the-art RF circuit providing umatched performance of reception
- Real time RSSI output as analog voltage / displayed on transmitter A parameter
- Glider may use the inlcuded wiring for battery voltage sensing only if energy metering system is not required for absolute weight reduction
- Optional diversity satellite maybe used to provide total of 4 receiving antennas
As a cost down version of LM0052 for those pilots who don't require altitude and vario information, LM0051 comes with energy meter (mAh, V, Current), temperature, RSSI and just about every major telemetry parameter in one tiny package. LM0051 is the world smallest, true full-range telemetry system with build-in sensors along with diversity receiver shrinked in the smallest possible package.
