KYO30635

1/12 Fantom EP 4WD Kit SGL

Product Info | Replacement Parts | Optional Items
KYOSHO

KYO30635
1/12 Fantom EP 4WD Kit SGL
By KYOSHO
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 2WD Pan Car Kits
But only from... KYOSHO
All items from... KYOSHO


 Inventory Status Legend
StockStock availability for on-line ordering
0
$329.99
Warehouse ?
StockStock availability for pick up
0
$329.99
Warehouse ?
0
$329.99
Store - Stratford ?
0
$329.99
Store - Edmonton ?
0
$329.99
Store - Mississauga ?
0
$329.99
Store - Ottawa ?
0
$329.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
LE Mans 240S ESC 60A/Max 13.5T W/C Cable
$149.99

Nut (M3X3.3mm) Nylon (5)
$5.99

Shield Bearing (5x8x2.5) (4)
$21.99

EP Starter Pack Plus
$179.99
Snap Pin 1/10 Body Clips (10)
$4.99

LE MANS 480 Gold Brushless Motor 21.5T
$179.99

Syncro 2.4GHz TX/RX Set
$109.99

Shield Bearing 5x10x4mm (4)
$19.99
SPECIFICATIONS
345 mm
Length:
172 mm
Width:
83 mm
Height:
4WD
Drivetrain:
2-channel
Radio Requirements:
Steering Servo
Servo Requirements:
2-channel
Receiver Requirements:
540 class
Motor Requirements (brushed):
To suit motor
ESC Requirements:

FEATURES

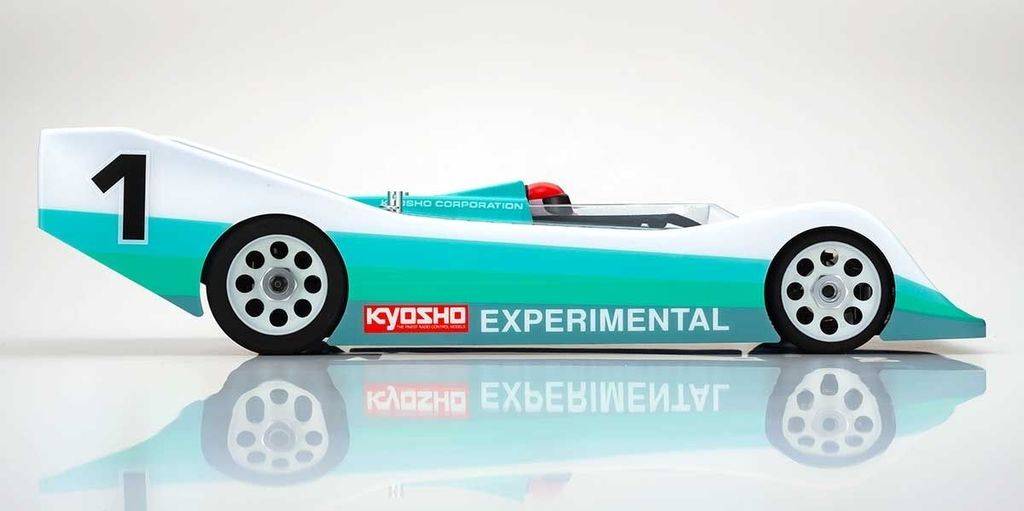

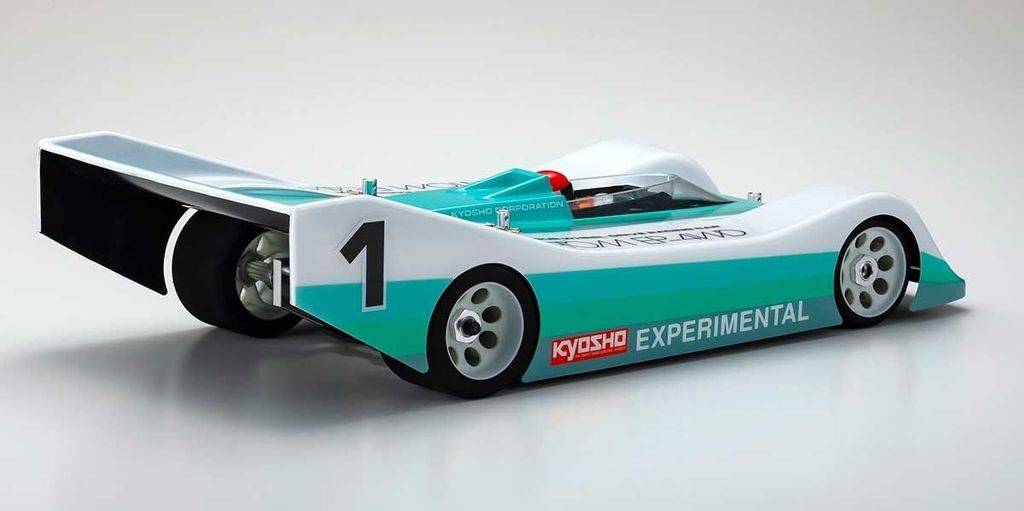

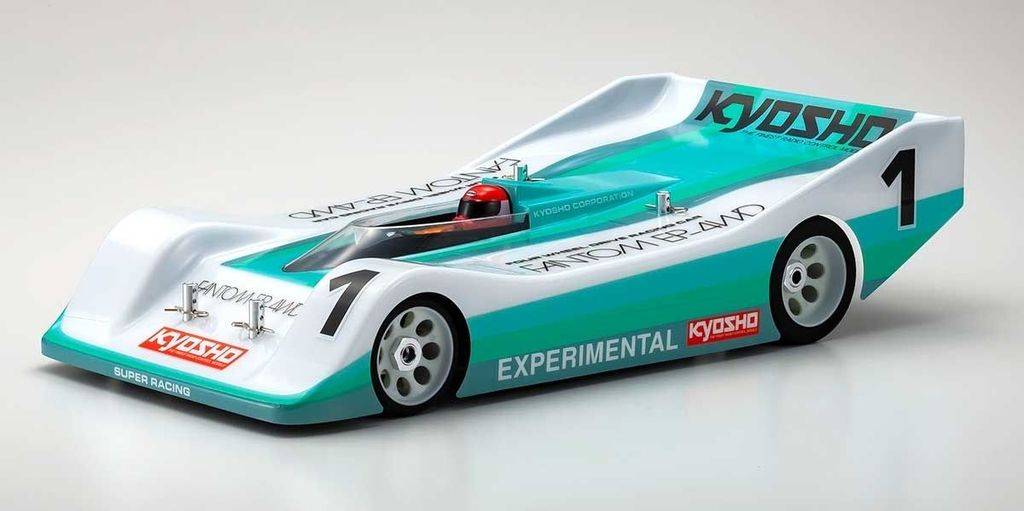

 The king of 1/12 electric racing returns…with its captivating avant-garde design!

In august 1983, a mere six months after its debut, a new Kyosho machine blew its more established rivals away at the 5th JMRCA 1/12 Electric Racing Car Japan Nationals, held at a specially built track at Nakayama Racecourse Chiba Prefecture. RC on-road racing was changed for a generation by the 1/8 FANTOM 20 EXP 4WD engine racing car, and its bloodlines ran strong in the FANTOM EP 4WD. The FANTOM EP 4WD revives its glory days as the first on-road racing model and 9th addition to the Kyosho Vintage Series!

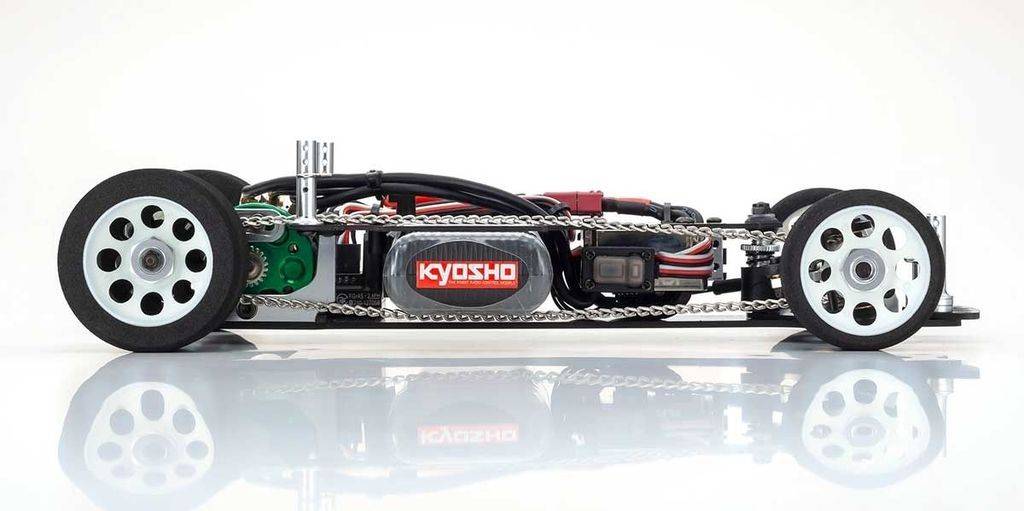

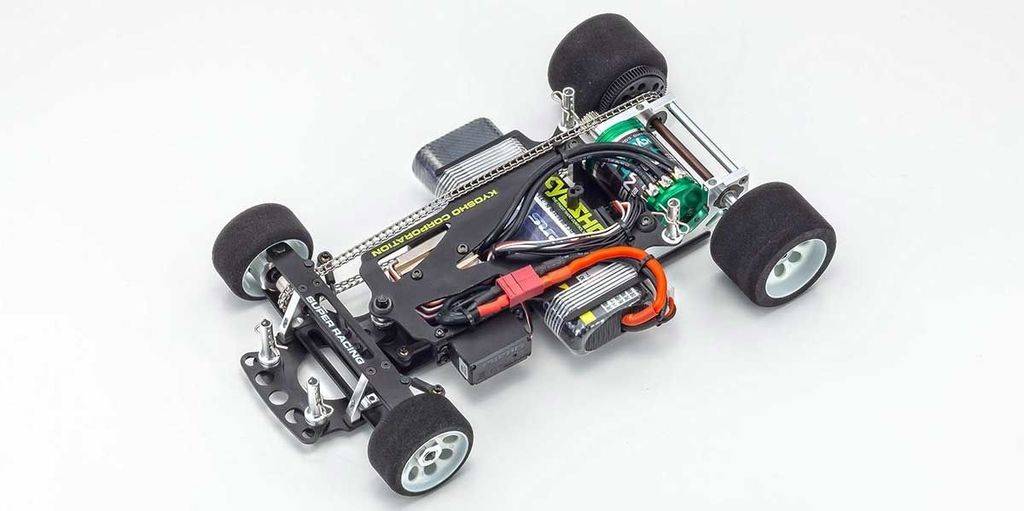

The 1/12 on-road racing scene of the time featured a variety of designs such as 3-point suspension and 4-wheel independent suspension, the 4WD ladder-chain drive + front one-way bearing system that normally didn’t produce front drive but drove the inside wheel when power was applied through turns for stable cornering and minimal drive loss. The FANTOM EP 4WD pioneered specs such as the FRP chassis that created a suspension effect that delivered optimal weight balance on the inside wheel. The 2020 version model not only recreates the look and feel of the original, but also maintains the superior cornering speed and stability, even on low grip surfaces, with its part-time 4WD and front one way. As with all Vintage Series models, each key component is consistent with the original design but has been improved to handle the latest power sources and deliver the FANTOM’s distinctive sharp handling and control on modern RC circuits.
Experience high-performance driving with the nostalgic avant-garde design and functional beauty of the 1/12 scale FANTOM EP 4WD!

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
