KYO30616B

Legendary Series Turbo Scorpion 1/10 2WD Electric Buggy

Product Info | Replacement Parts | Optional Items
KYOSHO

KYO30616B

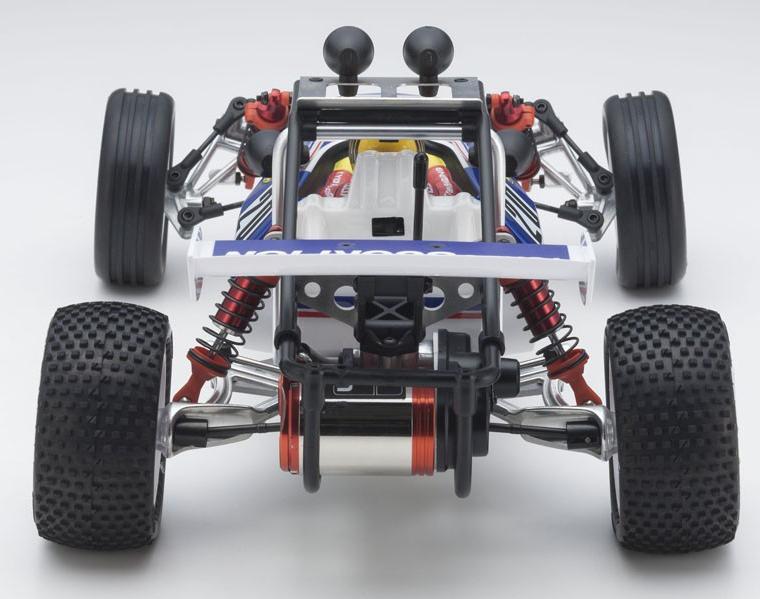

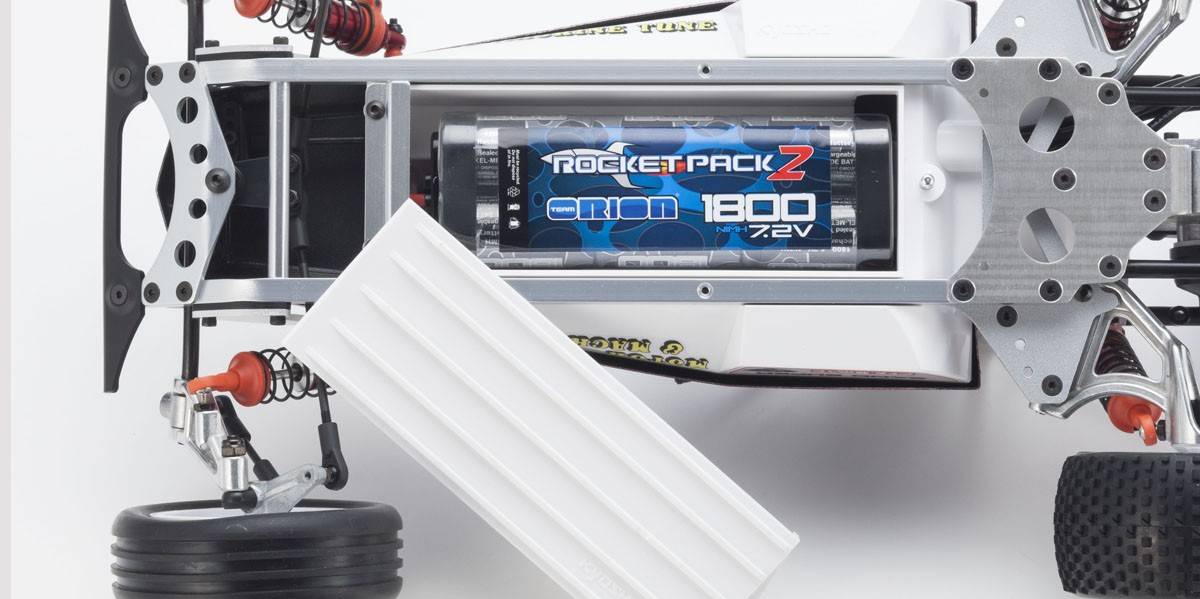

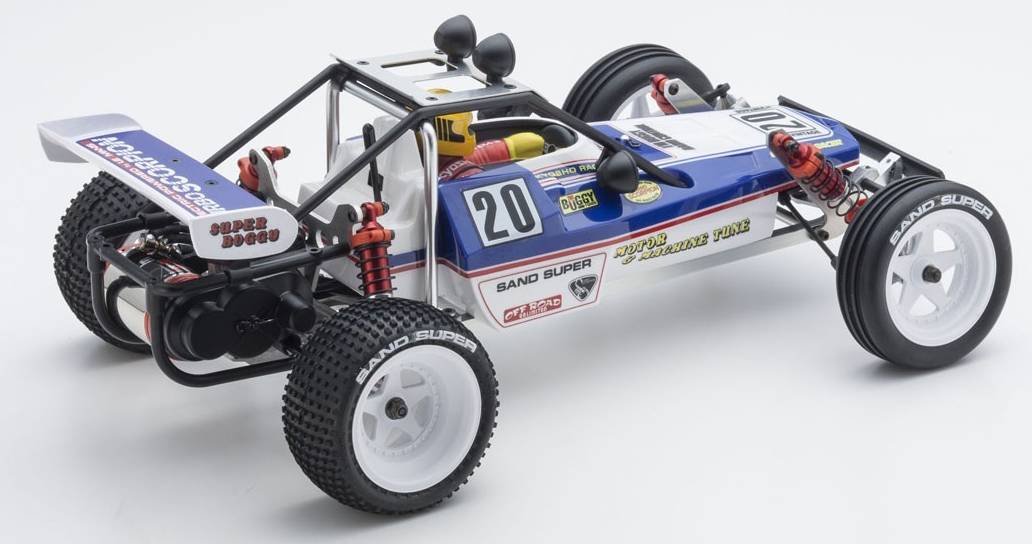

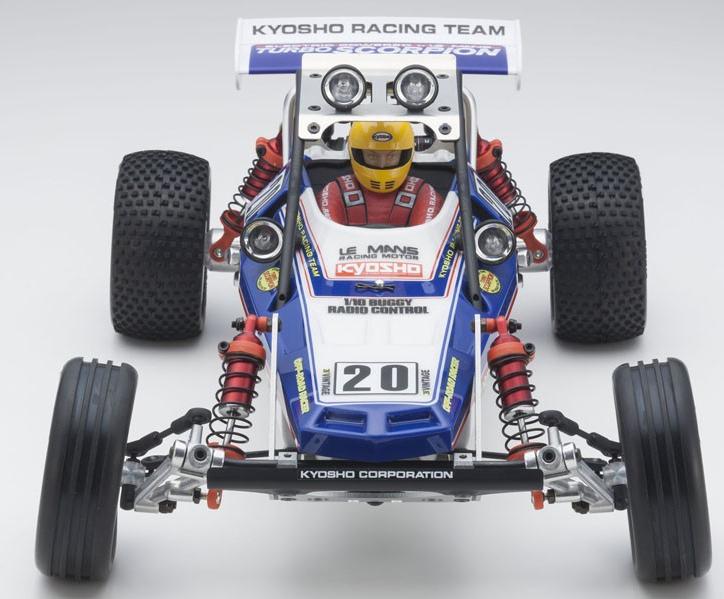

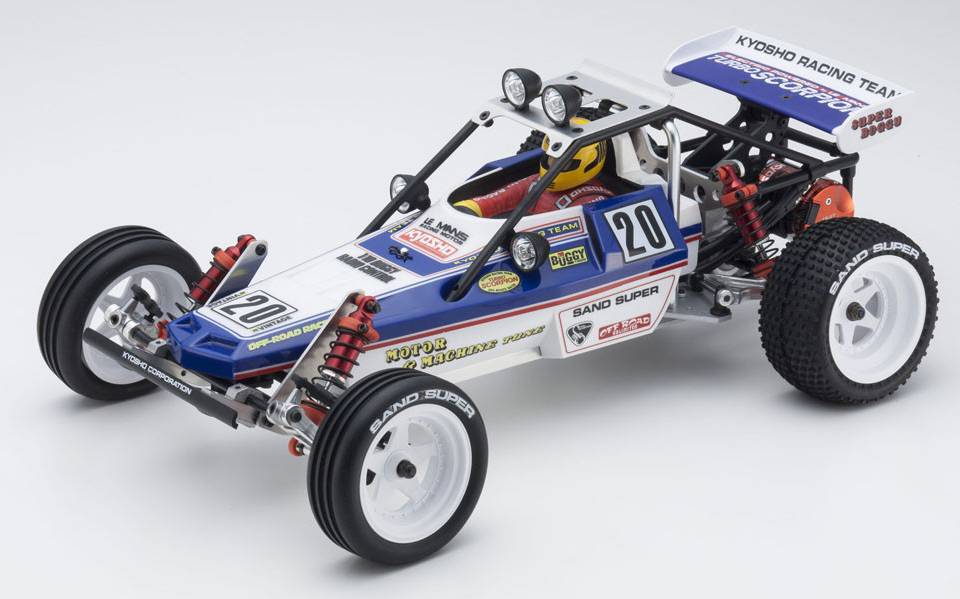

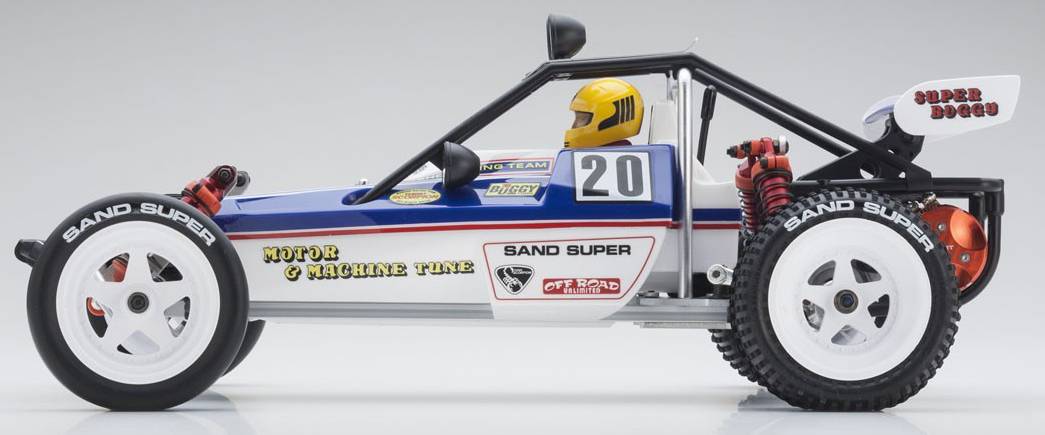

Legendary Series Turbo Scorpion 1/10 2WD Electric Buggy
By KYOSHO
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Buggy Kits
But only from... KYOSHO
All items from... KYOSHO


 Inventory Status Legend
StockStock availability for on-line ordering
0
$399.99
Warehouse ?
StockStock availability for pick up
0
$399.99
Warehouse ?
0
$399.99
Store - Stratford ?
0
$399.99
Store - Edmonton ?
0
$399.99
Store - Mississauga ?
0
$399.99
Store - Ottawa ?
0
$399.99
Store - Oshawa ?
0
$399.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Le Mans Motor (Brushed 30 Turn)
$79.99

Shield Bearing 5x10x4mm (4)
$19.99

Ball End 5.8mm/Hard (12)
$14.99

Diff Shaft ((2)/Ultima SC)
$14.99
SPECIFICATIONS
408 mm
Length:
256 mm
Width:
145 mm
Height:
1500 g
Weight:
273 mm
Wheelbase:
Rear Wheel Drive
Drivetrain:
2-Channel
Radio Requirements:
Steering Servo
Servo Requirements:
2-channel
Receiver Requirements:
540 Type
Motor Requirements (brushed):
540 Size
Motor Requirements (brushless):
To suit motor
ESC Requirements:
No
Battery Included:
No
Charger Included:
28 mm
Ground Clearance:

FEATURES
  • Turbo Scorpion updated to meet the demands of the modern off-road racing scene.
  • Kit includes pre-assembled gearbox.
  • Features same racy-style mini bumper as the original.
  • Rear section reinforced with Rear Sus Post L, strengthened by added flange.
  • Features accurate recreation of the original loop-mount light buckets. Optional LED lights can be simply bolted on.
  • Screwed surfaces are countersunk for flat finish.
  • Decals included in kit are diecut. Stretch for easy application and beautiful body finish.

Kit Contents

Semi Pre-assembled kit (gear box is pre-assembled)
Polycarbonate clear body
Decals
Chassis parts
L type hexagonal wrench
Cross wrench
Shock wrench
Shock oil
Grease

Kit Requirements

  2ch 1 servo R/C system for cars
540 class motor
ESC compatible with motor used
Battery for chassis compatible with ESC used
Battery charger
Paint for polycarbonate body
Batteries for transmitter
Tools (1.5, 2, 2.5mm hexagonal wrench driver)

  As the 5th model to make its return as part of the vintage series, the ever-popular Scorpion released in 1982 was re-launched 2 years ago and has undergone a detailed overhaul to match modern performance with retro styling. The new Turbo Scorpion remains true to the essence of the unique Scorpion design throughout, but features Scorpion-style wheels in the larger 2.2 inch modern standard wheels for improved off-road performance. In addition, 12mm oil shocks based on the Optima deliver rock-solid running stability and excellent damping characteristics that work in combination with high-grip front and rear tires with a 20mm wider front tread and 10mm longer wheelbase than the original Scorpion to realize improved control and handling performance. With a thorough modernization, the new Turbo Scorpion is ready and willing to accept modern-day power sources and compete on modern race circuits. The standard Turbo Scorpion is a fully optioned chassis configuration and is ready to take the punishment that goes with hard driving.
