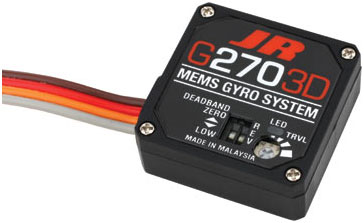

G270 3D Micro Gyro w/Rem Gain
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
3D Micro Gyro
Type:
MEMS
Senor Type:
6 g
Weight:
23.5 mm
Length:
23.4 mm
Width:
8.8 mm
Height:
Tail Lock, remotely adjustable
Gain Type:
4.8-6 V
Operating Voltage:
Yes
Reversing Switch:
Yes
servo travel limiter:
49mA
Current Draw:
FEATURES
- All-in-one super compact, lightweight gyro for easier handling and installation
- Anti-drift sensor allows high-performance flight
- High-speed output, capable of outputting signals to the servo in a shorter cycle for finer control
- Remote gain adjustment, capable of adjusting the gain and switching between rate and tail lock modes from the transmitter
- Equipped with an auto trim function allowing a smooth transition from normal mode to tail lock mode
- Constant pirouette rates
- For use with digital servos only
- For use with small electric helis (500-class and smaller)
