IMR5G8RHPATC8

SpiroNet 5.8GHz RHCP Mini Patch Antenna 8dBi SMA

Product Info
IMMERSION RC

IMR5G8RHPATC8
SpiroNet 5.8GHz RHCP Mini Patch Antenna 8dBi SMA
By IMMERSION RC
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Video Equipment Accessory, Antenna
But only from... IMMERSION RC
All items from... IMMERSION RC


 Inventory Status Legend
StockStock availability for on-line ordering
0
$44.99
Warehouse ?
StockStock availability for pick up
0
$44.99
Warehouse ?
0
$44.99
Store - Stratford ?
0
$44.99
Store - Edmonton ?
0
$44.99
Store - Mississauga ?
0
$44.99
Store - Ottawa ?
0
$44.99
Store - Oshawa ?
0
$44.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
FEATURES
  • SMA male connector compatible with all FatShark/ImmersionRC 5.8GHz Products
  • Right-Hand circular polarization
  • 5.8GHz ISM Band
  • 8dBi gain
  • Beam width -3dB at +/- 45 degrees (H + V) (90 degree total)
  • F/B Ratio >356dB
  • VSWR < 1:1.35 at 5800MHz
  • Impedance 50 ohms
  • Weight 7g

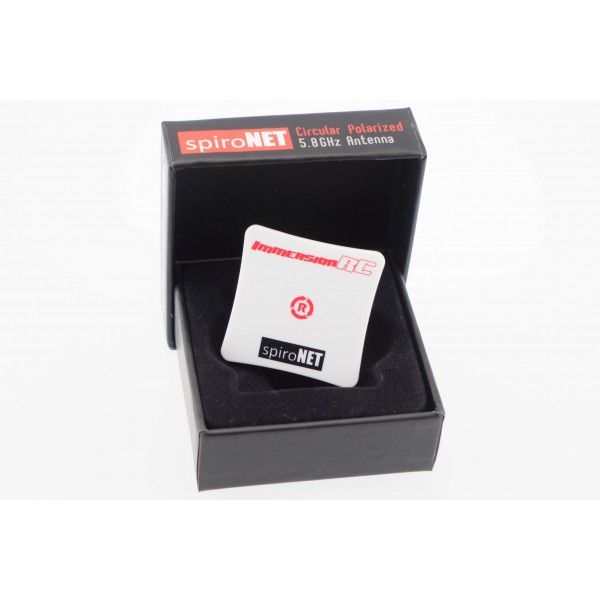

This 5.8GHz Right-Hand (RHCP) Circular Polarized patch antenna was custom-designed, with no expense spared, for the FPV market. Light enough to be mounted directly onto an LCD headset, or directly onto the front of a Uno or Duo receiver. Precision manufactured with very tight tolerances, each antenna is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance.
