This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
57 mm
Length:
23 mm
Width:
12 mm
Height:
22 g
Weight:
5V, 1.5A Max
Camera Output Power:
8 ch
Channels:
2.4 GHz
Band:
6-24 V
Operating Voltage:
3 W
Operating Current:
700 mW
Output Power:
SMA
Antenna Connection:
FEATURES
*PLEASE NOTE: Do not use this transmitter with 2.4GHz RC control systems or interference and loss of control can occur.

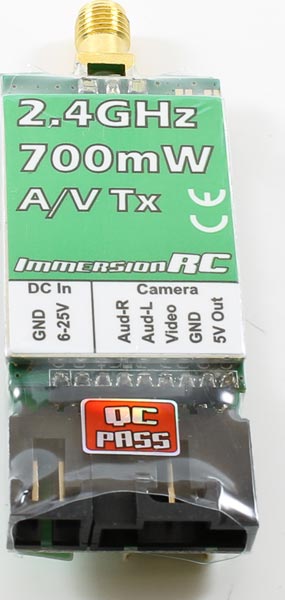

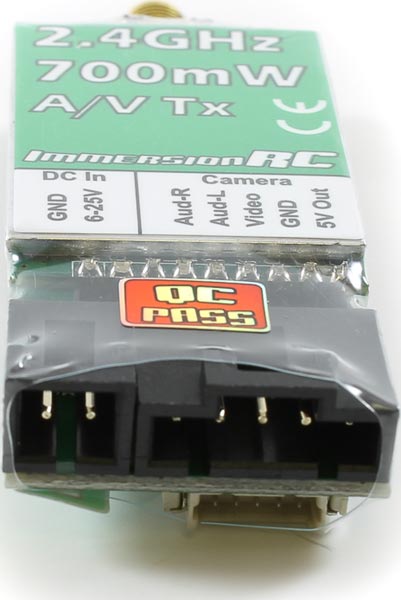

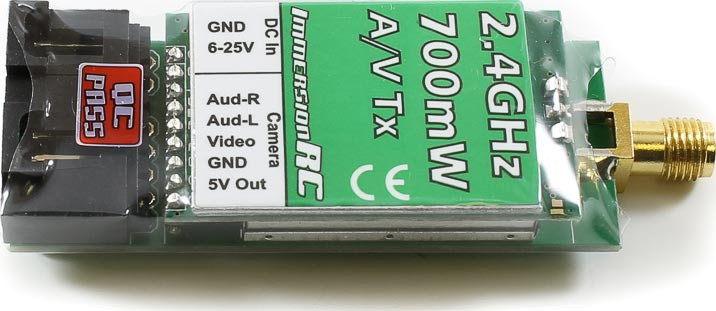

NexWaveRF technology comes to the 2.4GHz band. An efficient A/V transmitter for long range FPV use.
The 700mW transmitter includes a built-in super-quiet switching regulator, which powers not only the transmitter, but a connected 5v camera. No need for external step-down supplies, and no need for filtering, or a second battery. Run the 700mW directly from your flight pack!

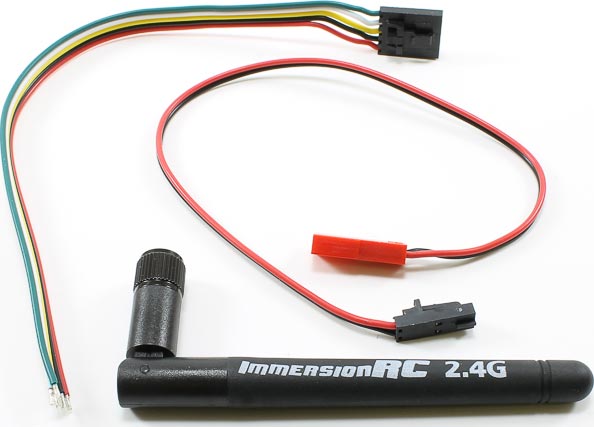

Supplied connectors are standard for all ImmersionRC/FatShark equipment, including cameras, and OSDs.
Notice: The use and operation of this product in Canada may require an amateur radio operators license (HAM license). It is the responsibility of the purchaser to ensure they are complying with Industry Canada laws and regulations. Great Hobbies will not be held responsible for the improper use of this product. We encourage all users to educate themselves about safe and responsible operation of aircraft piloted first person view (FPV).
