FEATURES

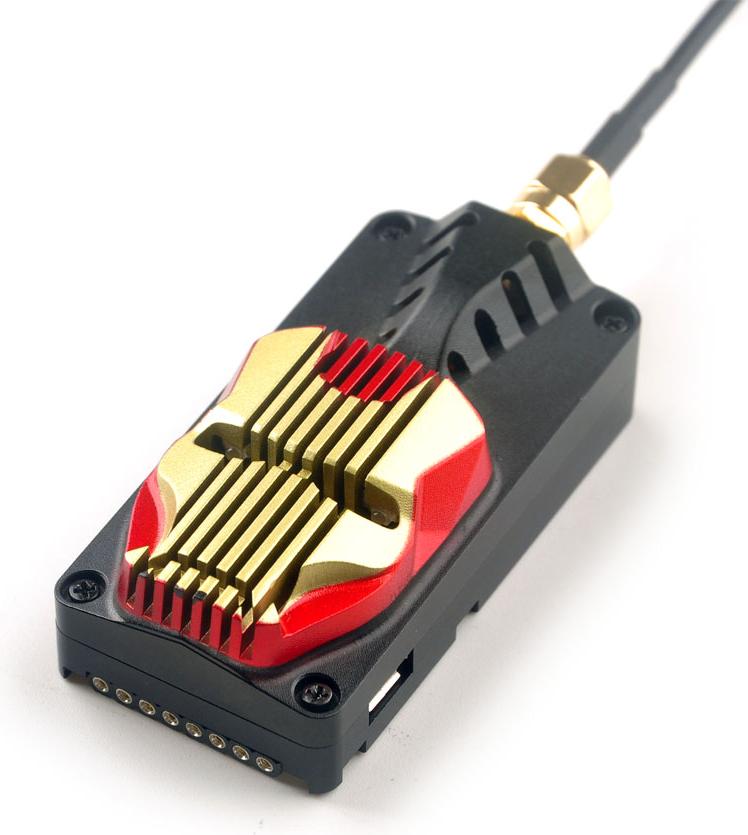

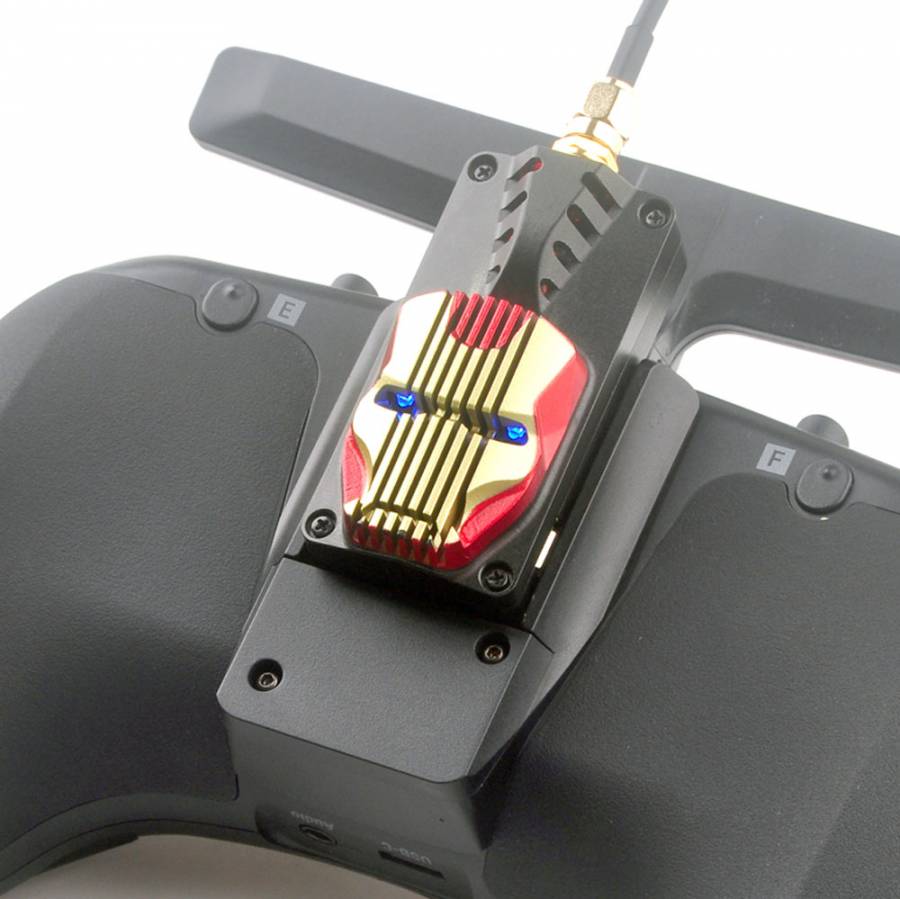

This Slim TX module is designed by Happymodel and based on the open source- ExpressLRS which is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing drone. Its main hardware architecture is ESP32, ESP8285 and SX1280 RF chip. The ES24TX Slim module is a complete solution which is already pre-load the Expresslrs firmware and it’s plug and play for Frsky X-lite/X-lite pro/X9 Lite , TBS Tango2.

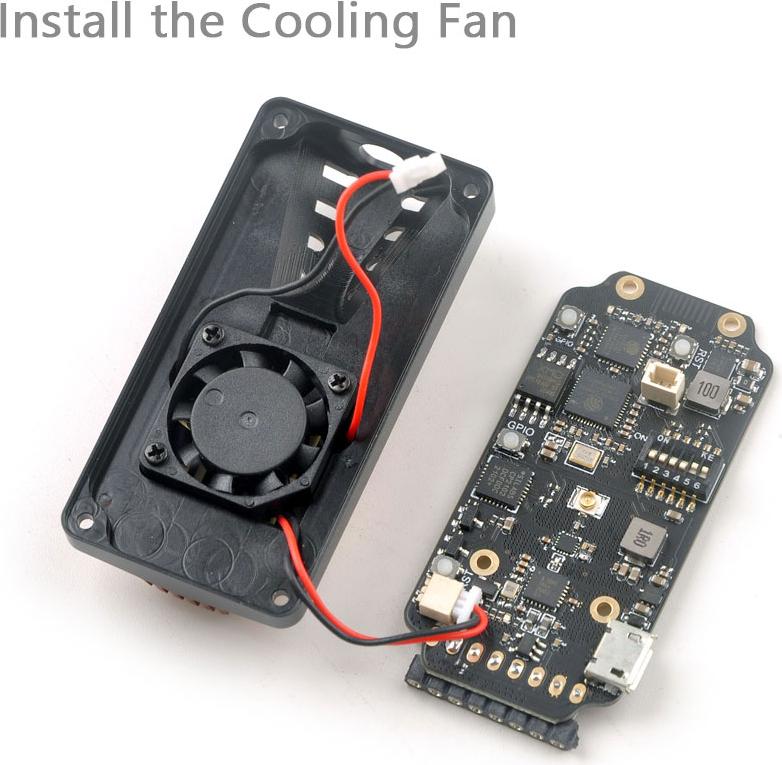

This Slim module comes with an aluminum alloy shell and is equipped with a cooling fan that automatically works when the module is working at 250mw.
Features:
Open source ExpressLRS
Long range, low latency and High re-flashed Rates
Supports up to 250mw RF power
Telemetry data transmission supported
Cooling fan provide
CNC aluminum protective shell
Specifications:
Regulatory Domain: ISM2400

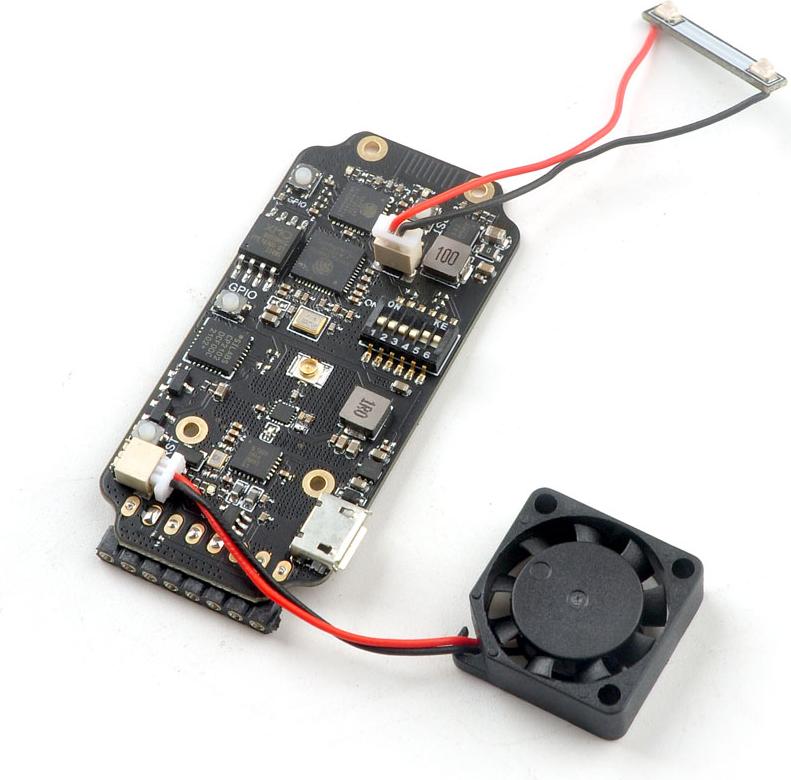

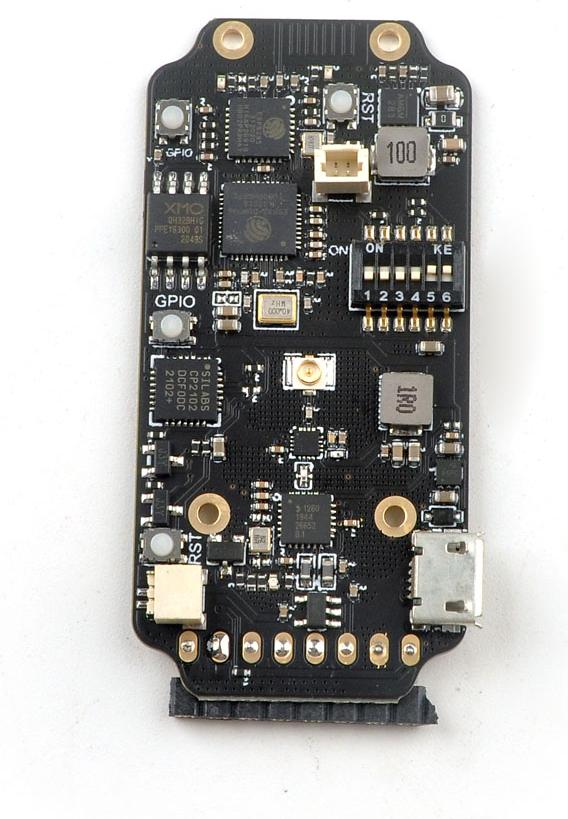

MCU:ESP32(main),ESP8285(aux,as espbackpack)
RF chip:SX1280IMLTRT
Lite Frsky 8pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: 10dBm~24dBm
Power supply voltage: 5v~10v
Weight: 48gram(with antenna and case?
Dimension: 60mm*30mm*20mm(With CNC case)
Antenna gain:1.87dBi

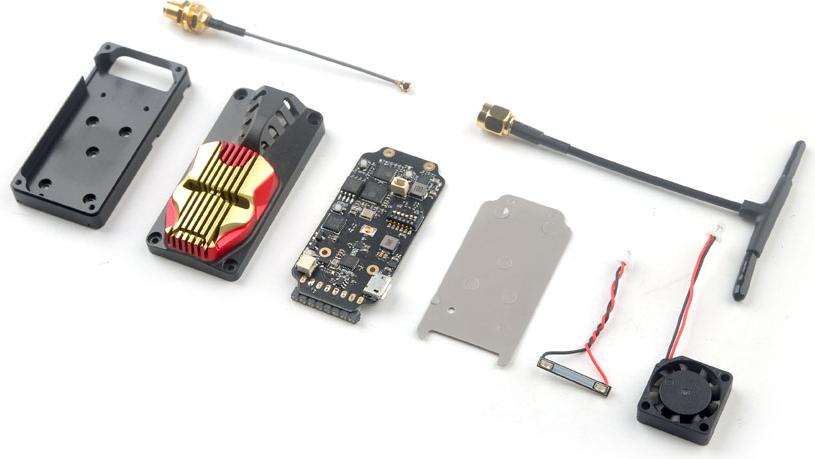

Package includes:
ES24TX Slim TX module *1
24TX80 antenna *1
CNC Aluminum alloy case *1
Cooling Fan *1
LED board *1
Antenna adapter cable *1
