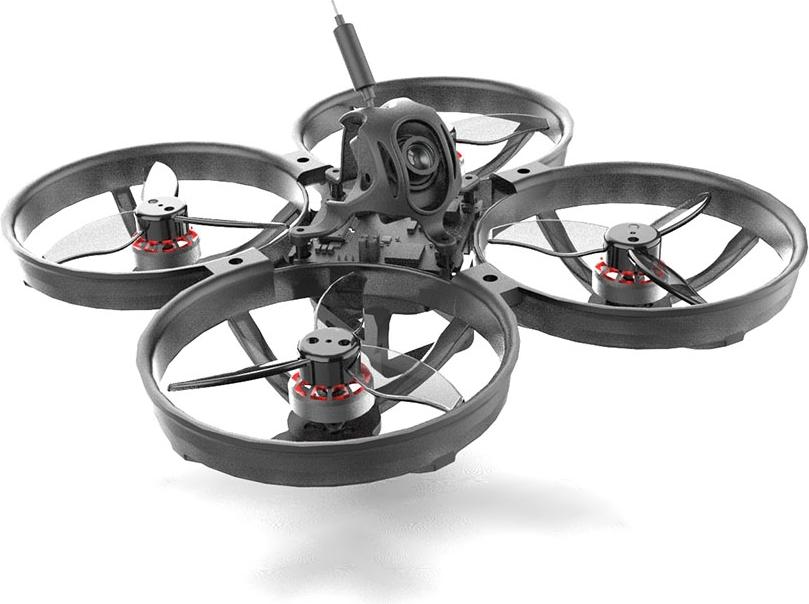

Mobula8 HDZero HD Whoop & ELRS V3.0

Mobula8 HD with HDZero brings HD video to the whoop world.

Motors

EX1103 KV11000
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

Propellers

Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

Flight controller

MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270 (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19
Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200
Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

HDZERO Version

HDZero Nano Lite Camera
14x16x11 mm
1.5gram
0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
Excellent low light performance
Fov:
4:3: D:130° H:108° v:84°
16:9:D:122° H:108° V:65°

HDZero Whoop Lite VTX
1-3S Input
25mW/200mW RF Output-SmartAudio Support
25.5×25.5 M2 Soft Mounting- Antenna Retention
Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
4.5grams/4mm Thickness (without shielding)
