HITHS805MGS

HS-805MG Mega Giant Scale Metal Gear Servo 1/5 Car

Product Info
HITEC

HITHS805MGS

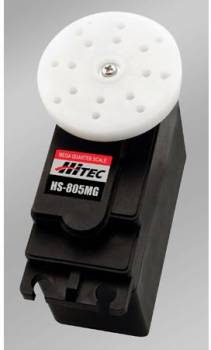

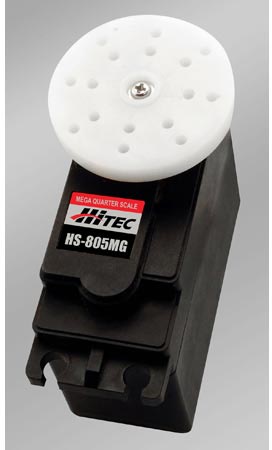

HS-805MG Mega Giant Scale Metal Gear Servo 1/5 Car
By HITEC
$94.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Servos Analog
But only from... HITEC
All items from... HITEC


 Inventory Status Legend
StockStock availability for on-line ordering
0
$94.99
Warehouse ?
StockStock availability for pick up
0
$94.99
Warehouse ?
0
$94.99
Store - Stratford ?
0
$94.99
Store - Edmonton ?
1
$94.99
Store - Mississauga ?
0
$94.99
Store - Ottawa ?
0
$94.99
Store - Oshawa ?
0
$94.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
15 Tooth
Output Spline:
66 mm
Length:
30 mm
Width:
57.6 mm
Height:
197 g
Weight:
Metal
Geartrain:
4.8 - 6.0 v
Voltage Range:
10.8 kg-cm (275 oz-in)
Torque @ 4.8V:
0.22 sec/60°
Speed @ 4.8V:
24.7 kg-cm (343 oz-in)
Torque @ 6.0V:
0.18 sec/60°
Speed @ 6.0V:

FEATURES
  • Large 8mm Output shaft
  • Dual Ball Bearings
  • Heavy Duty Metal Gear Train
  • Water and Dust Resistant Case

The HS-805MG heavy duty supersized servo was designed to handle the punishment dished out by the latest wave of large 1/5th scale vehicles. With big gears in a big case powered by a big motor this servos was designed to take abuse and keep on going.
