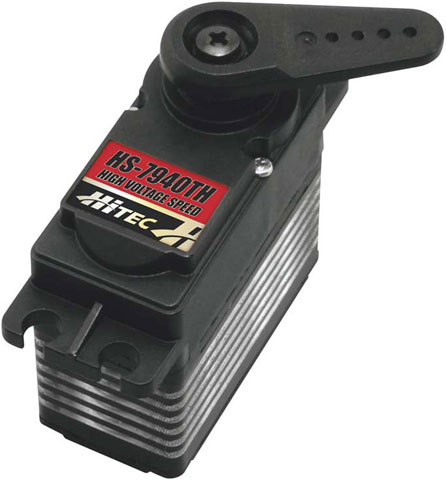

HV Dig Mega Speed TG 0.06/222.19oz
Discontinued
|
click to enlarge
|
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
SPECIFICATIONS
40 x 20 x 38 mm
Dimensions:
180.53 oz-in
Torque @ 6.0V:
222.19 oz-in
Torque @ 7.4V:
0.07 sec/60°
Speed @ 6.0V:
0.06 sec/60°
Speed @7.4V:
68 g
Weight:
FEATURES
- Titanium gears.
- Coreless motor.
- G2 programmable digital circuit.
- Can be run off of a 2s li-po pack without a regulator.
- Gold plated contacts.
- Water and dust resistant- Not water proof.
Ideal for larger helicopters and cars needing high speed and plenty of torque.
A note on coreless motors
A conventional servo motor has a steel core armature wrapped with wire that spins inside the magnets. In a coreless design, the armature uses a wire mesh that forms a cup that spins around the outside of the magnet. This arrangement is much lighter resulting in smoother operation and faster response time.
