SPECIFICATIONS
24 Tooth
Output Spline:
44 mm
Length:
23 mm
Width:
25 mm
Height:
35 g
Weight:
Nylon
Geartrain:
4.8 - 6.0 v
Voltage Range:
4.4 kg-cm (61 oz-in)
Torque @ 4.8V:
0.18 sec/60°
Speed @ 4.8V:
5.5 kg-cm (76 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
FEATURES
Top Ball Bearing
3-Pole Ferrite Motor

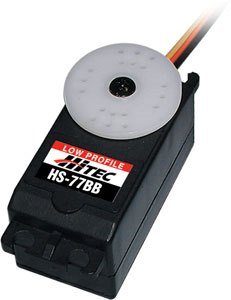

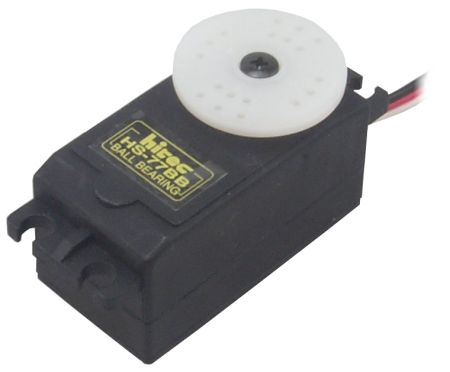

With its low profile design and strong standing torque, the HS-77BB is a great choice for wing or tail mounting in aircraft up to 1.20 size. Submarines, boats, cars and trucks can also benefit from this servos strength and small size.
