SPECIFICATIONS
24 Tooth
Output Spline:
41 mm
Length:
20 mm
Width:
38 mm
Height:
60 g
Weight:
Metal
Geartrain:
4.8 - 6.0 v
Voltage Range:
7.9 kg-cm (110 oz-in)
Torque @ 4.8V:
0.17 sec/60°
Speed @ 4.8V:
9.4 kg-cm (131 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
FEATURES
Dual Ball Bearing
3-Pole Ferrite Motor

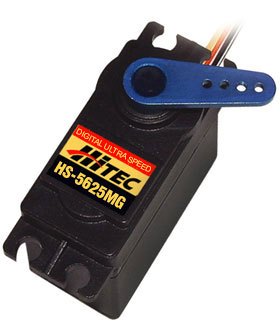

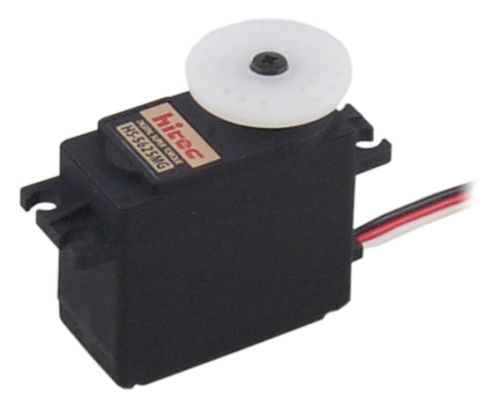

Increased reliability, programmable features, Hitec’s unbreakable metal gear train and a free aluminum servo arm are available with the HS-5625MG digital servo from Hitec.
The powerful HS-5625MG is perfect for those high demand applications requiring a standard sized servo. With a custom designed programmable digital circuit and our unique Alumite/ MP gear train technology the the powerful and fast HS-5645MG is perfect for those applications that demand a high speed servo.
