SPECIFICATIONS
24 Tooth
Output Spline:
41 mm
Length:
20 mm
Width:
36.6 mm
Height:
46 g
Weight:
4.8 - 6.0 v
Voltage Range:
3.3 kg-cm (46 oz-in)
Torque @ 4.8V:
0.21 sec/60°
Speed @ 4.8V:
4.1 kg-cm (57 oz-in)
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
FEATURES
Dual Ball Bearing
3-Pole Ferrite Motor

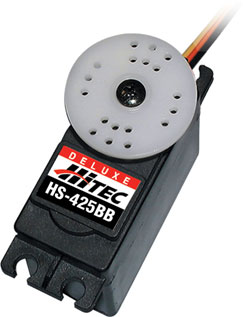

HS-425BB is one of the most durable and reliable servos Hitec has ever offered. With its dual ball bearings, high impact resin gear train and high performance circuitry, the HS-425BB features excellent centering and resolution.
