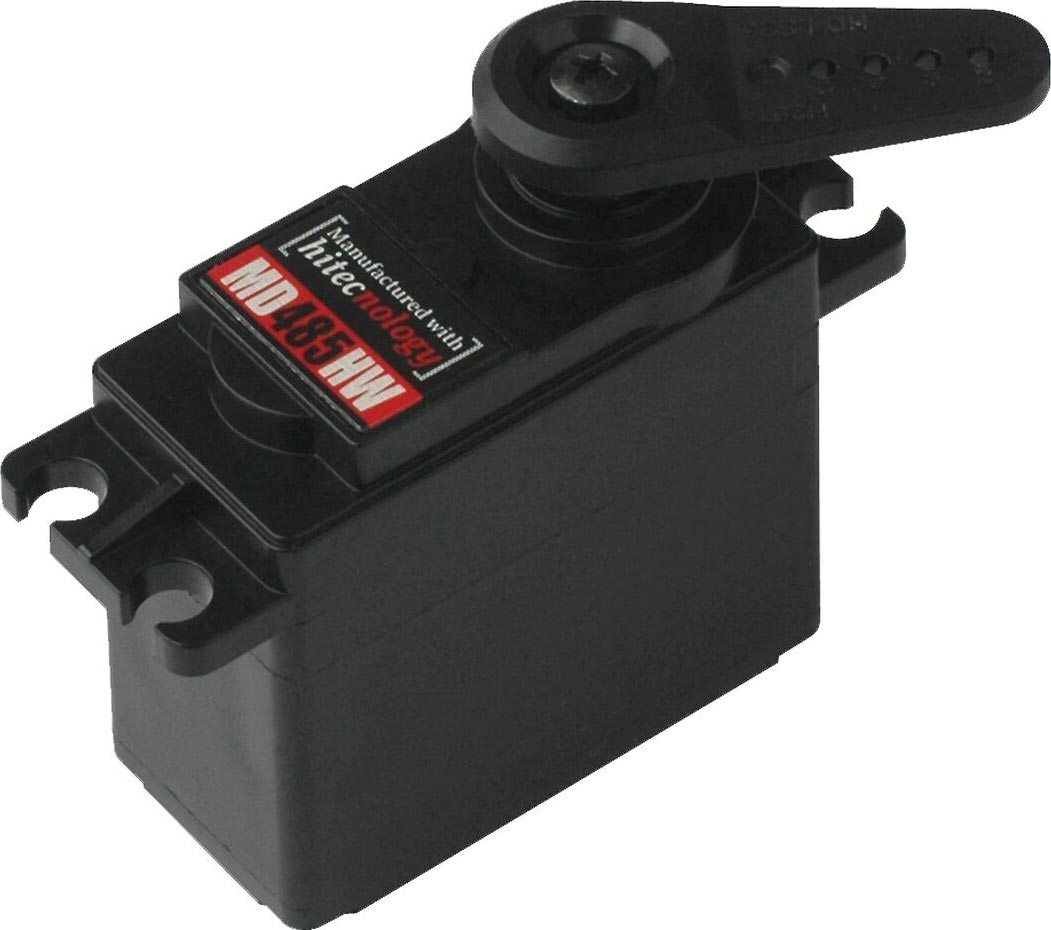

Servo - MD485HW Standard Composite Gear 20mm
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38 mm
Height:
45 g
Weight:
Plastic
Geartrain:
Cored Carbon Brush
Motor Type:
4.8 - 8.4 v
Voltage Range:
4.8 Kg-cm (67 oz-in)
Torque @ 4.8V:
0.20 sec/60°
Speed @ 4.8V:
7.4 Kg-cm (103 oz-in)
Torque @ 8.4V:
0.15 sec/60°
Speed @ 8.4V:
FEATURES
- High Resolution 32-bit (4096 steps) Programmable Digital Circuit
- PWM or TTL Protocol Capability
- Magnetic Encoder Position Sensor
- Wide Operating Voltage (4.8 ~ 8.4V)
- Heavy-Duty, Long Life Motors
- IP65 Rated Cases
Initially designed for the industrial servo market, Hitec’s MD485HW features a magnetic encoder position sensor for increased accuracy and durability. This performance enhancement provides higher centering precision, straighter tracking and faster times on the strip, making it the ideal answer for the radio control drag racing enthusiast. Hitec’s 32bit D-series circuit, 4096-step resolution and zero backlash Karbonite gears make the MD485HW the durable, dependable servo that Team Hitec drivers recommend. Plus, it is priced right, costing much less than most servos in its class. Trust Hitec to deliver the high performance you need!
click image to enlarge
ADDITIONAL PHOTOS
|
669962404853 0669962404853
HRC40485S
