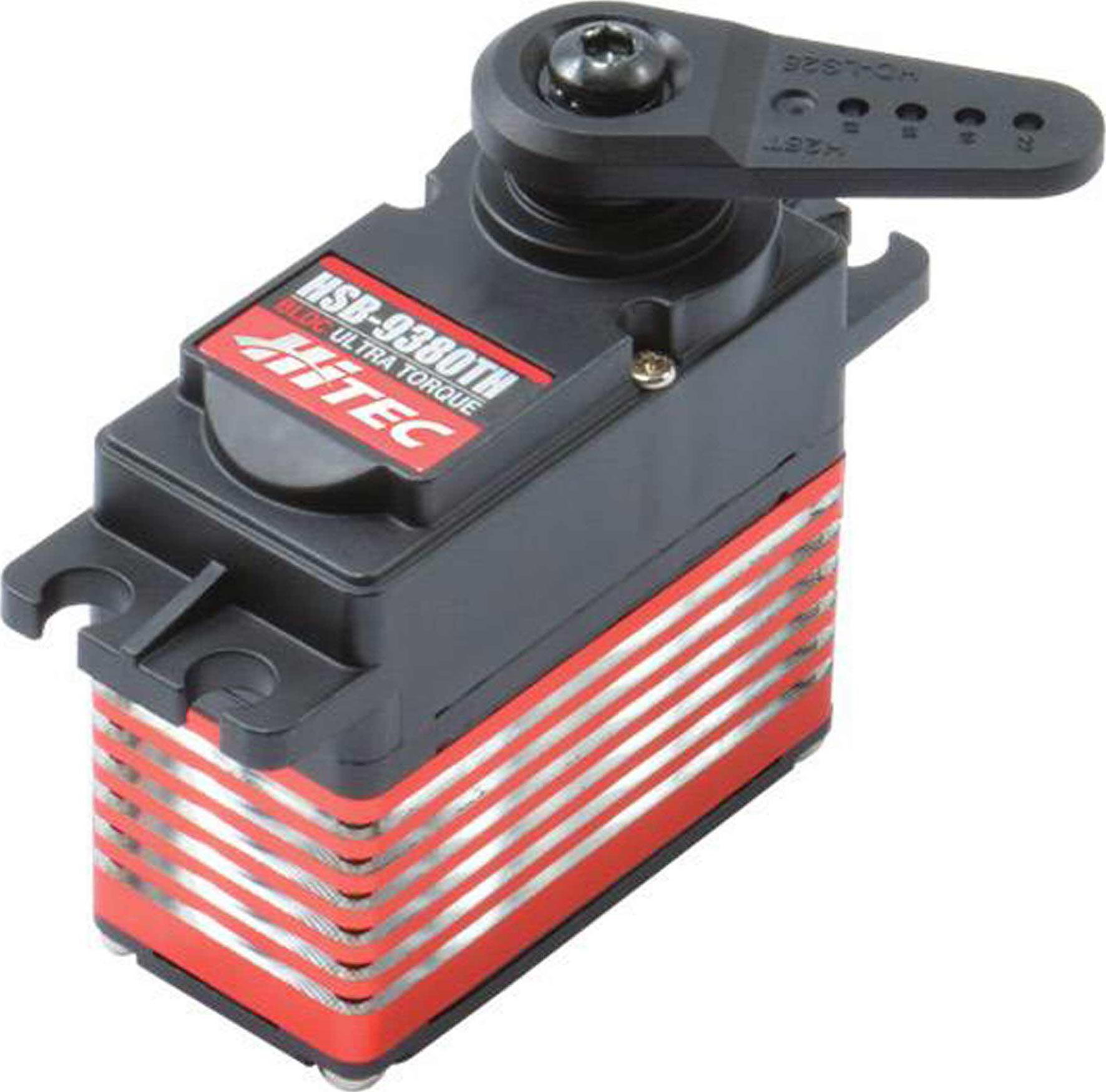

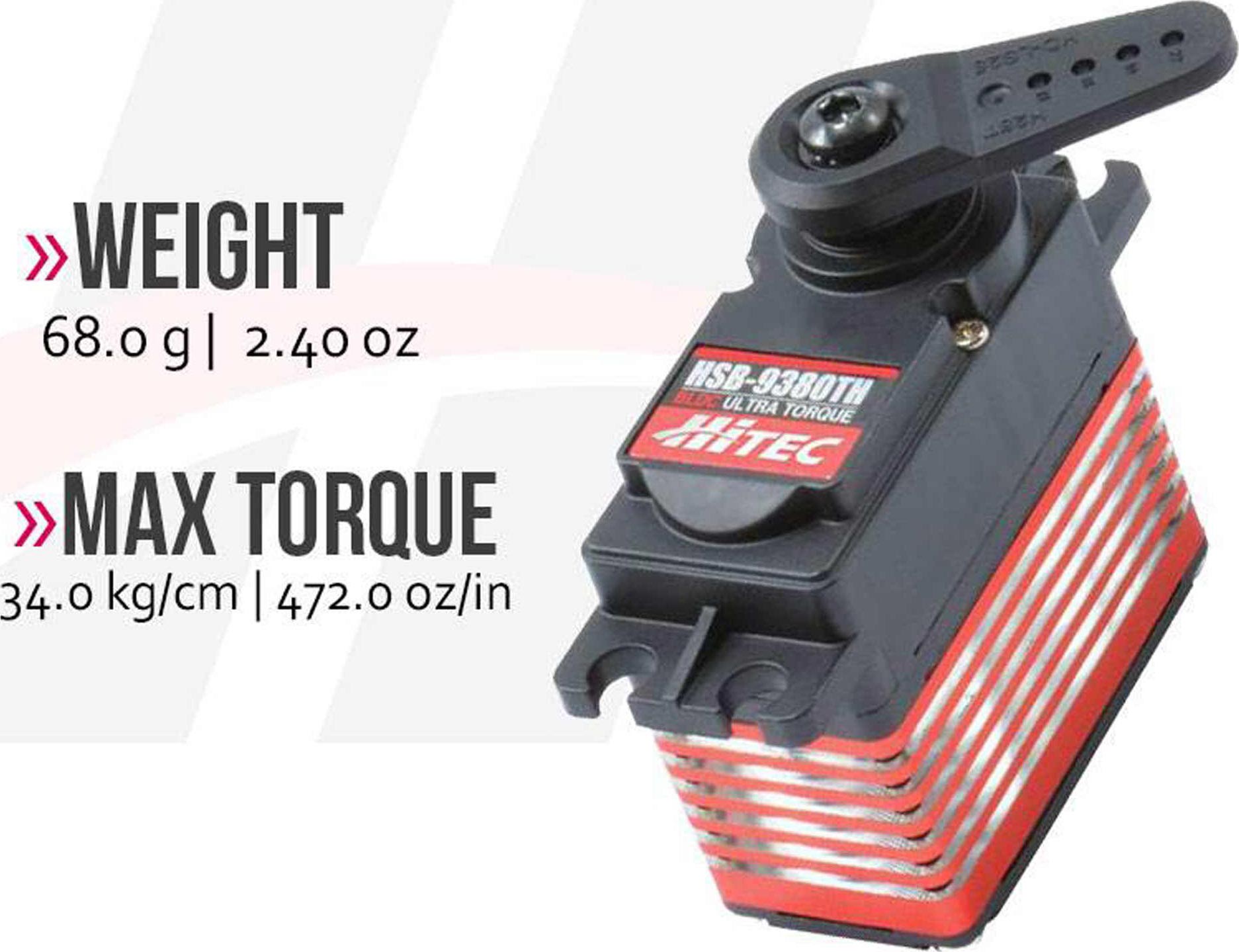

Servo - HSB-9380TH High Speed Brushless Titanium Gear
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38 mm
Height:
68 g
Weight:
Titanium
Geartrain:
Brushless
Motor Type:
6.0 - 7.4 v
Voltage Range:
34 Kg-cm (472 oz-in)
Torque @ 7.4V:
0.14 sec/60°
Speed @ 7.4V:
FEATURES
- Programmable 12-Bit PWM Digital Amplifier
- Custom Long Life Brushless Motor
- 1M Cycle Long Life Potentiometer
- Constant Output Torque
- Wide Operating Voltage (5 ~ 9 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- Dust Resistant and Splash Proof Case
- Hybrid Nylon Reinforced Plastic and Aluminum Case
- Low Power Consumption
With ultra-efficient brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers.
