HIT36956

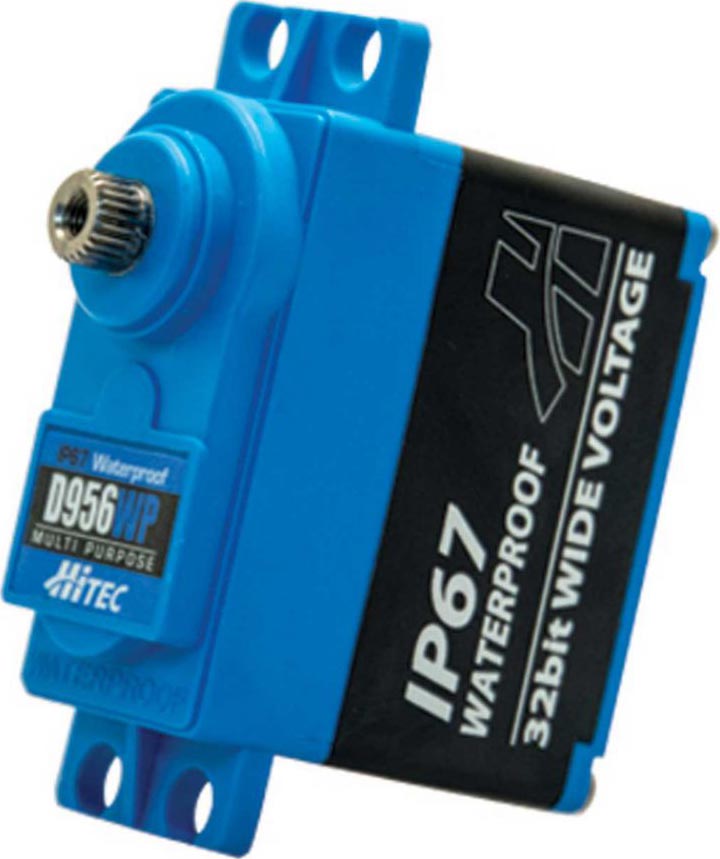

D956WP 32-Bit High Torque WP Steel Gear

Product Info | Fits What?
HITEC

HIT36956
D956WP 32-Bit High Torque WP Steel Gear
By HITEC
$179.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Servos Digital
But only from... HITEC
All items from... HITEC


 Inventory Status Legend
StockStock availability for on-line ordering
2
$179.99
Warehouse ?
StockStock availability for pick up
2
$179.99
Warehouse ?
0
$179.99
Store - Stratford ?
0
$179.99
Store - Edmonton ?
0
$179.99
Store - Mississauga ?
0
$179.99
Store - Ottawa ?
0
$179.99
Store - Oshawa ?
0
$179.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
Digital
Type:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
37 mm
Height:
68 g
Weight:
4.8 - 7.4 v
Voltage Range:
18 kg-cm (251 oz-in)
Torque @ 4.8V:
0.19 sec/60°
Speed @ 4.8V:
29 kg-cm (405 oz-in)
Torque @ 7.4V:
0.12 sec/60°
Speed @ 7.4V:

FEATURES

The D956WP has arrived! Based off the D954SW servo, this IP-67 rated version is the true waterproof, dust resistant upgrade for 1/10th-scale Rock Crawlers and Off-Road Trucks. As with Hitec's entire “D” line, this technologically-advanced servo is powered by a 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D956WP produces the mighty torque and reliability required to take bashers to the next level.

PRODUCT RESOURCES
