SPECIFICATIONS
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
37 mm
Height:
66 g
Weight:
4.8 7.4 v
Voltage Range:
18 kg-cm (251 oz-in)
Torque @ 4.8V:
0.19 sec/60°
Speed @ 4.8V:
29 kg-cm (404 oz-in)
Torque @ 7.4V:
0.12 sec/60°
Speed @ 7.4V:
FEATURES
Programmable PWM Digital Amplifier
32-Bit MCU with 12-Bit ADC Circuitry
4096 Resolution
1M Cycle Long Life Potentiometer
Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
Dual Ball Bearing Supported Output Shaft
25-Tooth Output Spline
Coreless Metal Brush Motors
Nylon Reinforced Plastic Upper and Lower Case
Diamond Cut Aluminum Heat Sink Center Case
Dust Resistant and Splash Proof Case

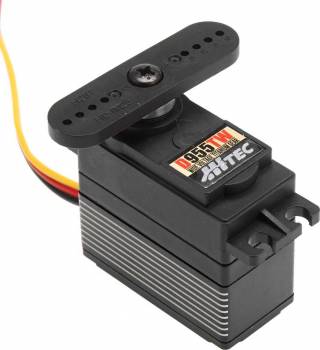

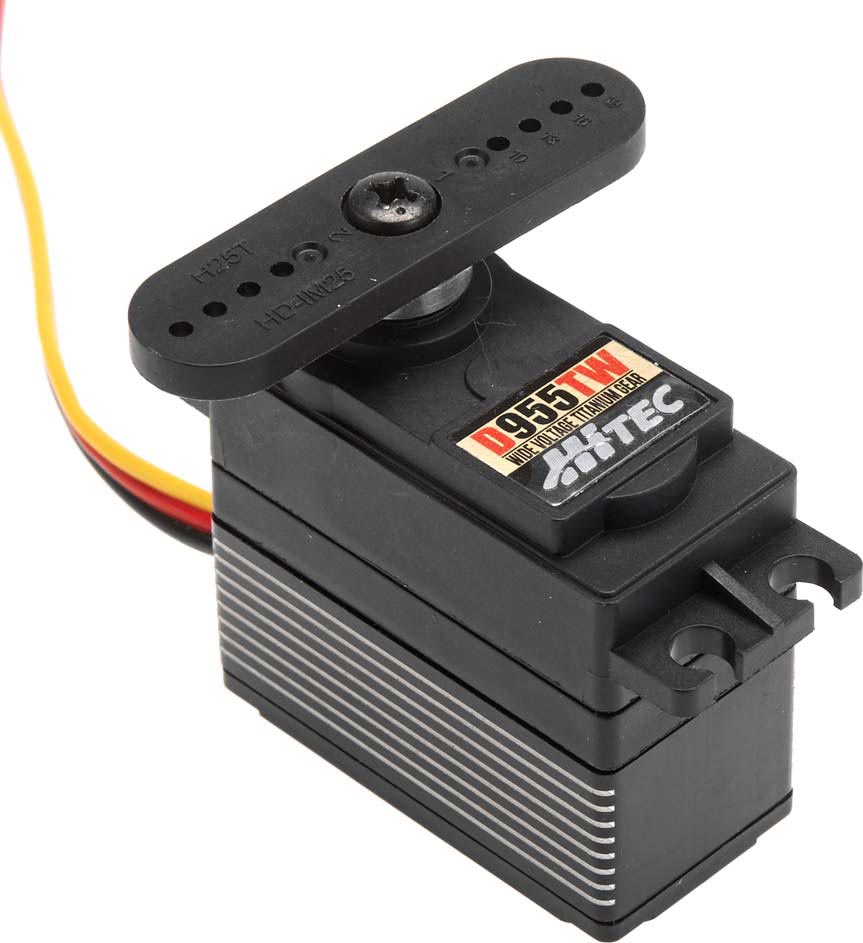

The power of Hitec’s D-Series servos continues with the introduction of the next Premium Class trio: the D930SW, D954SW and D955TW. As with our entire “D” line, these technologically-advanced servos are powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. Their unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. The reliably-strong titanium-geared D955TW replaces the well-known HS-7955TH. Advancing servo technology and providing superior engineering has always been Hitec’s mission and that continues today as we expand our outstanding D-Series product line.
