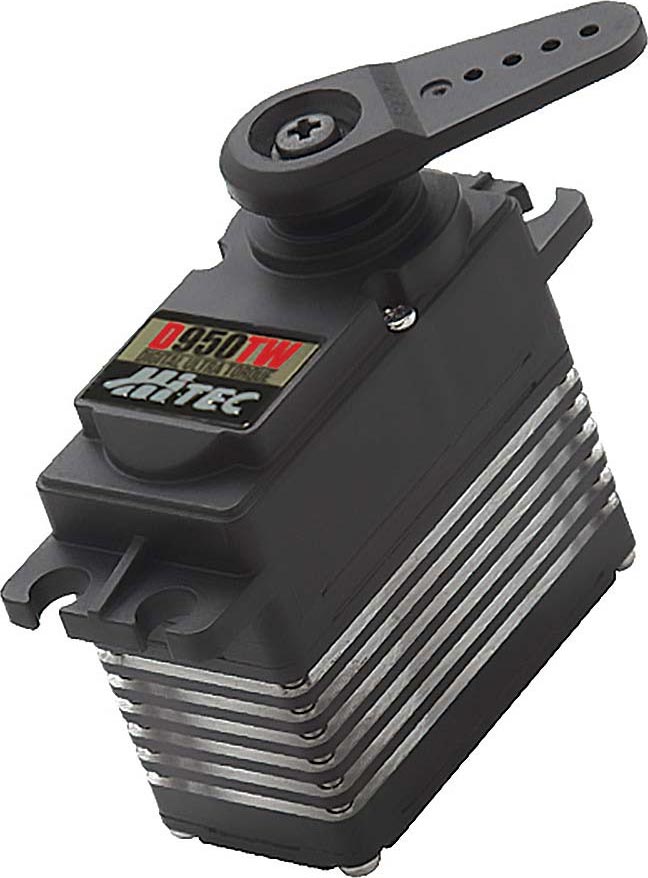

D950TW 32-Bit Ultra Torque Titanium Gear Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38 mm
Height:
68 g
Weight:
Titanium
Geartrain:
4.8 - 6.0 - 7.4
Voltage Range:
21 kg-cm (292 oz-in)
Torque @ 4.8V:
0.23 sec/60°
Speed @ 4.8V:
29 kg-cm (403 oz-in)
Torque @ 6.0V:
0.17 sec/60°
Speed @ 6.0V:
35 kg-cm (486 oz-in)
Torque @ 7.4V:
0.14 sec/60°
Speed @ 7.4V:
FEATURES
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case
The titanium D-950TW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
