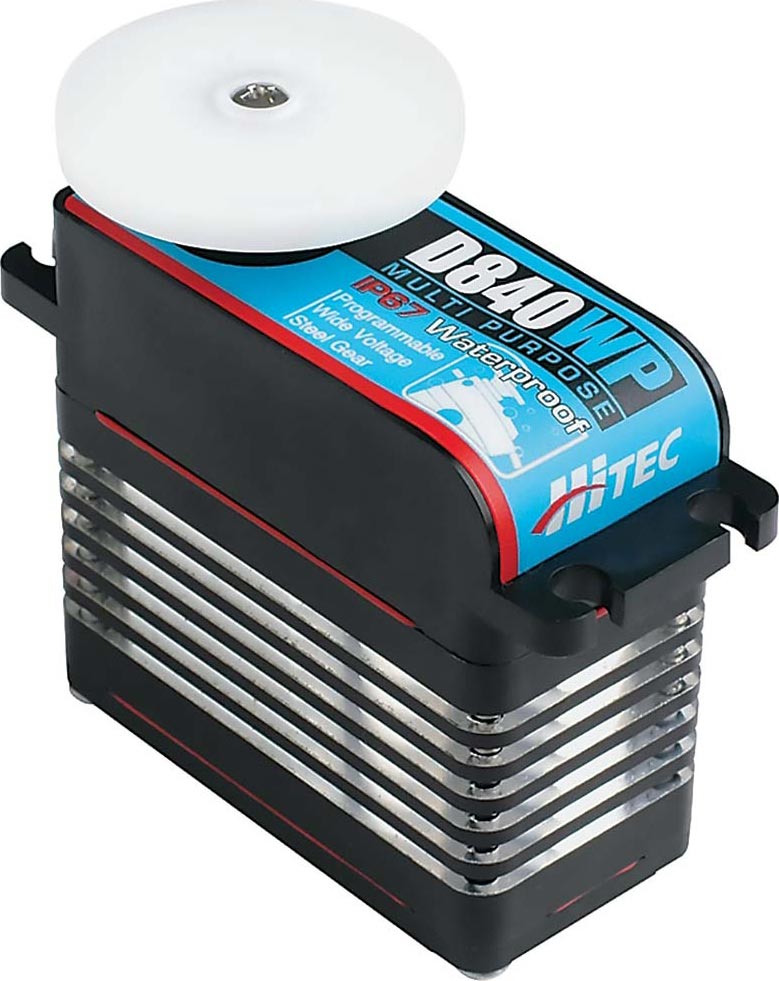

D840WP 32-Bit Multi Purpose Waterproof Steel Gear Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
15 Tooth
Output Spline:
66 mm
Length:
32 mm
Width:
62 mm
Height:
227 g
Weight:
Steel
Geartrain:
4.8 - 6.0 - 7.4 v
Voltage Range:
19 kg-cm (265 oz-in)
Torque @ 4.8V:
0.17 sec/60°
Speed @ 4.8V:
24 kg-cm (335 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
30 kg-cm (419 oz-in)
Torque @ 7.4V:
0.11 sec/60°
Speed @ 7.4V:
FEATURES
The steel D-840WP is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s 15 tooth HD output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
