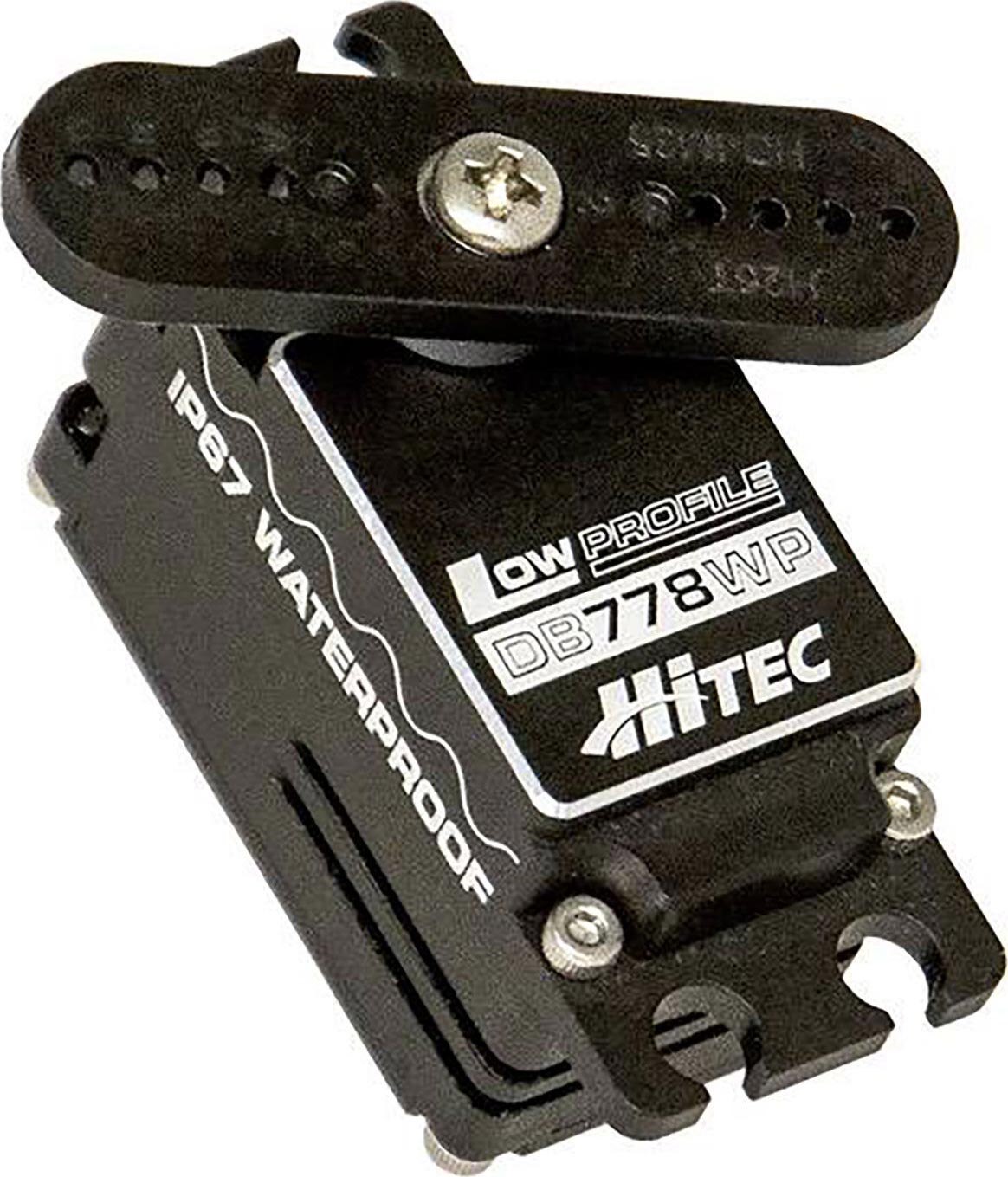

Servo - DB778WP Ultra Torque Brushless Waterproof
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Low Profile
Type:
Dual Ball Bearings
Bearing:
25 Tooth
Output Spline:
41 mm
Length:
21 mm
Width:
26 mm
Height:
68 g
Weight:
Brushless
Motor Type:
3.7 - 8.4 v
Voltage Range:
20.41 kg-cm (283.6 oz-in)
Torque @ 8.4V:
0.08 sec/60°
Speed @ 8.4V:
FEATURES
- Ultra-Efficient Brushless Motor
- Hardened Steel Gears
- All Aluminum Case
- IP-67 Waterproof Rated
- High Response, High Resolution Circuitry
- 32-Bit MCU Technology / 4096 Resolution
- Smart Sense Technology for Servo Analytics
- Full Programmability with DPC11 or HFP-30
Hitec's latest DB-Series brushless servo is the high-performance, low profile DB778WP. Manufactured with the “hitecnology” industrial servo innovation, the DB778WP’s design and premium-quality construction was built for demanding commercial applications, yet its superior torque also makes it the perfect hobby servo for 1/10th 2WD & 4WD off-road buggies and touring cars. Engineered with an ultra-efficient brushless motor, high-resolution digital circuit, hardened steel gears and an all-aluminum, IP-67 rated waterproof case, the DB778WP excels when pushed to the limits on ultra-high bite carpet or clay tracks.
click image to enlarge
ADDITIONAL PHOTOS
|
669962367882 0669962367882
HRC36788S
