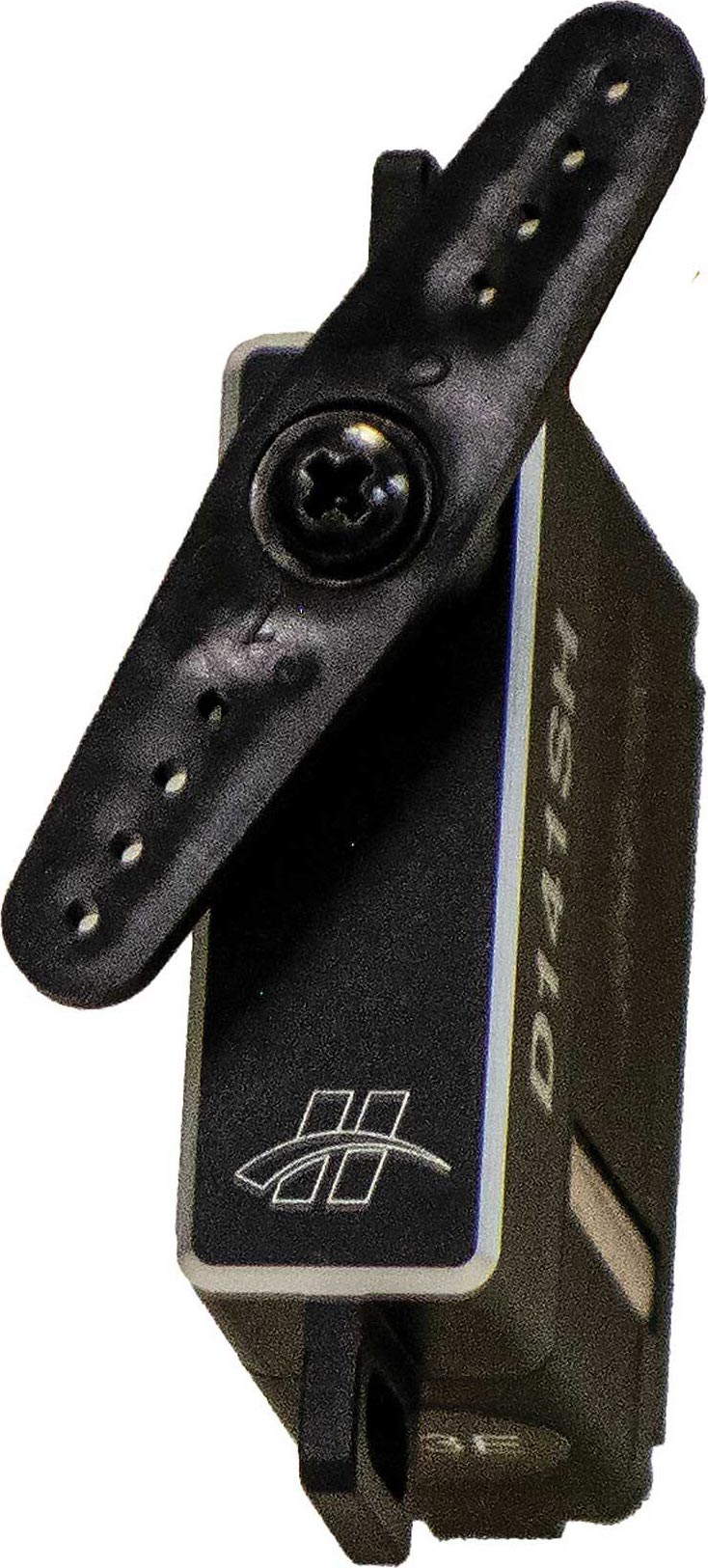

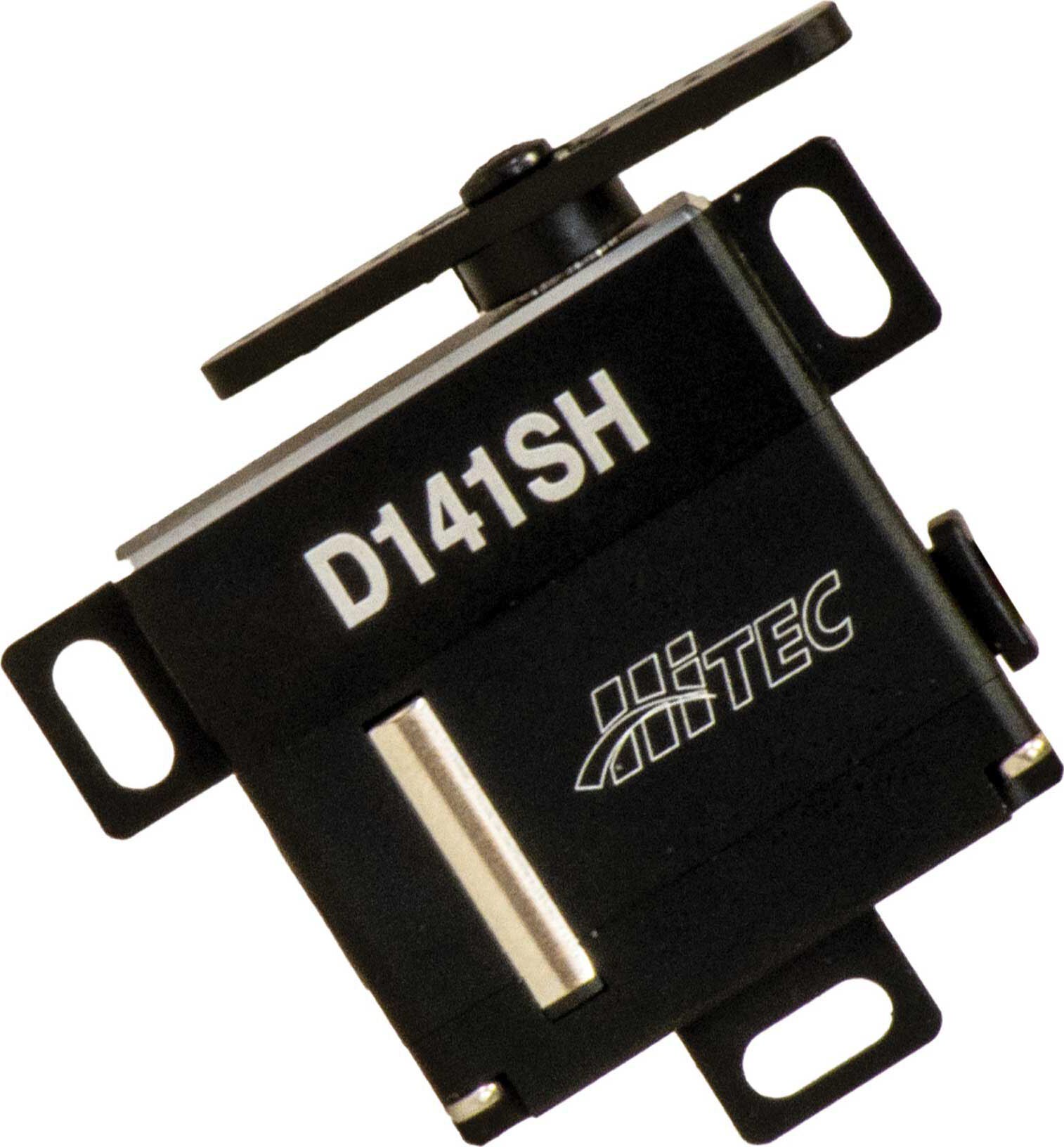

Servo - D141SH Steel Gear 10mm Coreless, Wide Voltage
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
30 mm
Length:
10 mm
Width:
29.5 mm
Height:
26 g
Weight:
Steel
Geartrain:
Coreless
Motor Type:
3.5 - 8.4 v
Voltage Range:
5.7 Kg - cm (79.16 oz-in)
Torque @ 6.0V:
0.13 sec/60°
Speed @ 6.0V:
7.0 Kg - cm (97.21 oz-in)
Torque @ 7.4V:
0.10 sec/60°
Speed @ 7.4V:
FEATURES
- Coreless Motor
- Durable Steel Gears
- All Aluminum Case
- 32-Bit MCU Technology / 4096 Resolution
- High Response, High Resolution Circuitry
- Smart Sense Technology for Servo Analytics
- H25T Industry Standard Output Spline
- Perfect for High-performance Larger Gliders
