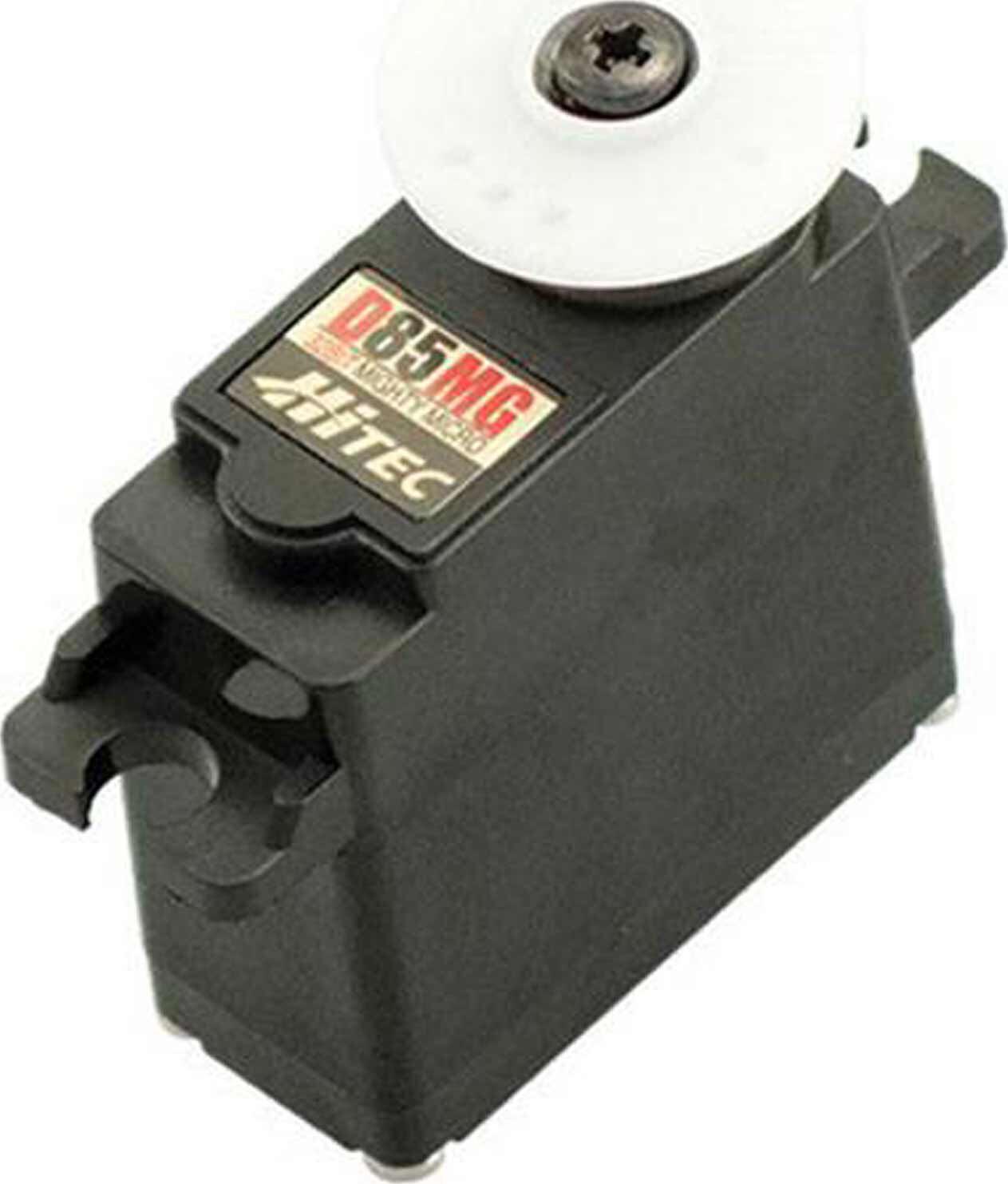

Servo - D-85MG Mighty Micro Programmable
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
Top Ball Bearing
Bearing/Bushing:
24 Tooth
Output Spline:
29 mm
Length:
13 mm
Width:
30 mm
Height:
22 g
Weight:
Metal
Geartrain:
Brushed
Motor Type:
4.8 - 6.0 v
Voltage Range:
3.6 Kg-cm (50 oz-in)
Torque @ 4.8V:
0.17 sec/60°
Speed @ 4.8V:
4.3 Kg-cm (60 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
FEATURES
Engineered with the state-of-the-art D-Series technology, this “micro but mighty” servo is an upgrade from the popular HS-5085MG. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.
click image to enlarge
ADDITIONAL PHOTOS
|
|
669962360852 0669962360852
HRC36085S
