Servo - HS-5086WP Digital Micro Waterproof Metal Gear
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
Park Flyer or Sport Plane
Application:
Top Ball Bearing
Bearing/Bushing:
24 Tooth
Output Spline:

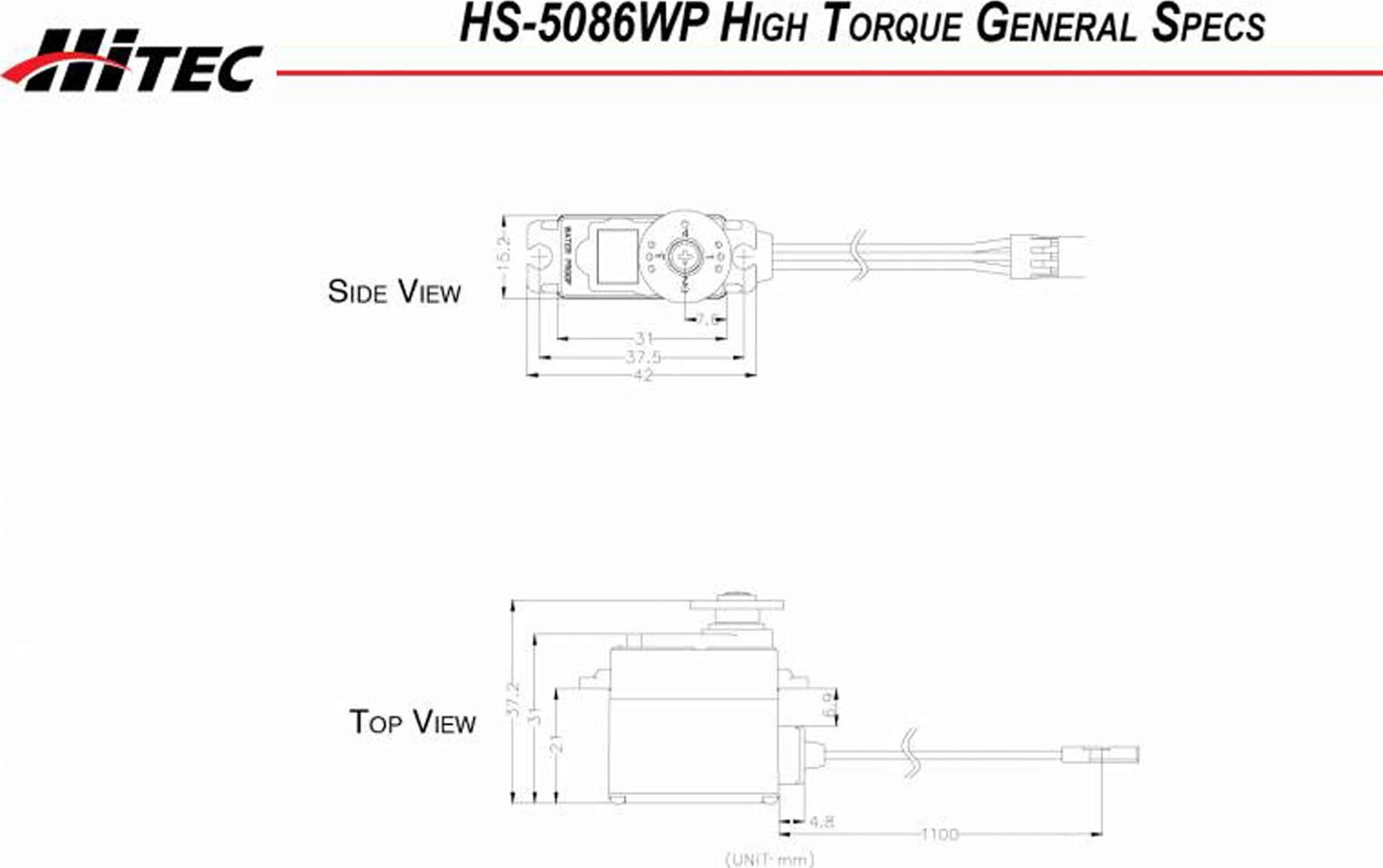

31 mm
Length:
15 mm
Width:
31 mm
Height:

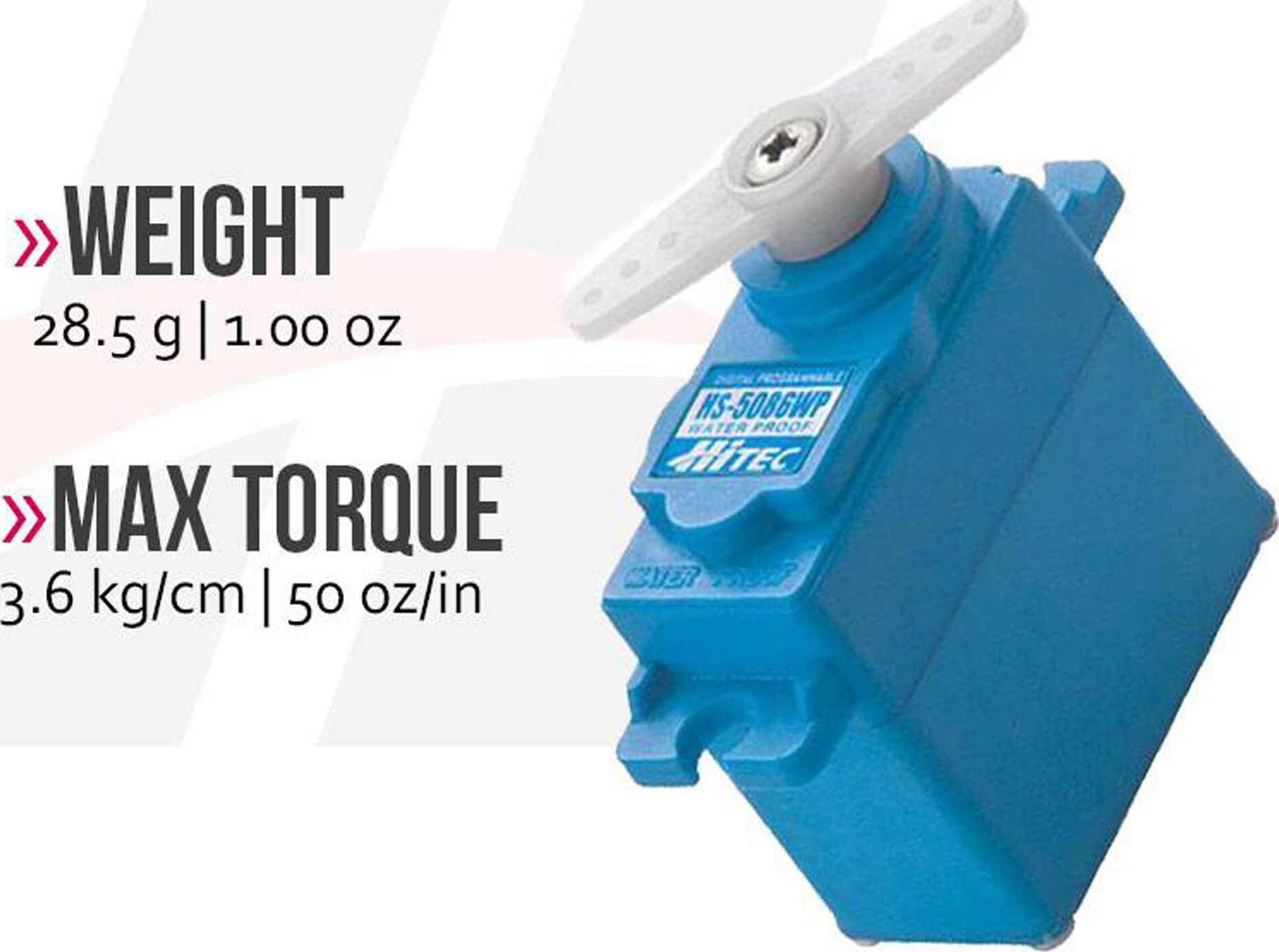

28.5 g
Weight:
Metal
Geartrain:
4.8 - 6.0 v
Voltage Range:
3.0 Kg-cm (42 oz-in)
Torque @ 4.8V:
0.18 sec/60°
Speed @ 4.8V:
3.6 Kg-cm (50 oz-in)
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
FEATURES
- Top Ball Bearings
- 3-Pole Cored Ferrite Motor
- Industry's First IP67-Rated Waterproof Case
- Programmable Circuit

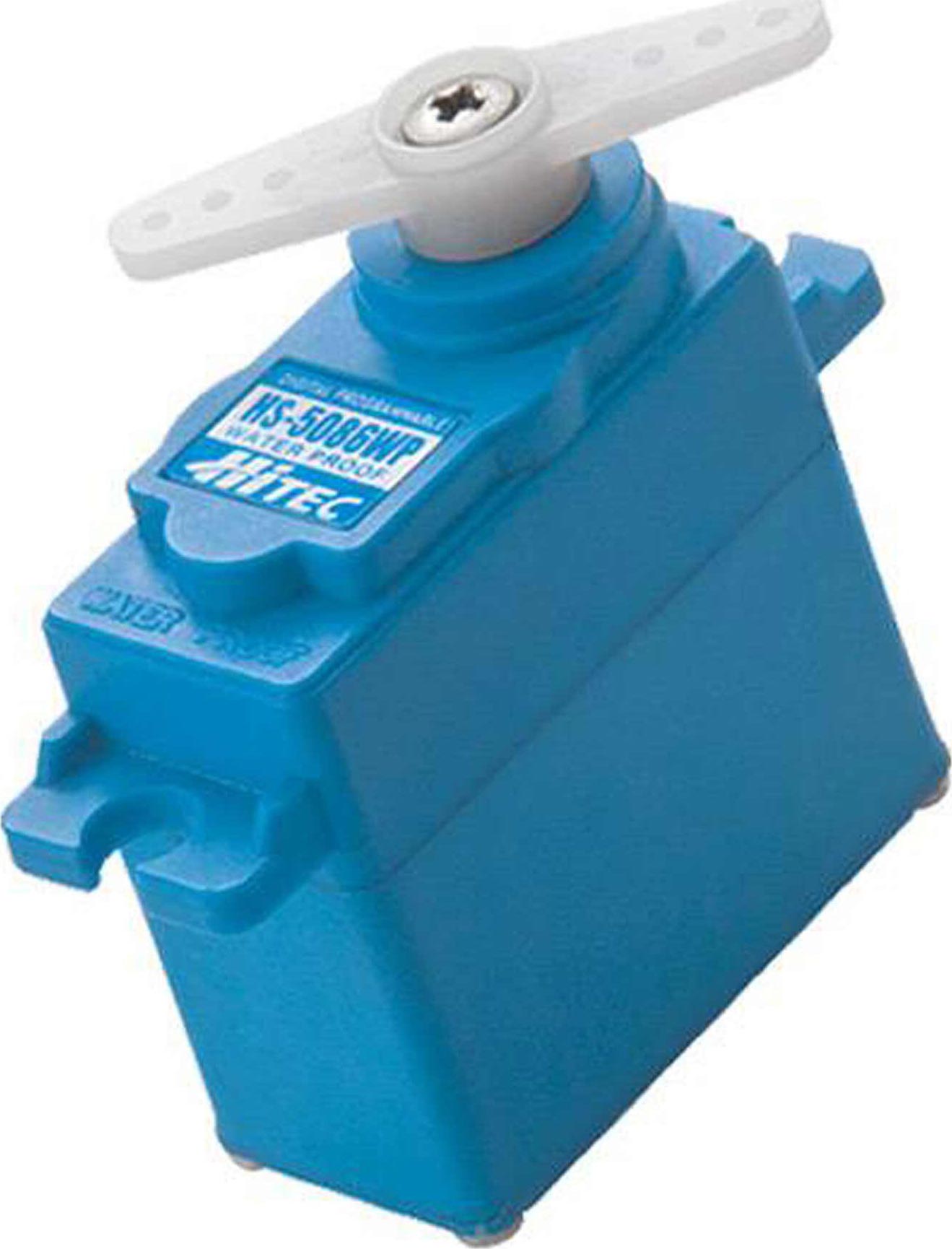

The HS-5086WP is the smallest in Hitec's class of waterproof servos. With heavy-duty metal gears and a ball bearing supported output shaft, the HS-5086WP is among the most durable and reliable micro servo for wet conditions. Possessing the same size as our popular HS-85MG and the industry's first IP67*rating, this spunky mini will keep your RC vehicle, boat, aircraft or robot watertight, no matter what the weather or surroundings.
click image to enlarge
ADDITIONAL PHOTOS
|
|
|
