FEATURES

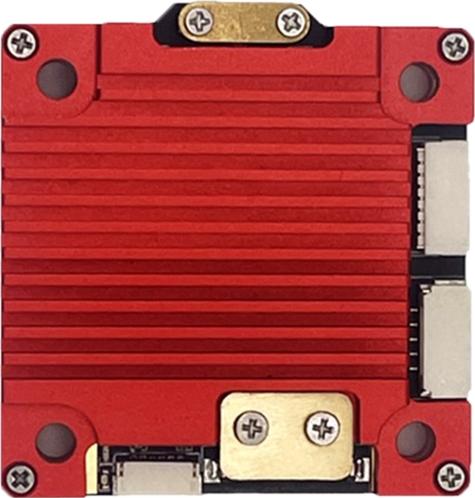

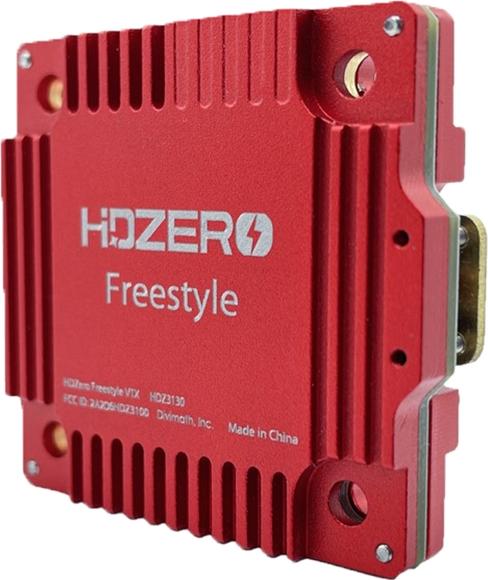

The HDZero Freestyle VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 1000mw on 5.8GHz. It works with the HDZero/Shark Byte goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.
The power input range is 2S –4S. Though the VTX integrates a surge protection circuit, a large capacitor (450+uF) parallel with battery leads is mandatory to smooth the power supply of the whole quad.
The VTX includes a BEC that converts 2S-6S to fixed 5.8V with maximum 5A output current. The VTX also includes an U.FL RHCP antenna.The HDZero Freestyle VTX is a digital HD 720p 60fps 5.8GHZ video transmitter.The power input range is 2S –4S. Though the VTX integrates a surge protection circuit, a large capacitor (450+uF) parallel with battery leads is mandatory to smooth the power supply of the whole quad. The VTX includes a BEC that converts 2S-6S to fixed 5.8V with maximum 5A output current. The VTX also includes an U.FL RHCP antenna.
Specifications:
Model: HDZero Freestyle
Frequency: 5.725-5.850GHz
Resolution Default: 1280*720@60fps
RF power?25mw/200mw/500mw/1000mw
RF Connector: Secured U.FL
Video Connector: Secured MIPI
FC protocol
MSP Canvas Mode/SmartAudio
Size: 40mm x 42mm x 10mm
Weight: 28g
Power: 6-15W
Power input?7V-17V(2S-4S)
Mounting?30.5mm x 30.5mm M3 holes

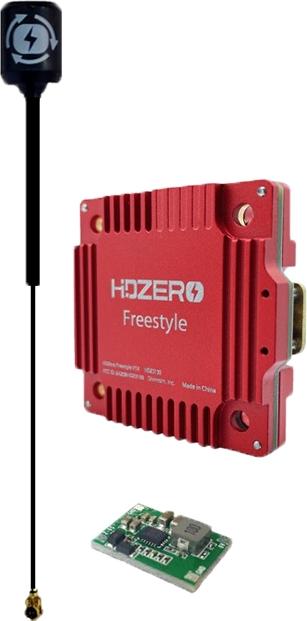

Includes:
1 - HDZero Freestyle VTX
1 - HDZero RHCP Antenna
1 - Power/ UART Cables
1- BEC
1 - u.FL Antenna Retention Screws * 2/Plate
1 - MIPI Retention Screws * 2/Plate
Important Notes:
Do not directly connect this VTX with 5S/6S battery.
Use 2S-4S VBAT, or included BEC, or FC with built-in BEC:
The Freestyle VTX consumes up to 15W. If it is connected with FC that has built-in BEC output, make sure the BEC has enough current. For example, the BEC has 10V, it needs minimum 1.5A current output.
Removing the heat sink is not recommended because it is part of the design.
