HBZ3200

Carbon Cub S+ 1.3m RTF w/DXe/SAFE/GPS

Product Info | Replacement Parts | Optional Items
HOBBY ZONE

HBZ3200
Carbon Cub S+ 1.3m RTF w/DXe/SAFE/GPS
By HOBBY ZONE
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... ARF Park Flyer Electric Aircraft
But only from... HOBBY ZONE
All items from... HOBBY ZONE


 Inventory Status Legend
StockStock availability for on-line ordering
0
$429.99
Warehouse ?
StockStock availability for pick up
0
$429.99
Warehouse ?
0
$429.99
Store - Stratford ?
0
$429.99
Store - Edmonton ?
0
$429.99
Store - Mississauga ?
0
$429.99
Store - Ottawa ?
0
$429.99
Store - Oshawa ?
0
$429.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
EC3 Connector Set Male/Female
$8.99

Li-Po Charge Protection Bag Sm 8.5" x 7"
$19.99

Carbon Cub S+ 1.3m Landing Gear Set
$29.99

Float Set Super Cub LP
$49.99
Carbon Cub S+ 1.3m Spinner 40mm
$14.99

Spektrum GPS Module
$69.99

EC3 Battery Connector Female (2)
$7.99

Carbon Cub S+ 1.3m Tail Set
$42.99
SPECIFICATIONS
51.0 in
Wingspan:
34.0 in
Length:
36.1 - 37.9
Weight:
DXe 2.4GHz
Radio Included:
Spektrum DSMX Receiver/Flight Controller
Receiver Included:
(4) Parkzone Servos
Servo(s) Included:
480 BL Outrunner Motor, 960Kv
Brushless Motor Included:
18A BL ESC
ESC Included:
1300mAh 3S 11.1V 20C LiPo
Battery Included:
DC Charger and AC Adapter
Charger Included:

FEATURES
  • Exclusive SAFE Plus GPS-Enabled Drone Technology
  • AutoLand, Holding Pattern and Virtual Fence functions
  • Beginner, Intermediate and Experienced flight modes
  • Spektrum DXe 2.4GHz Transmitter
  • Spektrum DSMX Receiver/Flight Controller
  • E-flite 1300mAh 3S 11.1V 20C LiPo Battery
  • E-flite DC Charger and AC Adapter
  • Durable EPO airframe with fully painted scale trim scheme

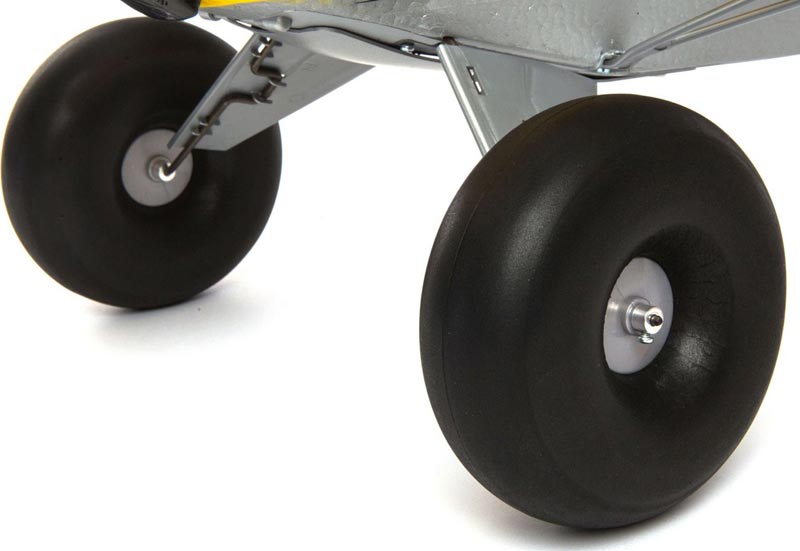

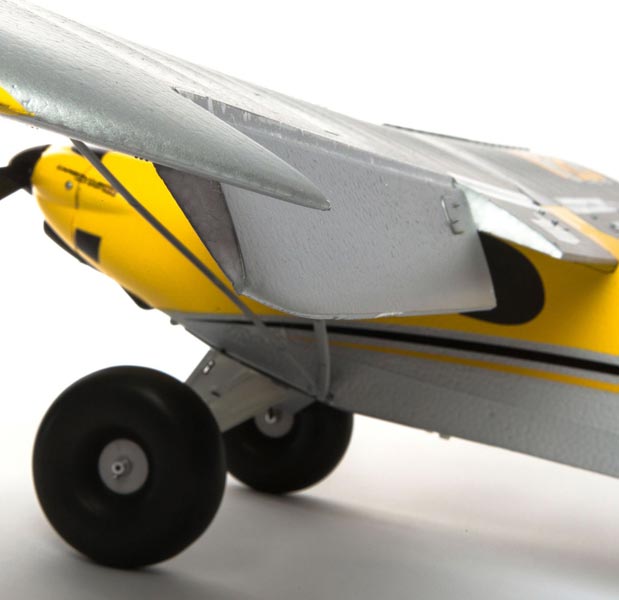

  • Oversized tundra tires for flying from smooth or rough surfaces
  • Optional flaps for shorter takeoffs and landings (requires a 7+ channel programmable radio)

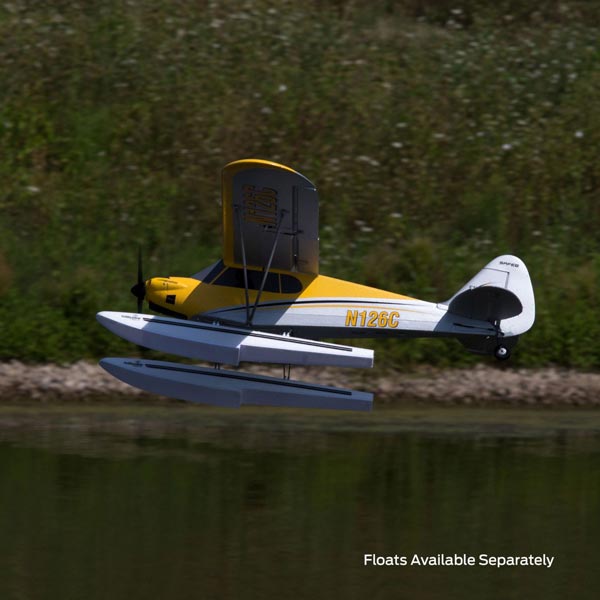

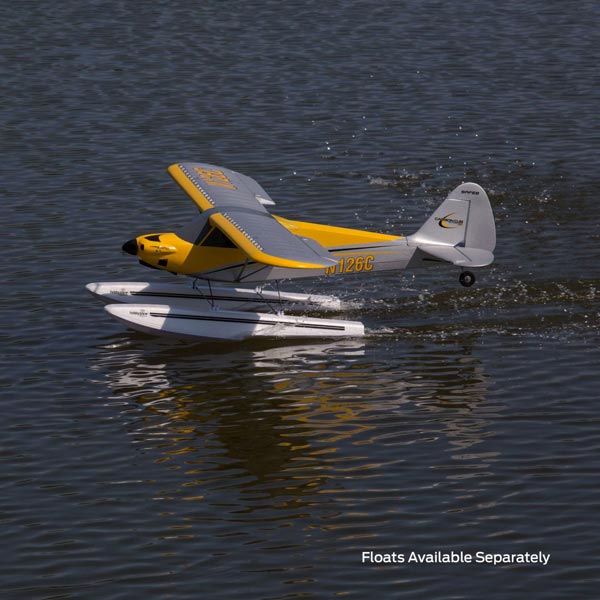

  • Optional floats for flying from water (HBZ7390, sold separately)

Whether you’ve never flown RC before or you got your first taste of flying with a multirotor drone, the revolutionary Carbon Cub S+ is the most versatile, capable and easiest to fly RC airplane yet. Based on the Carbon Cub by Cub Crafters, an upgraded and thoroughly modern iteration of the classic Super Cub, and equipped with Horizon Hobby's exclusive and innovative SAFE® Plus GPS-enabled drone technology, this scale reproduction makes it easier to learn to fly in less time than ever before. Advanced features including AutoLand, Holding Pattern and Virtual Fence make it easy for almost anyone to fly successfully from their very first flight, while additional features including oversized tundra tires and optional flaps and floats offer the capability and versatility to fly from almost any surface, anywhere.

SAFE Plus features and functions include:

AutoLand
When activated after holding down a button, the advanced AutoLand function puts the Carbon Cub S+ on a stabilized approach to autonomously land near the GPS initialization point. You can even provide some directional guidance to avoid obstacles or to adjust the approach while letting the system do the rest to execute a safe landing. As your skills progress and you gain more confidence you can take over more of the control inputs, eventually learning to land without any assistance from the automated system at all.

Holding Pattern
This handy SAFE Plus exclusive feature lets you essentially "pause" a flight by putting the airplane into a GPS-guided holding pattern. When activated after the quick press of a button, the airplane will automatically return to a position above the GPS initialization point and circle until the command is cancelled. It's a great way to safely hand the controls to a friend or to regain visual contact if you ever lose sight of the model.

Virtual Fence
It's easy to accidentally let an RC airplane fly too far away, but with Virtual Fence worry no more because it creates an invisible boundary the airplane won't fly past. When the airplane reaches this boundary it will automatically turn around and fly back toward the GPS initialization point, then it will wag the wings to let you know when you have control again.

Panic Recovery
If you ever lose control of the airplane in the more advanced control modes simply switch to Beginner Mode and release the control sticks. SAFE Plus technology will automatically return the airplane to level flight.

Beginner Mode
Pitch and bank angle limits prevent over-control that can result in a loss of orientation and crashes. When the control sticks are released the airplane returns to level flight on its own. Best of all takeoffs are as simple as giving full throttle and letting the airplane fly off the ground or by giving it a quick hand launch.

Intermediate Mode
More freedom in pitch and bank, but still prevents over-control and does not return to level flight on its own. This mode allows you to make tighter turns and to climb and descend faster as your skills advance. Beginner mode automatically activates and returns the airplane to level flight when the airplane descends below approximately 30 feet above ground level and the sticks are released.

Experienced Mode
No pitch or bank angle limits so you have complete control! You can even fly inverted (upside down) and perform aerobatic maneuvers including loops, rolls, stall turns and more. Panic Recovery Mode can be activated by switching to Beginner Mode and releasing the sticks.

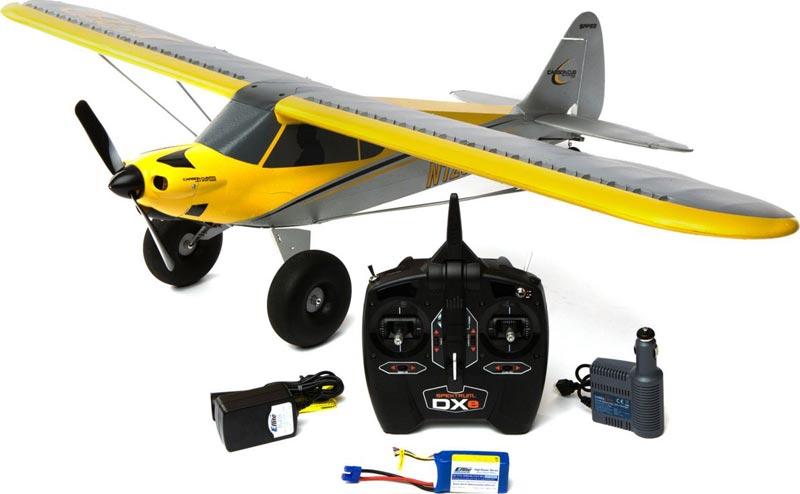

What's in the box?

(1) HobbyZone Carbon Cub S+ 1.3m RTF
(1) Spektrum DXe 2.4GHz Transmitter
(1) Spektrum DSMX Receiver/Flight Controller
(1) Parkzone 18A BL ESC
(1) Parkzone 480 BL Outrunner Motor, 960Kv
(4) Parkzone Servos
(1) E-flite® 1300mAh 3S 11.1V 20C LiPo Battery
(1) E-flite DC Charger and AC Adapter
(1) User Manual
