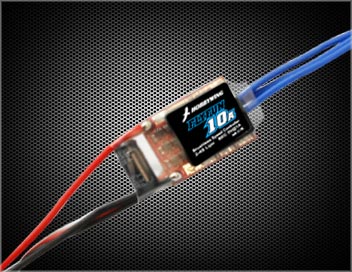

FlyFun 10A V4 ESC 2-4S LiPo
|
click to enlarge
|
More like this... Aircraft Electronic Speed Controls (ESC)
But only from... HOBBYWING
All items from... HOBBYWING
But only from... HOBBYWING
All items from... HOBBYWING
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
10 A
Max Continuous Current:
2-4 cells
LiPo Cells:
5-12 cells
NiMH/NiCd Cells:
5 V
BEC Voltage:
9 g
Weight:
27 mm
Length:
17 mm
Width:
6 mm
Height:
FEATURES
- Safety Arming Feature: Regardless of the throttle stick position, the motor will not spin after battery is connected.
- Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all available transmitters.
- Brake Setting: brake enabled / brake disabled.
- Battery Type:Li-ion or LiPo / NiMh or NiCd
- Low Voltage Protection Mode (Cutoff Mode): Gradually reduce the output power/Cutoff the output power.
- Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
- Start Mode: normal / soft / very soft.
- Timing: low / medium / high.
- Reset: reset all the programmable items to their default settings.
- Full Protection Features: Low voltage cutoff protection / Over-heating protection / Throttle signal lost protection.
- Military standard capacitor with extremely low resistance decreases unwanted RF noise during flying.
- Extreme low resistance PCB helps in producing super current endurance capability.
- Microprocessor uses a separate voltage regulator IC, with great anti-jamming capability.
- Compatible with Hobbywing's Program Card (purchase separately)
