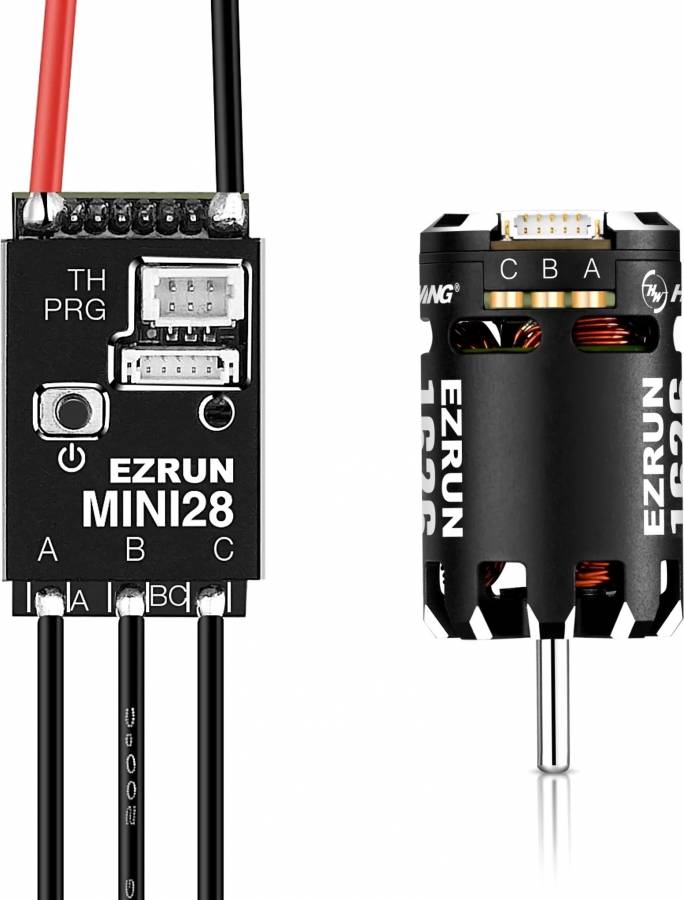

FEATURES
- Improved top speed / Precision response / High efficiency with the cool operation
- When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
- Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and driveability
- Modular detachable structure, convenient for daily cleaning and maintenance.
ESC Specifications:
Part number: 30101300
Technology: Brushless Sensored
Waterproof: No
Cont./Peak Current: 30A/80A
Input Voltage: 2S Lipo
BEC Output: 6V/7.4V @Max 3.5A
Wires & Connectors: Input Wires: 20AWG-55mm *
Output Wires: 22AWG-80mm *
Size & Weight: 22.7x14.2x11.8mm | 5g (without wires)
Applications: Motor: 1626 Size Motors; Vehicle: 1/28th and 1/27th
ESC Programming: LCD G2 Program Box, OTA Programmer, Throttle Wire
Firmware Upgrade: Supported

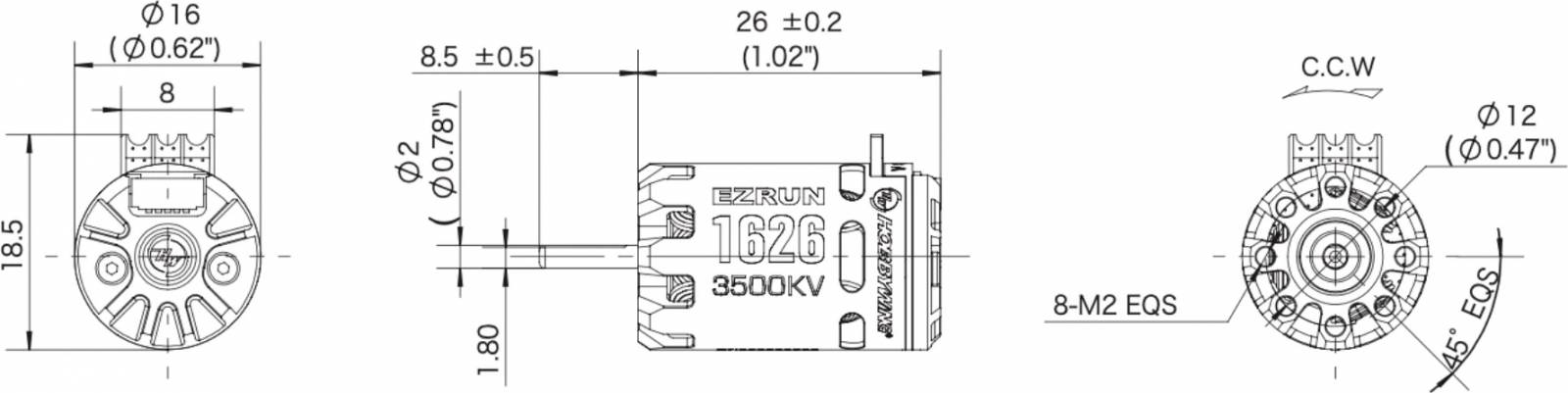

Motor Specifications:
Model: Ezrun 1626-3500KV
PN: 30402653
Pole: 2
KV: 3500KV
No-load Current(A): 0.4A
Input Voltage: 2S
Diameter/ Length(mm): 16
Shaft Diameter/ Length (mm): 26
Applications: 1/28th Mini
Weight: 18g
