FEATURES
- Fully Water-proof and dust-proof, suitable for all-weather races.
- Small in size, with a built-in capacitor module.
- Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
- In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
- Real-Time Adjustment of Drag Braking Force.
- 15 programmable parameter items
- PWM Frequency: 1K/2K/4K/8K/16K Adjustable
- Freewheeling (DEO) capability
- Drag brake rate in 9 levels (adjustable)
- Electronic switch
- Aluminum case for great heat dissipation
- Great current endurance capability.
- Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
- Automatic throttle range calibration, easy to use.
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection, and much more

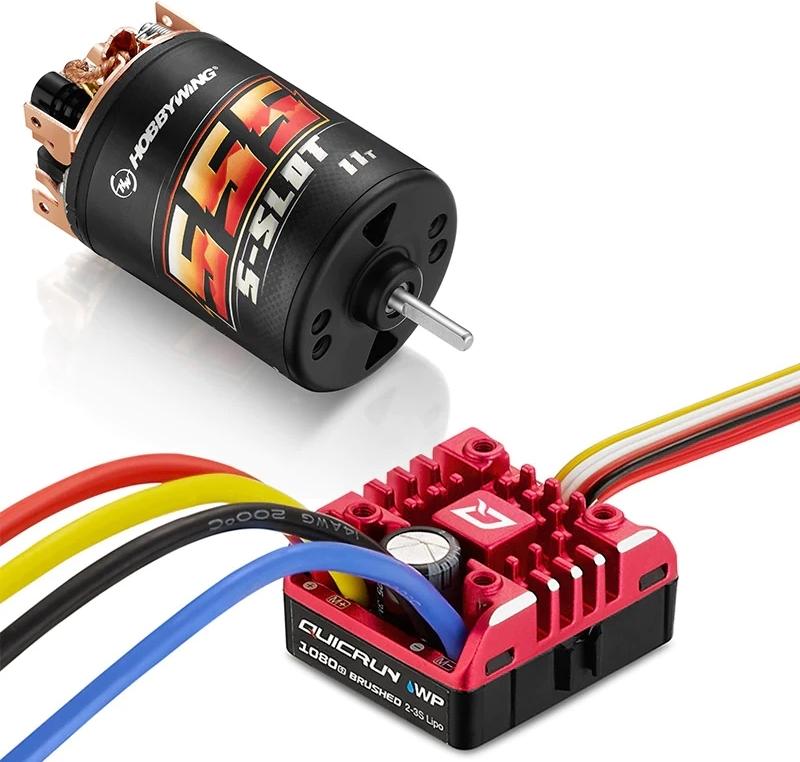

ESC Specifications:
Brushed ESC: WP 1080 G2
p/n: 30120202
Waterproof: Yes
Dual Mode: No
Fwd Cont. / Peak Rev Cont. / Peak: 80A / 400A
Car Applicable: 1/10 Rock Crawler
Motor Limit: Brushed Motors 540/550 Series 2S LiPo or 5S NiMH, =10T or\RPM<3000@7.4V; 3S LiPo or 9S NiMH, =16T or RPM<2000@7.4V
Battery: 2-3S LiPo or 5-9S NiMH
BEC Output: 6V/7.4V/8.4V @ 4A (switch-mode)
PWM Frequency: Adjustable 1K/2K/4K/8K/16K
Wires: 14AWG-200mm w/ XT60 Connector
Size/ Weight: 37.2(L)* 31.9(W)*18.4(H) (without fan)
External Program Port: Separate Port Available
Programming: LED Program card
Weight*: 70.2g w/ wire and connectors
Motor Specifications:
Model: QUICRUN Brushed 540
PN: 30404315
Slot: 5
Turns: 11T
(RPM@7.4V): 17000
Input Voltage: 10V
Diameter/ Length(mm): ?=36mm(1.42in) L=58.5mm(2.30in)
Shaft Diameter/ Length (mm): ?=3.175mm(0.125in) L=16.5mm(0.65in)
Applications: 1/10 Crawler / Short course truck / Monster truck
Weight: 193g
