1/10-1/8th FOC brushless motor (Patented), Waterproof
Motor Diameter: 36.0mm(1.42in)
Length (mm): 57.8mm(2.28in)
Shaft Diameter: 3.175(0.125in)
Pole: 4
IMPORTANT Note:
Xerun AXE series is a closed-system: Due to its advanced technology, HOBBYWING Xerun AXE ESC works exclusively with Xerun AXE brushless motor.

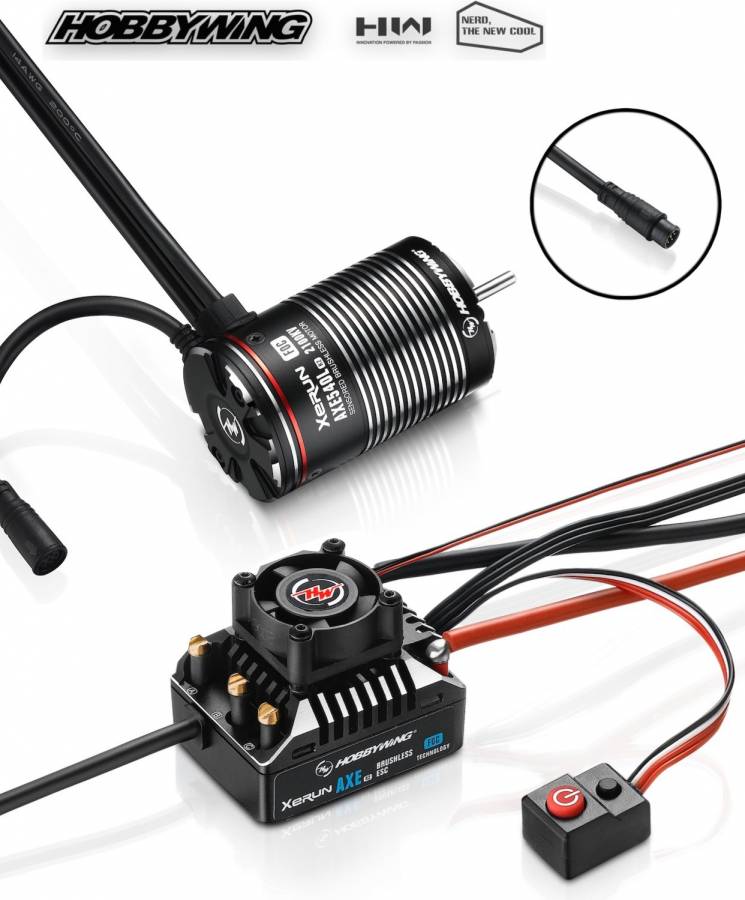

What's in the box:

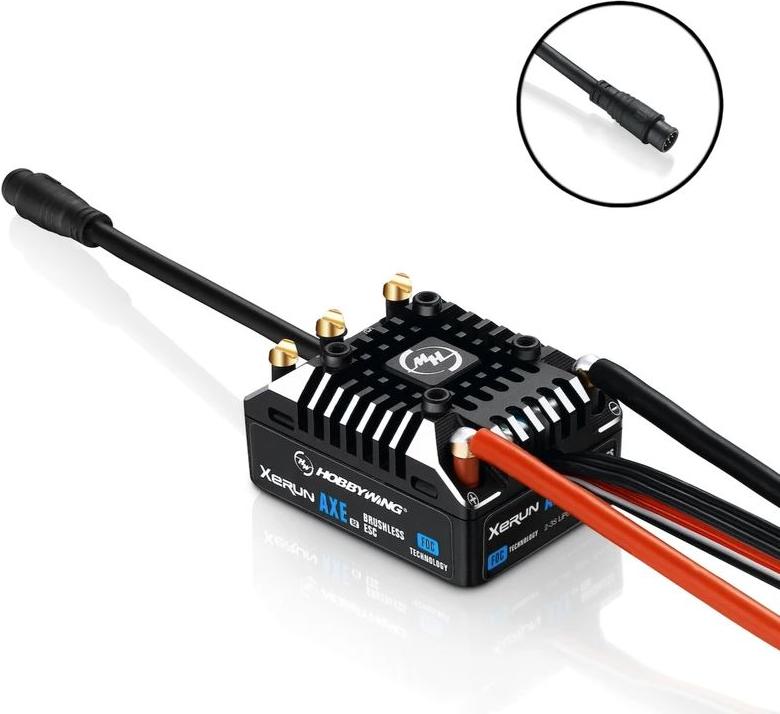

1x AXE R2 FOC ESC
1x AXE 540L FOC motor
Features:
FOC (Field-Oriented Control) for Super Linearity, High Torque, & Quiet Operation.
Chip-type magnetic encoder guarantees consistency between three phases for pure and precise rotor position signals.
Polarity Protection: This is not a typo. No more "oops" moments.
The waterproof design (*IP67 standards) allows the AXE brushless power system to be used in all weather & track conditions (conditions should be monitored closely when running in muddy, wet, or adverse conditions).
Closed-loop control for intelligent torque output & consistent motor RPM under all loads.
Adjustable drag brake & drag brake rate control with the maximum drag brake of up to 200% (that's nearly twice the drag brake of standard brushless systems) can provide unprecedented parking capacity on slopes, with no jerky stops.
Innovative built-in Bluetooth connectivity allows users to read ESC data or update ESC firmware via a smartphone (installed with the HW LINK app).
Hobbywing's "staggered pole" patented motor with 4 poles & 12 magnets, has zero cogging effect & torque ripple. This greatly improves the maneuverability at low speeds.
The sensor harness features a plug-and-screw design, with a silicone O ring inside. This not only provides a firm connection between motor and ESC, but solves the "waterproof" challenge for sensor ports.
The advanced and secure electronic switch features a waterproof, dust-proof, and shock-resistant design.
Multiple protections: low-voltage cutoff, thermal, fail-safe (throttle signal loss), motor lock-up, and overcurrent.
