FEATURES

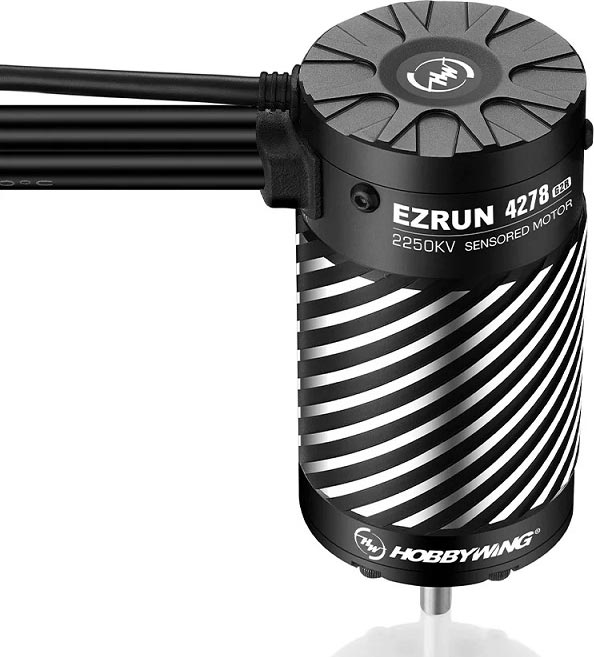

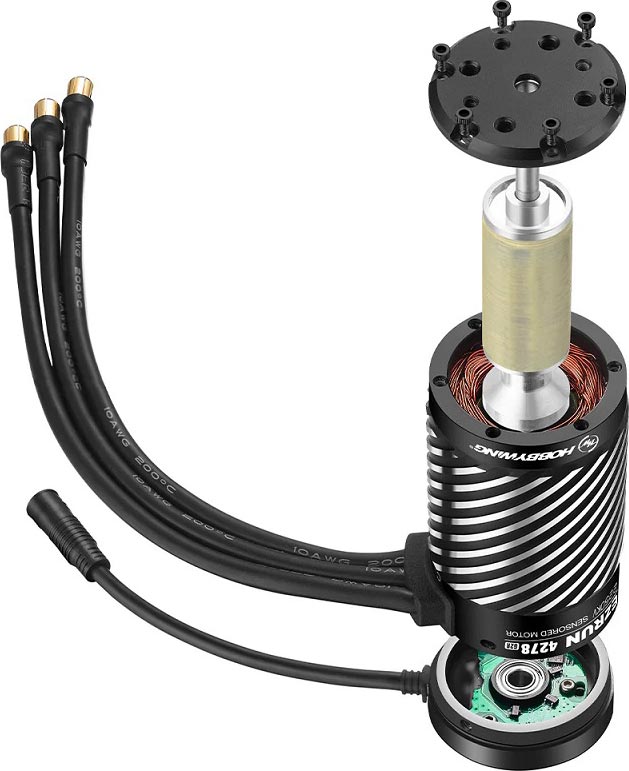

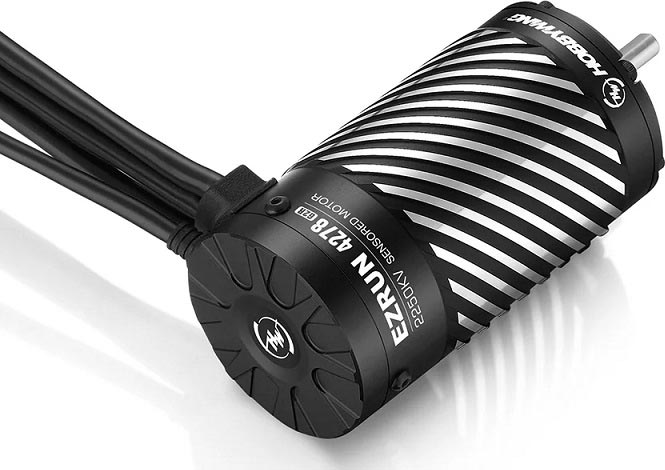

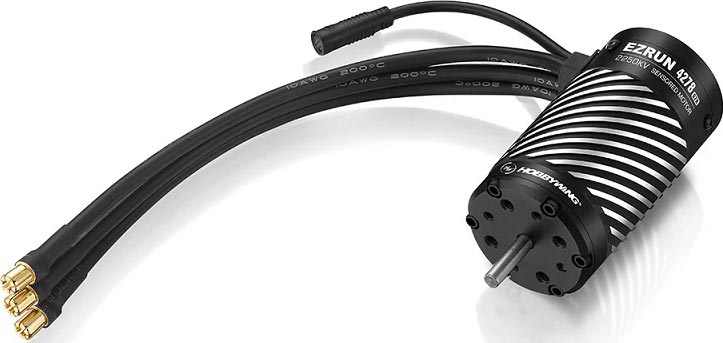

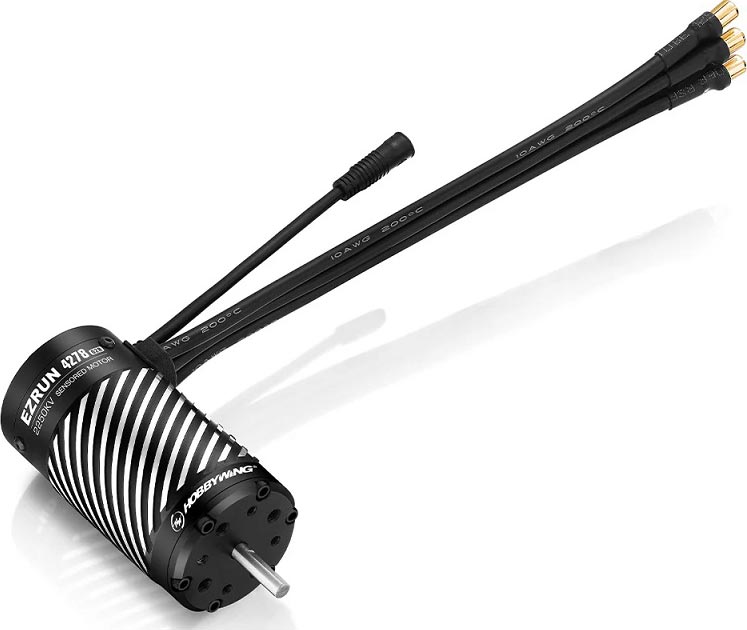

The EzRun MAX 4200 Series G2R Motors are engineered for seamless compatibility with the Hobbywing EZRUN MAX8 G2S ESC. The ESC automatically recognizes the motor, forming a fully sensored power system that enhances control performance, refines handling, and enables motor overheat protection. The rotor is equipped with four high-strength, high-temperature-resistant sintered Nd-Fe-B magnets with widened magnetic tiles, ensuring exceptional torque, explosive power, and stable output. An independent magnetic ring guarantees that the Hall sensor consistently delivers a pure rotor position signal, effectively minimizing sensor signal interference for stable operation in sensor mode. Designed for efficiency, this motor runs cooler and generates more power under the same load. Its robust construction includes a CNC-machined aluminum housing, high-purity copper windings, an advanced rotor structure, 0.2mm silicon steel laminations, a high-quality stainless steel output shaft, and high-precision bearings, all contributing to enhanced durability and smooth performance. Additionally, an innovative new sensor interface and rubber-covered bearings provide superior waterproofing and dustproofing compared to traditional sensored motors, ensuring reliability in various conditions.
