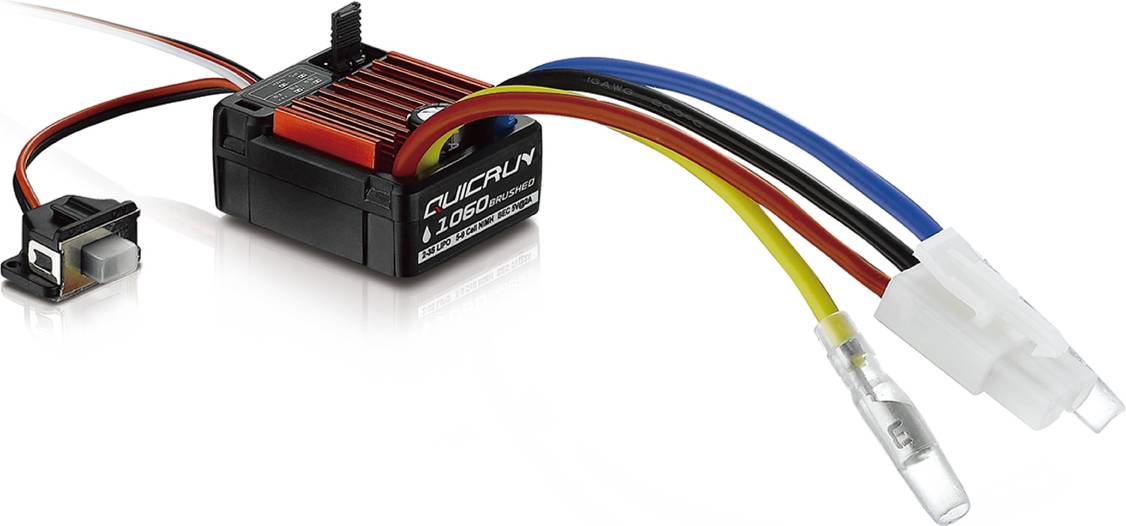

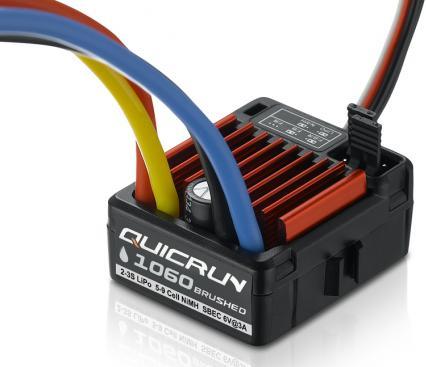

QuicRun 1060 Waterproof Brushed ESC (1/10)
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
Discontinued
|
click to enlarge
|
More like this... Car Electronic Speed Controls (ESC)
But only from... HOBBYWING
All items from... HOBBYWING
But only from... HOBBYWING
All items from... HOBBYWING
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
60 A
Max Continuous Current FWD:
30 A
Max Continuous Current REV:
6.0v V
BEC Voltage:
3.0 A (peak) @ 6.0 V
Max BEC Output:
0.001 mOhms
On Resistance:
39 g
Weight:
35.5 mm
Length:
32.18 mm
Width:
18 mm
Height:
2-3 cells
LiPo Cells:
6-9 cells
NiMH/NiCd Cells:
Tamiya
Battery Connector:
Bullet
Motor Connector:
FEATURES
- Water-proof and dust-proof, suitable for all weather races.
- Small size, with built-in capacitor module.
- Fwd/Rev/Br running mode fits various vehicles
- Great current endurance capability.
- Great built-in BEC output capacity.
- Automatic throttle range calibration, easy to use.
- ESC parameters are easy to set with jumpers.
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection.
The perfect brushed ESC for your 1/10 or 1/12 scale car or truck. This unit is waterproof and is equipped with Tamiya battery plug and is the perfect drop in ESC.
550/540 motor limit for 2S or 6-Cell NiMH is 12T or greater. 3S or 9-Cell NiMh is 18T or greater.
