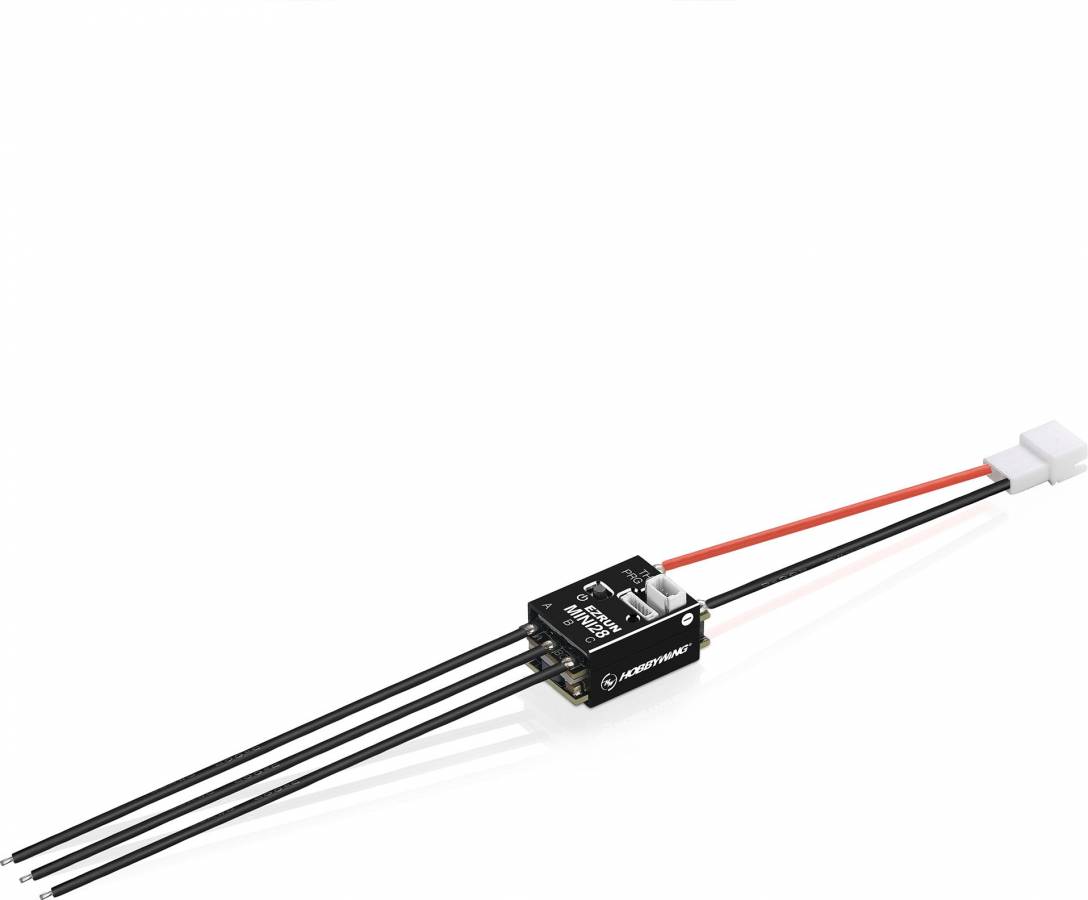

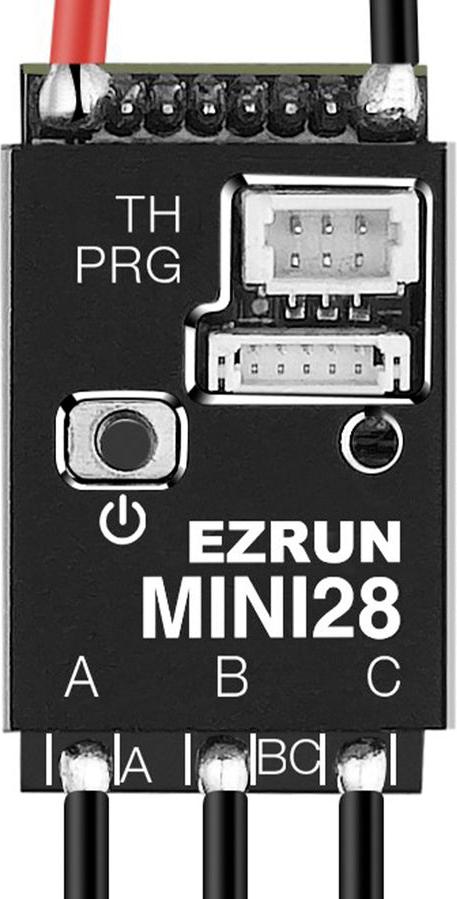

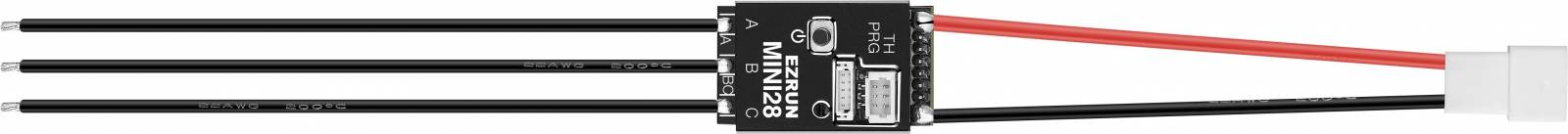

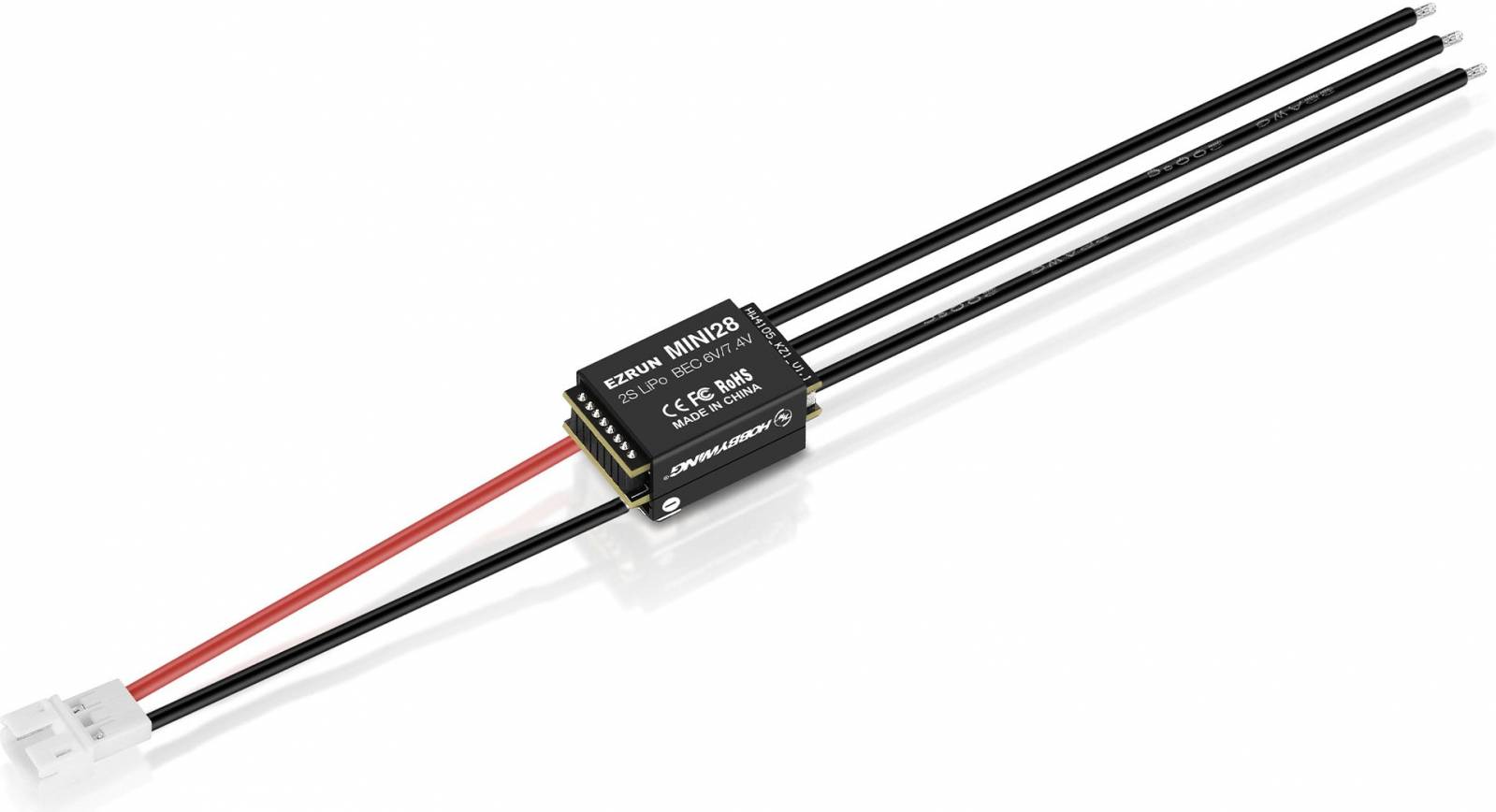

EZRUN Mini28 Mini-Z Sensored Brushless ESC 1/28
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Car Electronic Speed Controls (ESC)
But only from... HOBBYWING
All items from... HOBBYWING
But only from... HOBBYWING
All items from... HOBBYWING
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Mini-Z Speed Control
Type:
30 A
Max Continuous Current:
80 A
Max Burst Current:
1626 Size Motors
Compatible Motors:
No
Waterproof:
2 cells
LiPo Cells:
6/7.4 V
BEC Voltage:
3.5 A (peak)
Max BEC Output:
FEATURES
The powerful software and hardware built into the Mini28 ESC. It features new programmable parameters and is optimized for 1/28th scale RC like the Kyosho Mini-Z series
The ESC is equipped with 26 adjustable parameter items;
including PWM frequency, brake frequency, softening, Boost,
Turbo, and more.
The software parameters are inherited from the proven World championship winning ESC from the XR10 pro series. They can accurately adjust the power demand and let racers enjoy the ultimate control experience.
The ESC has a built-in BEC which can support a maximum output current of up to 8A and the output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.
click image to enlarge
ADDITIONAL PHOTOS
|
|
|
PRODUCT RESOURCES
088718505536 0088718505536
HWI30101300
