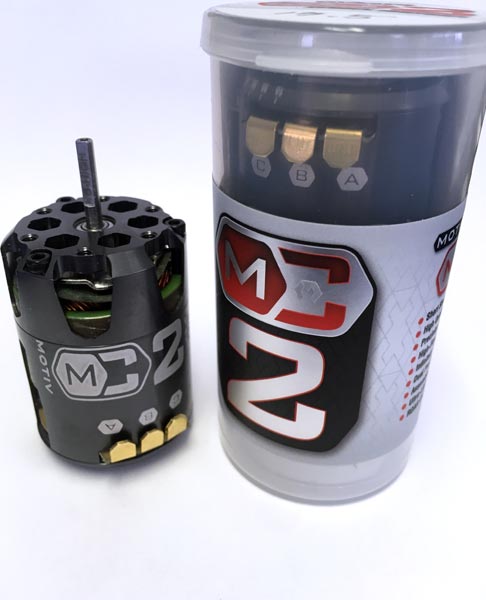

MC2 17.5T Sensored Brushless Motor 2 Pole

Every MOTIV Motor is hand checked, assembled, and packaged by a professional in house at the WI, USA office. During this process, it is required that each part must meet strict criteria before it is cleared for assembly and eventual packaging.
Included with each M-CODE motor is an Analysis & Quality Control spec sheet. This Sheet is filled out on a motor to motor basis all threw the Testing and assembly and includes information unique to your M-CODE motor, this process allows us to have quality control which blankets each and every motor sold, and we feel that the ultimate result is a product which is second to none in the industry.

M-CODE FEATURES

STATOR

- Short stack design for low resistance

- Specially selected stator material for low power loss

-High quality pure copper wire

-Emphasis on hand winding for consistency across all three poles

SOLDER TABS

-Gold plated pure copper tabs for low resistance and efficient operation

-Special internal "Drop Connection" design to ensure low resistance and consistent internal solder joints

ROTOR

-Sintered rotor

-High quality neodymium magnet material for lasting magnetism

CAN ASSEMBLY

-High flow vent holes to allow air flow in and out for lower operating temps

-Machined all aluminum anodized can, front plate and end bell

-Infinitely adjustable timing

-Dual precision ball bearings

OVERALL

-Every motor tested in house during the assembly and packaging process

-Designed to comply with ROAR specifications

-Ultra lightweight completed design

-Packaged in an air tight reusable storage container to keep your “M-Code” safe from all elements
