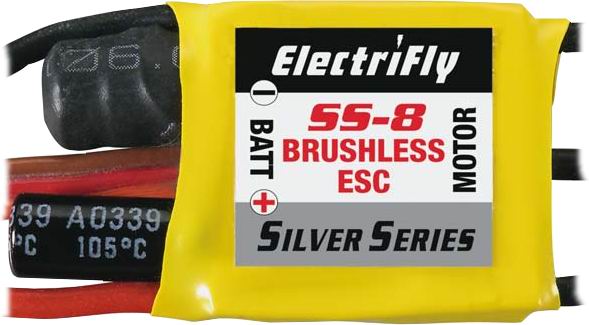

ESC SS-8 Brushless w/BEC
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Aircraft Electronic Speed Controls (ESC)
But only from... GREAT PLANES
All items from... GREAT PLANES
But only from... GREAT PLANES
All items from... GREAT PLANES
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
6-12 Cells
NiCd/NiMH Cells:
2-4 Cells
LiPo:
8 A
Max Output:
5V/1.5A
BEC:
100 watts
Max Output:
8.5 kHz fixed
Operating Frequency:
0.05 ohms
On-resistance:
On/Off
Brake:
battery voltage x 0.67
Voltage Cutoff:
110 °C
Thermal Cutoff:
0.39 oz
Weight:
FEATURES
- For small flat-foamies and built-up 3D airplanes
- Great for outrunner brushless motors
- Delivers 8A continuous current 10A surge currents
- Includes a powerful 1.5A BEC
- Very simple to use and safe-start
Li-Po Compatible
The Silver Series speed controls for brushless motors are compatible with NiCd, NiMH and Li-Po type battery packs. The feature pre-installed Deans battery connectors and gold-plated bullet plugs for motor connections. In addition, they come pre-wired with universal radio connectors.
Zero Setup
These speed controllers are so advanced that they require no setup! They automatically detect battery type and input voltage at hookup. This sets the low-voltage cutoff automatically.
Tech Note
There may be an incompatibility issue using ElectriFly Silver Series brushless ESC's with some AXI brushless motors.
