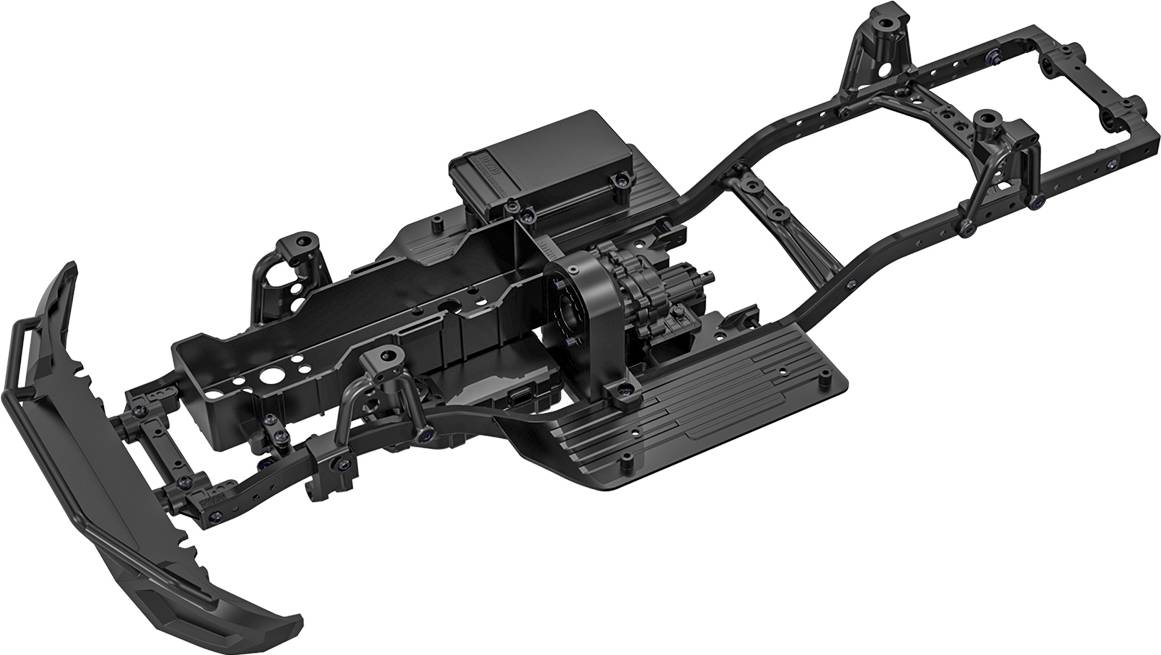

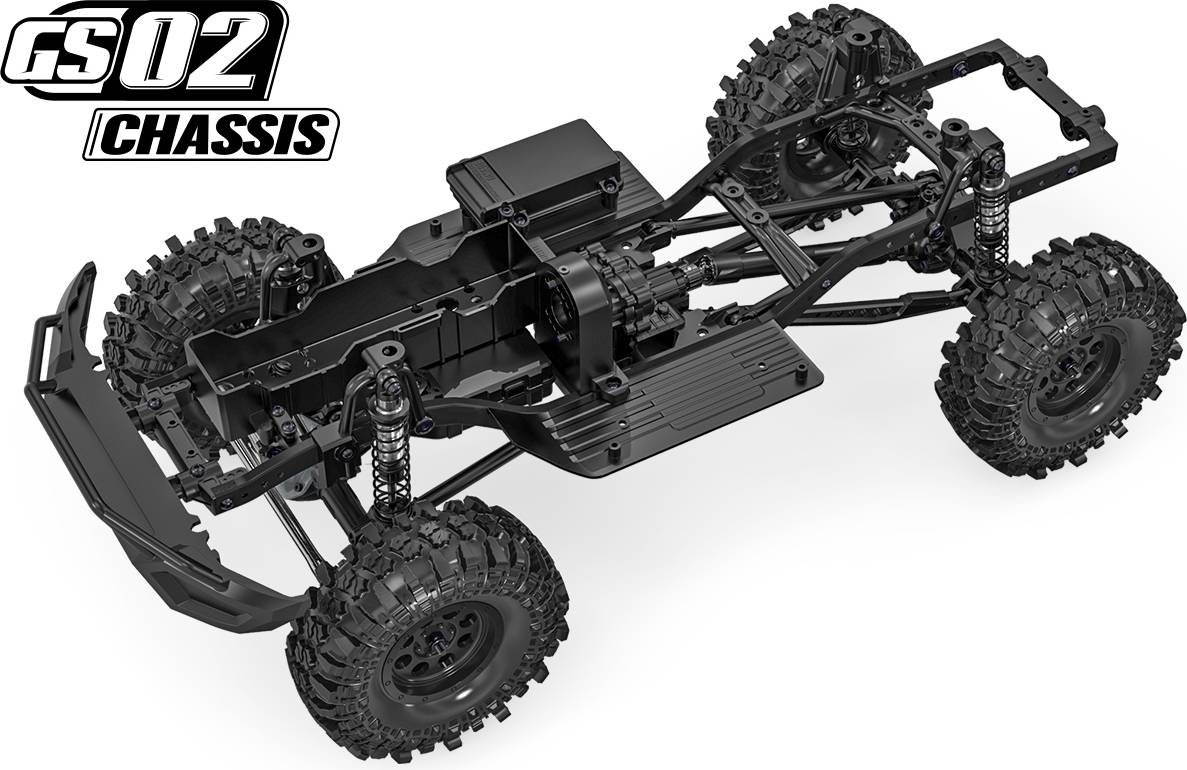

STEEL LADDER FRAME

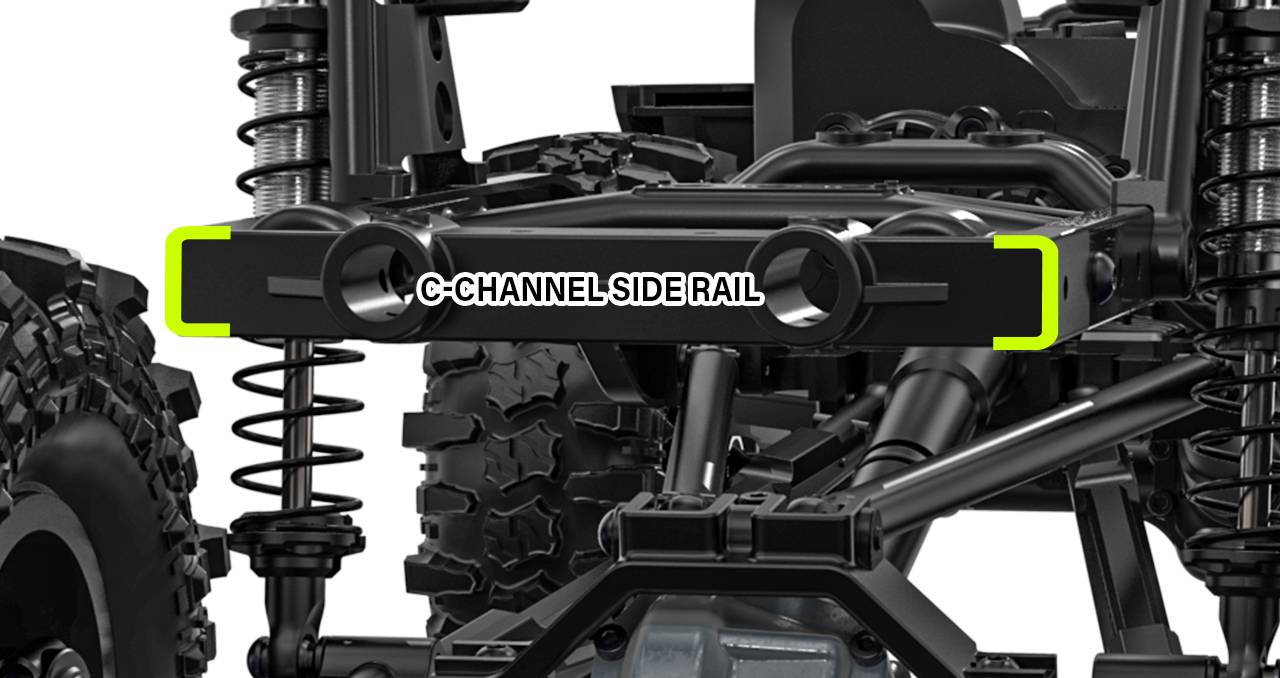

GS02 frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting or wraping.
Also, steel parts are black powder coated finish to prevent rust.

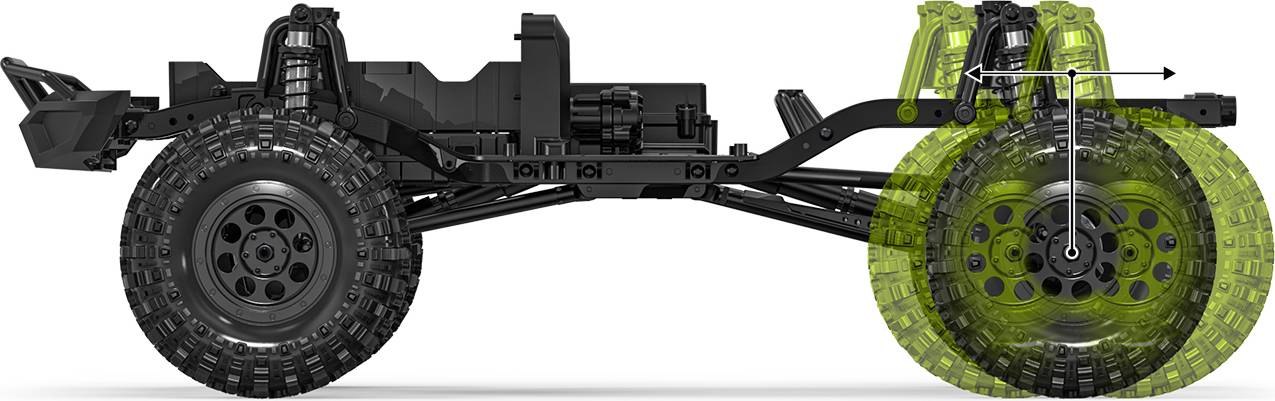

ADJUSTABLE WHEELBASE
GS02 chassis allows three type of easy adjustment of wheelbase convert kit to use any type of 300, 313 and 324mm custom bodies. (optional link kits are sold separately)

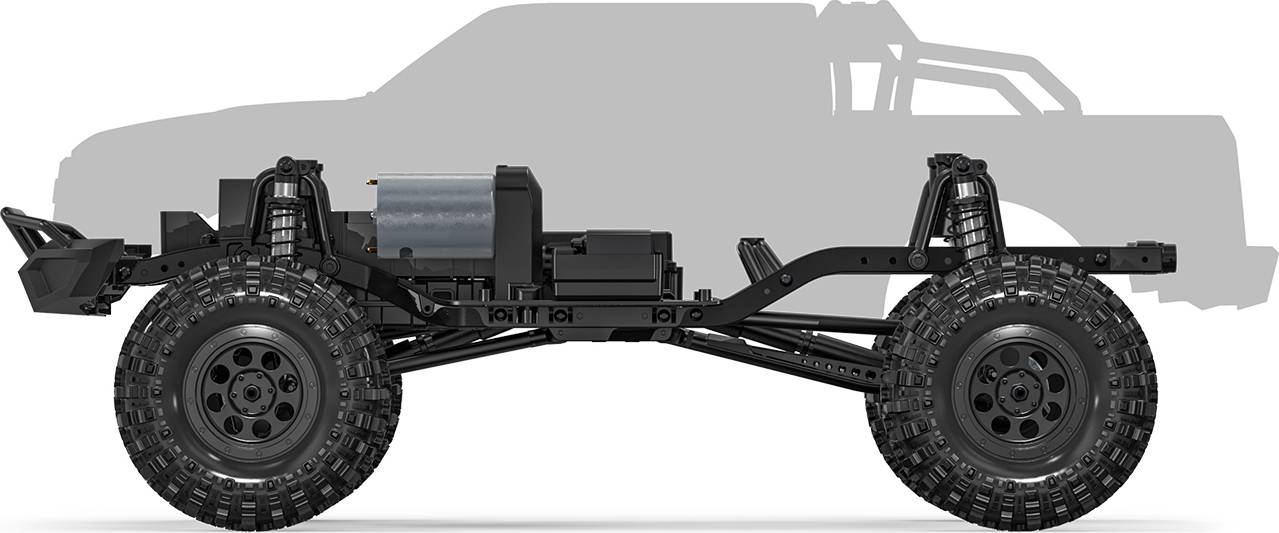

FRONT WEIGHT BALANCE
Komodo double cab's weight balance designed to be placed on the forward of the car.
This will increase the tire tracktion to the front wheel to provide better crawling on a high tilt angle rocks and better driving performance when hill climbing and this will help minimizing the vehicle's rolling over when climbing.

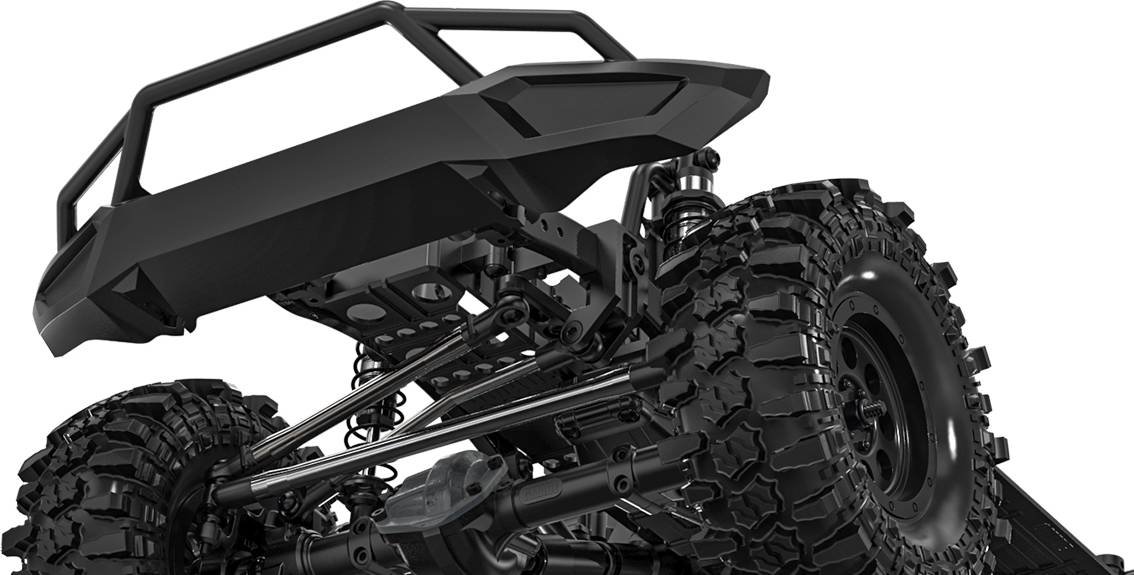

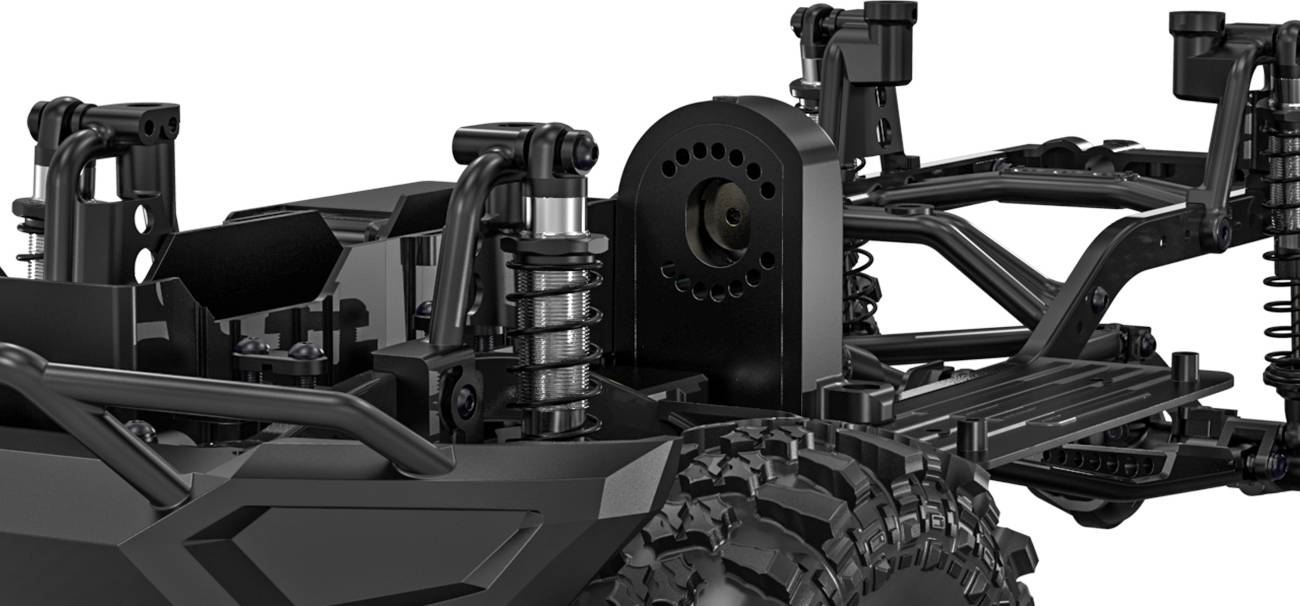

CHASSIS MOUNTED SERVO SYSTEM WITH PANHARD BAR
Komodo double cab's steering system has a steering servo on the frame just like a 1:1 real car.
It is designed to make it as closed to the zero bump steer so bump steer movement does not appear by front wheel suspension movements, so we ended up with maximizing the steering performance of the vehicle.
In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss

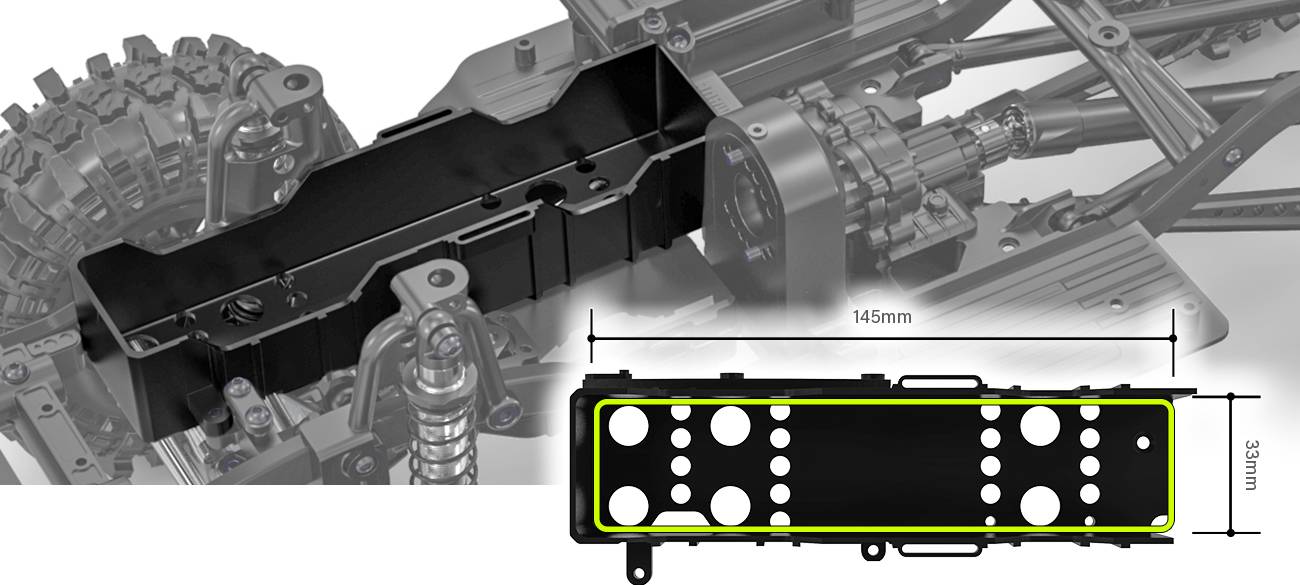

BATTERY TRAY
The battery can be easily replaced and can accommodate up to 7,600mAh 2-cell Lipo batteries or 5,000mAh 3-cell Lipo batteries. (7,600mAh 2-cell LiPo or 5,000mAh 3-cell LiPo

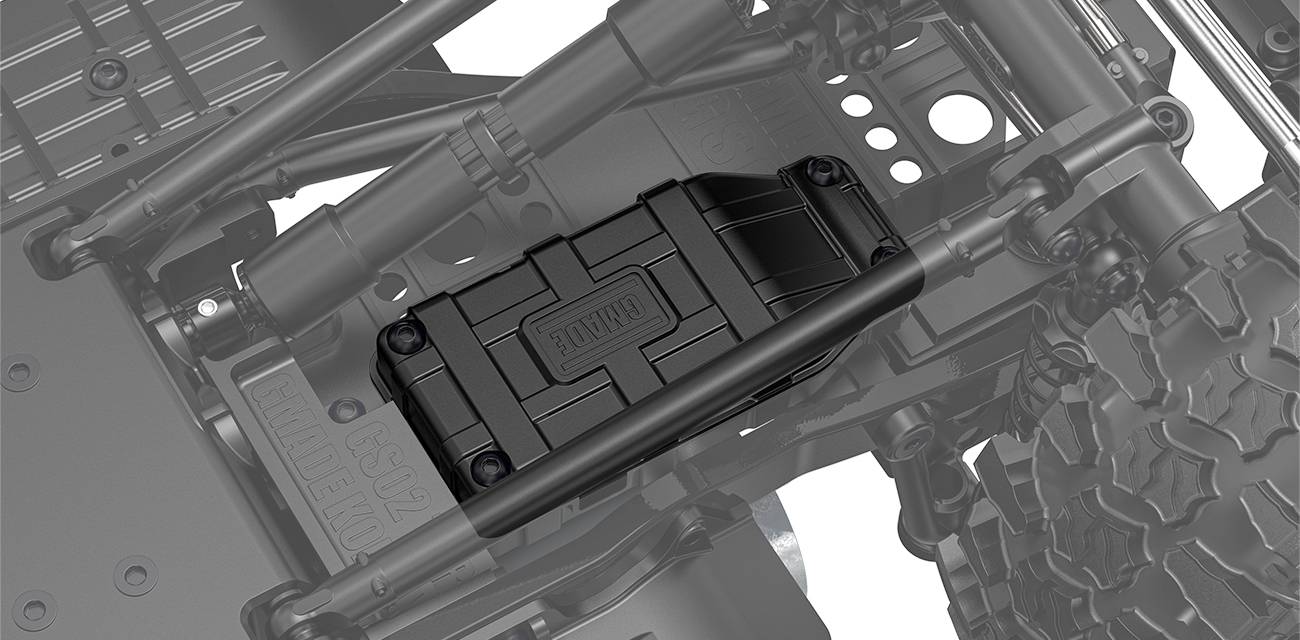

DUST PROOF ELECTRONICS BOX
It protects electronic equipments such as winch controllers and BEC, which are often used for scale trucks, from foreign substances.

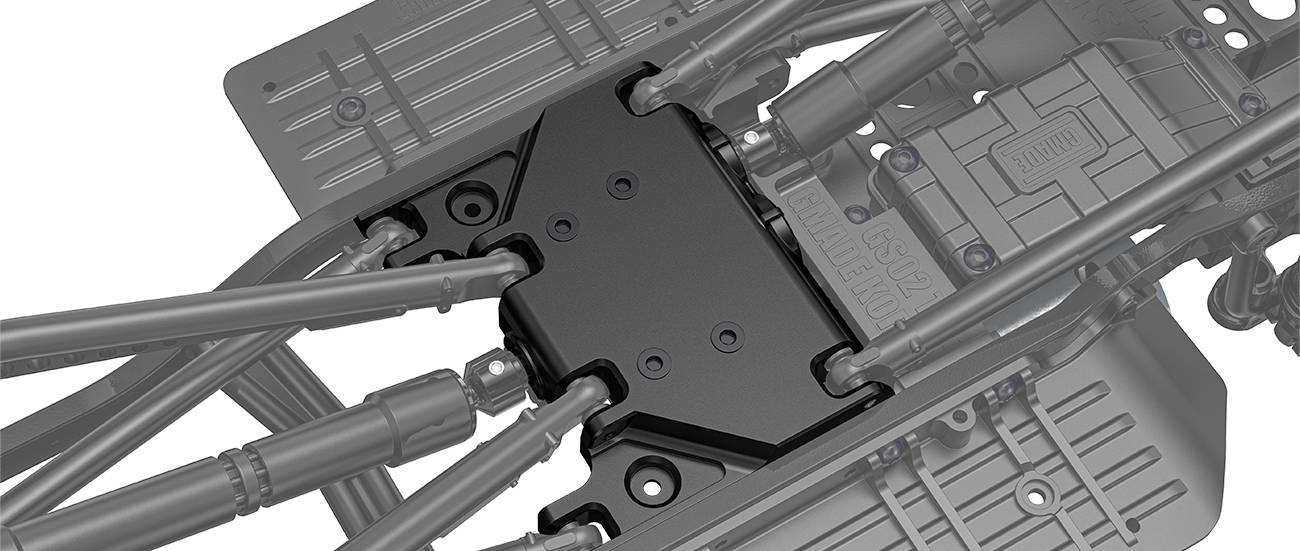

SKID PLATE
The skid plate protects the transmission and other critical components by the flat surface that allows the Komodo double cab to slip and ride on rocks and other obstacles easily.
