R1 Rock Crawler Kit Black

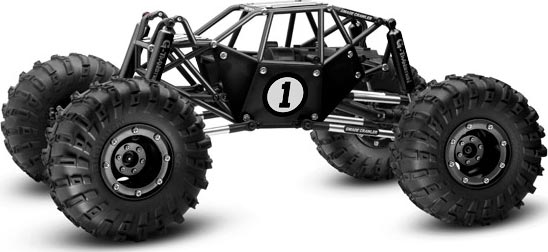

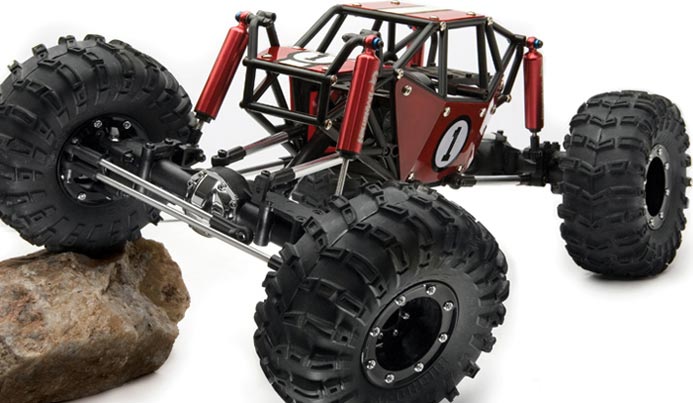

The GMADE R1 Rock Crawler Buggy is an almost ready to run rock crawlin' buggy. This kit is pre-assembled, but requires electronics (servo,radio,receiver,speed control, motor and battery).

GMADE is known world-wide for their design innovation and high quality. The R1 features a ton of high-tec, well made features including: the tube frame, the transmission, the once piece portal axle, the 4-link suspension, the G-transition shock, the GT beadlock wheels and the Bighorn Tires. All these make for a super rugged crawler that can take on the toughest conditions.

Tube Frame

• Tube frame design, based on a full scale crawler -- light and durable
• Adjustable shock mounting for fine-tuning the suspension
• Easy to assemble and Maintain

Transmission

• Perfectly sealed for dustproof effect
• Full ball bearings placed at all the axis of the gears
• Motor mount cap can be opened or closed for backlash adjustment

Portal Axle

• One piece axle housing
• Drive axles are above the center of the wheels -- greater ground clearance

G-Transition Shock

• Fully adjustable
• Anodized aluminum shock body
• 3.5mm thick shock shafts
• Anodized aluminum upper and lower shock end balls

Big Horn Tires

• Large, deep lugs provide exceptional traction in rock, mud and dirt.

Items Need to Complete

• Servo
• Radio
• Receiver
• Speed Control
• Motor
• Battery

Features

• Full ball bearings
• One piece portal axles
• All-in-one body and tube frame
• Adjustable, aluminum oil-filled shocks
• Dual sided bead-lock wheels
• Four link suspension
• 4WD shaft drive transmission
• Excellent Tire Traction

Specs

Width : 11.4 inches (290mm)
Height: 7.5 inches (190mm)
Length: 17.3 inches (440mm)
Wheelbase: 12.2 inches (310mm)
Wheels: 2.2 inches (56mm)
Tires: Height: 5.3 inches / Width 2.3 inches / Inner Diameter 2.2 inches
Axle Ground Clearance: 3 inches - Droop Set-up
Axle Ground Clearance: 3.7 inches - Spring Set-up
