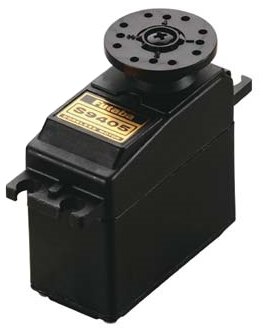

Servo - Coreless BB Hi-Torq MG
![]() |
|
Discontinued
|
![]() |
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
SPECIFICATIONS

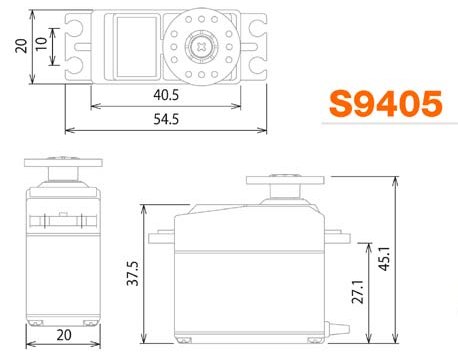

1.6 x 0.8 x 1.5 in
Dimensions:
1.9 oz
Weight:
79.9 oz-in
Torque @ 4.8V:
99.9 oz-in
Torque @ 6.0V:
0.14 sec/60°
Speed @ 4.8V:
0.11 sec/60°
Speed @ 6.0V:
FEATURES
- Dual Ball Bearing
- Metal Gears
- Water Resistant
- Coreless Motor
A note on coreless motors
A conventional servo motor has a steel core armature wrapped with wire that spins inside the magnets. In a coreless design, the armature uses a wire mesh that forms a cup that spins around the outside of the magnet. This arrangement is much lighter resulting in smoother operation and faster response time.
