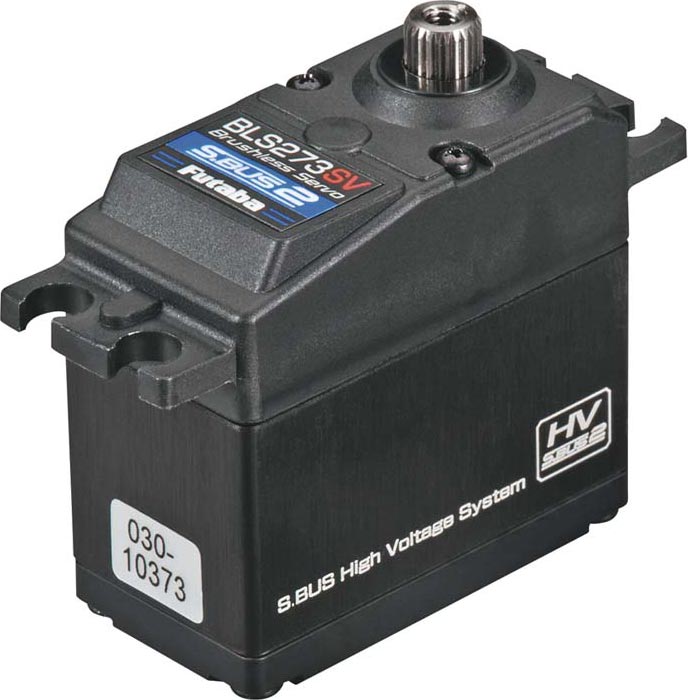

Servo S-Bus2 HV Helicopter Flybarless
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
40.5 mm
Length:
21 mm
Width:
38.4 mm
Height:
72 g
Weight:
13.6 kg-cm (188.9 oz-in)
Torque @ 6.6V:
0.08 sec/60°
Speed @ 6.6V:
15.2 kg-cm (211.1 oz-in)
Torque @ 7.4V:
0.07 sec/60°
Speed @ 7.4V:
4513886207020 4513886207020
01102173-1
