FUT26SZAB

T26SZ 26-Channel 2.4GHz Aircraft Radio FASSTest w/R7214SB

Product Info
FUTABA

FUT26SZAB
T26SZ 26-Channel 2.4GHz Aircraft Radio FASSTest w/R7214SB
By FUTABA
$2,229.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... 9-Ch & Up Spread Spectrum Aircraft Radio Systems
But only from... FUTABA
All items from... FUTABA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$2,229.99
Warehouse ?
StockStock availability for pick up
0
$2,229.99
Warehouse ?
0
$2,229.99
Store - Stratford ?
0
$2,229.99
Store - Edmonton ?
0
$2,229.99
Store - Mississauga ?
0
$2,229.99
Store - Ottawa ?
0
$2,229.99
Store - Oshawa ?
0
$2,229.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
26 Channels
Channels:
2.4 GHz
Band:

FEATURES

FASSTEST SYSTEM: The 26SZ transmitter has adopted the bidirectional communication system "FASSTest". Data from the receiver can be checked in your transmitter. FASSTest is a dedicated system with a maximum of 26 channels and 2.4 GHz.

COLOR TOUCH SCREEN LCD: T26SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

S.BUS2 SYSTEM: Using the S.Bus2 system, multiple servos, gyros, and telemetry sensors can be easily installed with a minimum of cables.

MODEL TYPES: Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.

LIFE BATTERY: The 26SZ is operated by a 6.6 V/2,100 mAh Lithium Ferrite battery.

SD CARD (NOT INCLUDED): Model data can be saved to an SD card (SD: 32MB - 2GB, SDHC: 4GB-32GB). When T26SZ transmitter software files are released, the software can be updated by using an SD card update.

EDIT BUTTON: Two edit buttons are provided, and the operating screen can be immediately "Returned" to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.

VIBRATION FUNCTION: Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.

SPEECH FUNCTION: A function is equipped to allow the system to provide audible telemetry data. This function can also be utilized with commercially available earphones.

Includes:

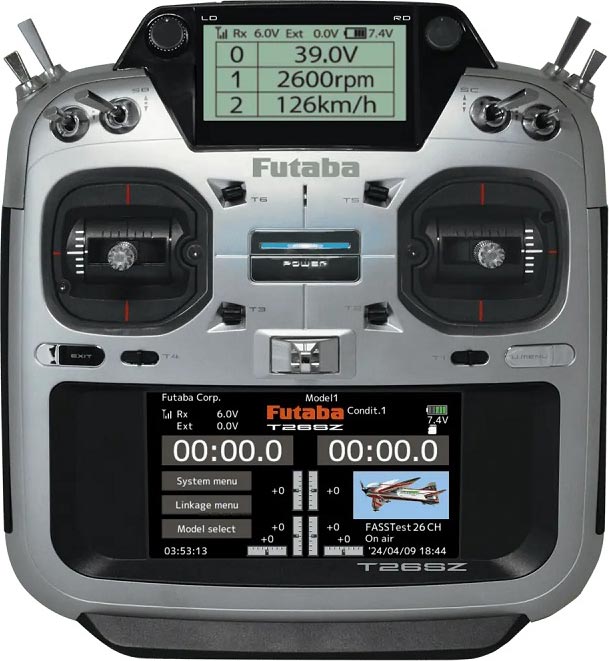

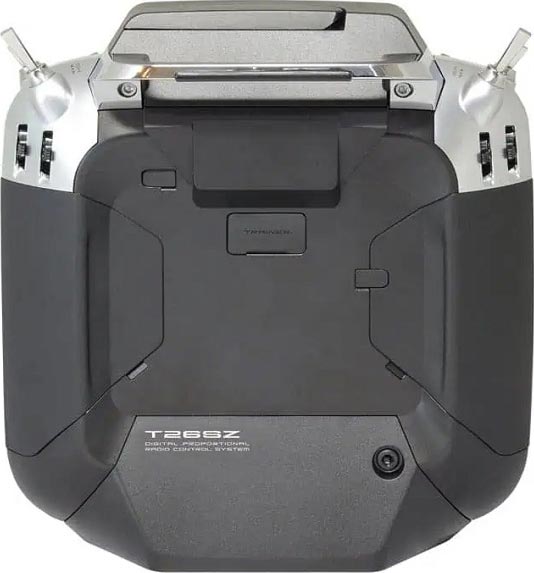

T26SZ Transmitter
Air Version includes ratcheting throttle

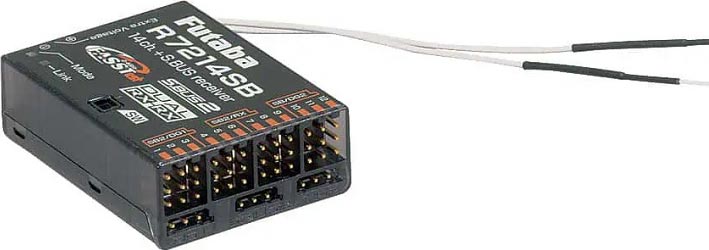

R7214SB receiver
LT2F2000 Battery
Switch Harness
Mini Driver
