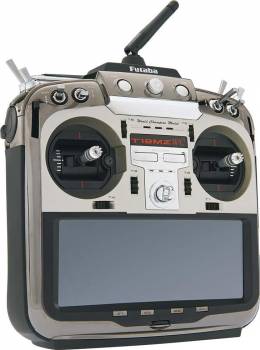

18MZA WC 18Ch Aircraft Radio w/R7008SB Rx

Its performance features are every bit as impressive as its looks â?? which means the 18MZ WC is a radio that stands out in every way imaginable. The transmitter's gleaming black chrome finish is a real eye-catcher, and updated software takes telemetry to new heights.

After Christophe Paysant Le-Roux won the 2015 F3A World Championships using an 18MZ, he collaborated with Futaba engineers to design the 18MZ WC. The World Champion version can also be used with FASSTest, FASST and S-FHSS equipment â?? and it's compatible with T-FHSS protocol and all Futaba T-FHSS receivers.

• Channels: 16 proportional, 2 switched
• Compatible with:
  • FASSTest, FASST, S-FHSS and T-FHSS protocols
  • Futaba HV (High-Voltage) receivers
  • All Futaba telemetry sensors
• Free online software upgrades
• Free online software upgrades
• 92MB internal memory
• Expandable model memory
• 32-character user naming
• 32-character model naming
• Airplane, helicopter, glider and motor glider programming
• 3 assignable rotary knobs
• 4 assignable slider switches (2/side)
• 5 assignable three-position switches
• 2 assignable two-position switches
• 1 assignable momentary two-position switch
• Dual, high-speed processors
• Earphone jack
• 0.3 megapixel camera
• Audio & Video players
• Built-in microphone
• Programming tools for S.Bus servos & gyros
• Easy Link ID touch screen
• Comfortable rubber grips on the sides and back
• Slick calibration, plus tension and angle adjustments
• Quad bearing gimbals
• Quick model select
• Servo monitor (neutral and moving tests)
• 2 up/down timers
• Integral timer system
• Model timer
• 4 vibration warning options (battery, condition, trim mix 1 & 2)
• Programmable trainer system
• Servo speed adjust
• Trim mix
• Programmable logic switches
• User menu
• Sub-trim (240 steps; channels 1-16)
• Servo reversing (all channels)
• Fail-Safe (all channels)
• Battery fail-safe (all linear channels)
• Endpoint Adjustment (all channels)
• Trim (adjustable step, rate & mode)
• Flight conditions
• AFR
• AFR curve mode (6)
• AFR curve point number (15)

Airplane programming features

• 8 flight conditions
• 15 factory-programmed mixes
  • Flap setting menu
  • Differential ailerons
  • Aileron to camber flap mixing
  • Aileron to brake flap mixing
  • Aileron to rudder mixing
  • Airbrake to elevon Mixing
  • Rudder to ailevator mixing
  • Rudder to elevator mixing
  • Camber mixing
  • Elevator to camber mixing
  • Camber flap to elevator mixing
  • Snap roll mixing
  • Airbrake mixing
  • V-Tail mixing
  • Motor mixing
  • Fuel mixture
  • Multi-Engine mixing
  • Gyro mixing

• 10 programmable mixes

• 13 wing types

1. Standard
a. 1 aileron
b. 2 aileron
c. 2 aileron + flap
d. 2 aileron + 2 flap
e. 2 aileron + 4 flap
f. 4 aileron + 2 flap
g. 4 aileron + 4 flap


2. Flying Wing
a. 2 aileron
b. 2 aileron + flap
c. 2 aileron + 2 flap
d. 2 aileron + 4 flap
e. 4 aileron + 2 flap
f. 4 aileron + 4 flap

• 3 tail types (normal; V-Tail; ailevator)

• plus throttle cut and idle down

Helicopter programming features

• 8 flight conditions
• 5 factory-programmed mixes
  • Swash mixing
  • Throttle mixing
  • Pitch to needle mixing
  • Pitch to rudder mixing
  • Fuel mixture
• 10 programmable mixes
• 8 swash plate types
  Plus
  • Pitch/throttle curves (17-point)
  • Pitch/throttle curve modes (6)
  • Acceleration
  • Throttle hold
  • Gyro sense
  • Flybarless support
  • Governor
  • Condition hold
  • Hovering pitch
  • Hover throttle
  • High/low pitch
  • Swash AFR
  • Swash setting (mixing rate, plus linkage & speed compensation)
  • Swash ring
  • Throttle limiter
  • Idle down

Glider and Motor Glider programming features

• 8 flight conditions
• 12 factory-programmed mixes
  • Flap setting menu
  • Differential ailerons
  • Aileron to rudder mixing
  • Rudder to aileron mixing
  • Rudder to aileron mixing
  • Airbrake to elevator mixing
  • Camber mixing
  • Elevator to camber mixing
  • Camber flap to elevator mixing
  • Butterfly mixing
  • Trim Mix 1 & 2
  • V-Tail mixing
  • Motor mixing
• 10 programmable mixes
• 13 wing types
  1. Standard
  a. 1 aileron
  b. 2 aileron
  c. 2 aileron + flap
  d. 2 aileron + 2 flap
  e. 2 aileron + 4 flap
  f. 4 aileron + 2 flap
  g. 4 aileron + 4 flap


  2. Flying Wing
  a. 2 aileron
  b. 2 aileron + flap
  c. 2 aileron + 2 flap
  d. 2 aileron + 4 flap
  e. 4 aileron + 2 flap
  f. 4 aileron + 4 flap


• 3 tail types (normal; V-Tail; ailevator)
