FEATURES

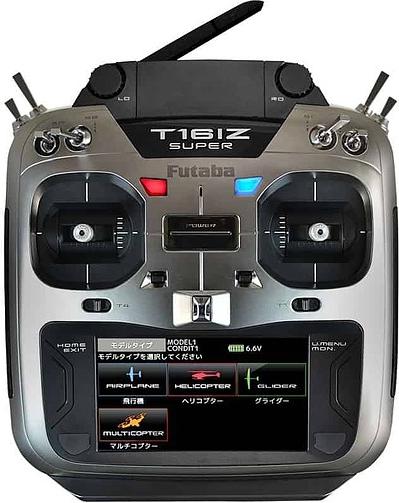

16IZS Transmitter - 18-Channel Computer System 2-Stick, 18-Channel, FASSTest 2.4 GHz System with R7208SB Receiver

Features:

  • FASSTEST SYSTEM: The Futaba 16IZS transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.
  • S.BUS2 SYSTEM: By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
  • USB SIMULATOR CONTROL: The T16IZS offers USB C compatibility for simulator control when used with Windows OS Joystick function.
  • COLOR TOUCH SCREEN LCD: T16IZS has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
  • MULTI HOLDER: T16IZS Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.
  • Voice Telemetry: The Futaba T16IZS transmitter allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.
  • SECURE DATA (SD CARD): Model data files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZS.
  • HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH): The high capacity 2S Lithium Polymer battery gives you extended flight time.
  • EDITING: The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.
  • FUNCTIONS: The internal processor the response time. Most of the mixing functions are operated by curves which give you very precise settings.
  • STICK: Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.
  • VIBRATION FUNCTION: Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.
  • R7208SB: The system comes with the R7208SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.

Includes:

  • T16IZS Transmitter (Air Version includes ratcheting throttle, Helicopter Version includes smooth throttle)
  • R7208SB Receiver
  • LT2F2000B Lithium Polymer Battery and USB cable for charging
  • Neck Strap
  • Manual (Printed short version, full version can be found online)

16IZS Specifications:

  • TRANSMITTER FREQUENCY: 2.4 GHz band
  • OPERATING SYSTEM: 2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System
  • POWER SUPPLY: 7.4 V LT2F2000B Lithium-polymer battery
  • RF POWER OUTPUT: 100 mW EIRP

R7208SB Specifications:

  • SIZE: 24.9 x 47.3 x 14.3 mm/0.98 x 1.86 x 0.56 in
  • WEIGHT: 12.0 g/0.42 oz
  • POWER REQUIREMENTS: 6.6 V LiFe Battery
  • CURRENT DRAIN: 75 mA
  • RF POWER OUTPUT: 25 mW EIRP
